Product Details:
|
| Brand: | Huawei | Model: | NE05E-SE (NECM00HSDN00) |
|---|---|---|---|
| Part Number: | 02350DYR | Interfaces Ports: | 2 X 10 GE + 16 GE/FE(O) + 8 X GE/FE(E) |
| Forwarding Capability: | 37.2 Mpps | Condition: | New With 1Year Warranty |
| High Light: | cisco network router,cisco modular router |
||

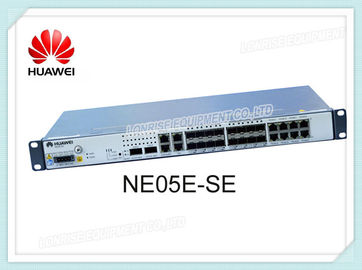

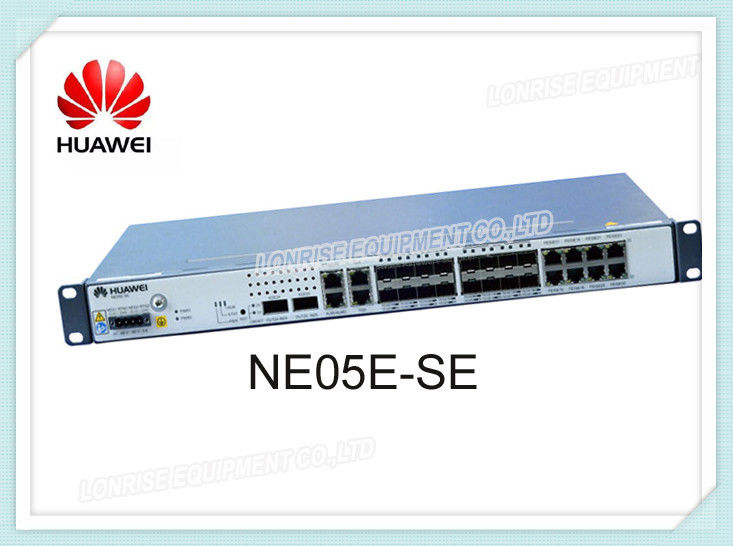

Huawei NetEngine Series NE05E Router NECM00HSDN00 NE05E-SE
Huawei NetEngine series Mid-range Service router NECM00HSDN00 NE05E-SE delivers 44Gbps System capacity,2 * 10Gigabit Ethernet XFP ports,16 * GE/FE optical prots,8 * Gigabit Ethernet ports. NetEngine05E series router is cloud service architecture design oriented, large cache to ensure the best service experience and to help transportation, finance, power, government, education, enterprise to build agile networks, which can be flexibly applied to IP/MPLS network edge access scenarios and meet the diverse needs of users for future business development.
The NE05E router supports innovative IP hard pipe technology, providing high-quality IP leased line solutions through hardware strict isolation to ensure that bandwidth of hard pipe is not to be seize, to achieve rigid pipe similar to SDH, while using detection technology to achieve flow level service quality perceived through the network and traffic provides graphical display, real-time monitoring of business operating conditions, IP line service can be controllable, manageable and visible.
| NECM00HSDN00 Specification | |
| Forwarding Capacity (IPv4/IPv6) | 88 Gbit/s |
| Forwarding Capability (IMIX) | 37.2 Mpps |
| Interfaces | SE: 2 x 10 GE + 16 GE/FE(O) + 8 x GE/FE(E) |
| Clock | 1588 V2, ACR, E1 line clock, and sync clock |
| Power COM | SE: 49.8W |
| Voltage | -38.4V to -72V DC |
| 100V to 240V AC | |
| Slots | 0 |
| Dimensions (H x W x D) | 44.45 mm x 442 mm x 220 mm (1U) |
| Weight | 3 kg |
| Operating Temperature | -40°C to 65°C |
| Humidity | 5% RH to 95% RH, non-condensing |
shows the comparison between NECM00HSDN00 and NECM00HOST06
| Model | NECM00HSDN00 | NECM00HOST06 |
| Forwarding Capacity | 88 Gbit/s | 24 Gbit/s |
| Forwarding Capability (IMIX) | 37.2 Mpps | 17.85 Mpps |
| Interfaces | SE: 2 x 10 GE + 16 GE/FE(O) + 8 x GE/FE(E) | 10 GE/GE/FE, Smart E1/T1, Channelize STM-1, |
| SF: 2 x 10 GE + 8 GE/FE(O) + 8 x GE/FE(E) + 2 x 8 E1 | GPON, XDSL, RS232, RS485, FXO, FSO, E&M, and X.21/V.35/X.24, etc. | |
| Slots | none | 1 MPU |
| 2 FICs | ||
| Weight | 3 kg | 4.8 kg |
| Dimensions (W x D x H) | 44.45 mm x 442 mm x 220 mm (1U) | 44.45 mm x 442 mm x 220 mm (1U) |
FAQ
1. Where do your products come from?
All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.
2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.
3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
