Product Details:
|
| Brand: | HUAWEI | Model: | AR0M0036SA00 |
|---|---|---|---|
| Service And Router Units (SRUs): | SRU40 | Flash: | 16 MB |
| Memory: | 2GB-4GB | Hard Disk: | None |
| High Light: | cisco ethernet router,cisco network router |
||

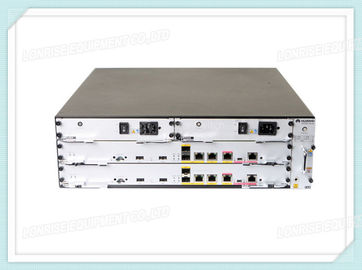

AR0M0036SA00 Huawei AR3260.Service and Router Unit 40.4 SIC.2 WSIC.4 XSIC.350W AC Power
AR3260,Service and Router Unit 40,4 SIC,2 WSIC,4 XSIC,350W AC Power
AR0M0036SA00 Specifications |
|
| Type | AR3260, Service and Router Unit 40, 4 SIC, 2 WSIC, 4 XSIC, 350W AC Power |
| Software Version | V200R001C00 and later |
| Dimensions (W x D x H) | 442.0 mm x 470.0 mm x 130.5 mm |
| Memory |
Configured with SRU40/SRU60/SRU80/SRU100: 2 GB Configured with SRU200: 4 GB |
| Flash | 16 MB |
| Hard disk | None |
| Service and Router Unit (SRU) | Supported |
| Network data encryption (SM1/2/3/4) card | Supported |
| Management interface | Supported |
| Console interface (RJ45) | Supported |
| Console interface (Mini USB) | Supported |
| USB 2.0 interface (host) | Supported |
| USB 2.0 interface (OTG) | None |
| Micro SD card (default) | Supported (2 GB) |
| Antenna interfaces | None |
| Service interfaces (standard configuration) |
WAN interfaces: Configured with SRU40/SRU60/SRU80/SRU100: 1 GE electrical interface and 2 GE combo interfaces Configured with SRU200: 2 10 GE optical interfaces and 4 GE combo interfaces LAN interfaces: none |
| Interface number | LAN interfaces: none |
| Extended slots | 4 SIC slots, 2 WSIC slots, and 4 XSIC slots |
| Power module type | Pluggable power module |
| Rated voltage range |
100 V AC/240 V AC, 50 Hz/60 Hz -48 V DC/-60 V DC |
| Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz -38.4 V DC to -72 V DC |
| RPS150 | Not supported |
| PoE | Not supported |
| Maximum PoE power for PDs | None |
| PoE+ interfaces | None |
| Weight | 11 kg (24.2 lb) |
| Mounting brackets | Standard configuration |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating altitude | 0-4000 m (0-13123 ft.) |
| Fan type | Pluggable fan module |
| Heat dissipation mode | Forcible air cooling |
| Installation mode | Rack mounting |
Shows the recommended supported cards of AR0M0036SA00.
| Models | Description |
| SRU control unit | |
| AR-SRU200 | Huawei AR G3 AR3200 Series Integrated Enterprise Router Service Unit AR-SRU200 with 4.5 Gbit/s WAN Speed |
| Ethernet LAN interface card | |
| AR-4ES2G-S | Huawei AR-4ES2G-S 4-Port 1000BASE-RJ45 L2 Ethernet Interface Card(SIC) |
| AR-9ES2-W | 8 Port 100M-RJ45 and 1 Port 1000M- RJ45 L2 Ethernet Interface Card |
| AR01WEG4SB | 4-Port 1000BASE-SFP-L2 Ethernet Interface Card |
| AR0MWMF9TT00 | 8-Port 10/100BASE(RJ45) and 1-Port 10/100/1000BASE(RJ45)-L3 Ethernet Switch Interface Card |
| AR0MXEGFTA00 | 24-Port 10/100/1000BASE(RJ45)-L2/L3 Ethernet Switch Interface Card |
| Voice service card | |
| AR-1VE1-S | 1-Port VE1 Interface card |
| AR01SVB4XA | 4-Port FXO Voice Interface Card |
| WAN interface card | |
| AR-1CSTM1-W | 1-Port 155M Channelized Packet over SDH/Sonet Interface Card(WSIC) |
| AR-1E3T3M-W | 1-Port Channelized/Unchannelized E3/T3 WAN Interface Card |
| xDSL interface card | |
| AR01SLV1XA | 1-Port VDSL2 over POTS WAN Interface Module |
| AR0MSLA1XA01 | 1-Port ADSL2+ ANNEX A/M WAN Interface Module |
| xPDN interface card | |
| AR0MSOPP2A00 | 1-Port GPON/EPON Dual-mode Interface Card |
