Product Details:
|
| Model: | S5710-52C-PWR-EI | Ports: | 48 X PoE+ 10/100/1000BASE-T Ports |
|---|---|---|---|
| Uplink: | 4 X 10GE SFP+ Ports | Part Number: | 02355886 |
| Shipment: | DHL,UPS,TNE And By Air | Condition: | New Original With 1 Year Replacement Warranty |
| High Light: | gigabit network switch,huawei ethernet switches |
||
Huawei Switch S5710-52C-PWR-EI 48x10/100/1000 PoE+ Ports.4x10 Gig SFP+
S5710-52C-PWR-EI Overview
S5710-52C-PWR-EI(48 Ethernet 10/100/1000 PoE+ ports.4 10 Gig SFP+.with 2 interface slots.without power module)
Technical specifications
|
Item |
Description |
|---|---|
| Memory (RAM) | 512 MB |
| Flash | 200 MB |
| Mean time between failures (MTBF) | 36.86 years when an 8-port GE optical card is configured, 36.35 years when an 8-port GE electrical card is configured, 35.27 years when a 2-port 10GE interface card is configured |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±1 kV |
| Power supply surge protection |
|
| Dimensions (H x W x D) |
44.4 mm x 442.0 mm x 420.0 mm (1.75 in. x 17.4 in. x 16.5 in.) When 1150 W power modules are installed, they stretch out from the chassis. Therefore, the total depth of the switch changes to 507.3 mm (19.97 in.). |
| Weight |
|
| Stack ports | Four fixed 10GE SFP+ ports on the front panel or ports on the 2-port 10GE rear card |
| RPS | Not supported |
| PoE | Supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum power consumption (100% throughput, 100% PoE loads, full speed of fans) |
Using two 580 W power modules
Using two 1150 W power modules
|
| Operating temperature |
0°C to 50°C (32°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 60 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification |
|
| Part number | 02355886 |

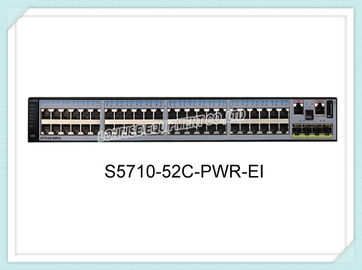

S5710-52C-PWR-EI appearance
| 1 | Forty-eight PoE+ 10/100/1000BASE-T ports | 2 | Four 10GE SFP+ ports
Applicable modules and cables:
|
| 3 | One ETH management port | 4 | One mini USB port |
| 5 | One console port | 6 | One USB port |
| 7 | Ground screw | 8 | Rear card slot 1 |
| 9 | Rear card slot 2 | 10 | ESN label |
| 11 | Power module slot 2 | 12 | Power module slot 1 |
