Cisco C1200-24FP-4G Specifications

Specifications should be verified against the latest manufacturer documentation and the exact hardware revision before ordering.

Overview

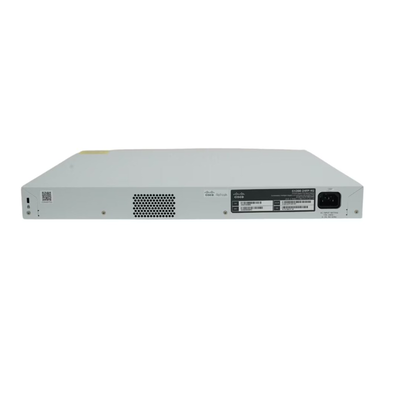

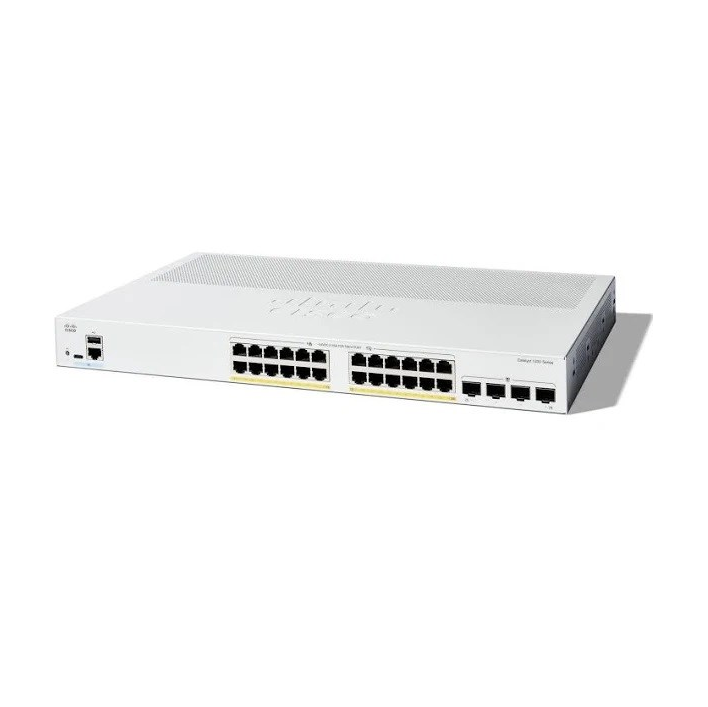

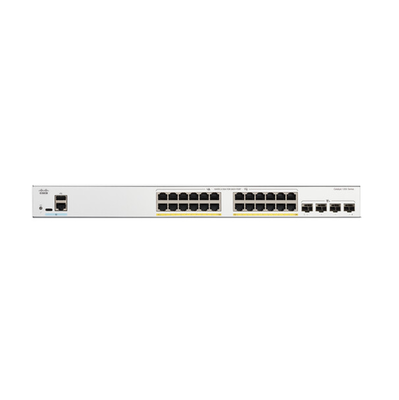

The Cisco C1200-24FP-4G is a managed Gigabit Ethernet PoE+ switch designed for small and medium-sized business networks that require reliable connectivity and a high PoE power budget. It provides 24 * 10/100/1000 Gigabit Ethernet PoE+ ports and 4 * Gigabit SFP uplinks, making it suitable for connecting IP phones, wireless access points, security cameras, access-control devices and other powered network endpoints.

With a 375W PoE budget, the C1200-24FP-4G provides substantially more PoE capacity than the C1200-24P-4G while maintaining the same 24-port Gigabit access and 4-port Gigabit SFP uplink configuration. Cisco specifies support for IEEE 802.3af and 802.3at PoE/PoE+, with up to 30W available to an individual Gigabit Ethernet port within the overall PoE budget.

The switch offers a 56 Gbps switching capacity and approximately 41.67 Mpps forwarding rate, supporting wire-speed switching for typical business access-layer deployments.

The C1200-24FP-4G also supports VLANs, spanning-tree protocols, ACLs, QoS, LLDP/LLDP-MED and IPv4/IPv6 static routing features, providing a practical foundation for managed enterprise and SMB networks.

Key Features and Benefits

1. 24 Gigabit PoE+ Ports

The C1200-24FP-4G provides 24 Gigabit RJ45 ports with PoE+ support. This allows network connectivity and power delivery through a single Ethernet cable, reducing the need for separate power adapters and simplifying installation.

It is particularly suitable for:

• IP surveillance cameras
• Wireless access points
• VoIP phones
• Access-control systems
• IoT devices
• Network sensors
• Other PoE-enabled endpoints

2. 375W PoE Budget

The 375W PoE budget is one of the key differences between the C1200-24FP-4G and the standard C1200-24P-4G.

For networks with a larger number of PoE devices, the higher power budget provides greater deployment flexibility and helps accommodate devices with higher power requirements. Cisco lists 375W for the C1200-24FP-4G and 195W for the C1200-24P-4G.

3. Four Gigabit SFP Uplinks

Four dedicated Gigabit SFP interfaces provide flexible fiber or copper uplink connectivity. They can be used to connect the access switch to a core switch, aggregation switch, server, or fiber-based network infrastructure.

4. Managed Network Features

The switch supports a range of Layer 2 and basic Layer 3 features, including VLAN, STP/RSTP/MSTP, QoS, ACL and static routing capabilities.

These functions allow network administrators to segment traffic, prioritize business-critical applications and improve network control.

5. Designed for Business Access Networks

The C1200-24FP-4G is well suited to branch offices, retail stores, schools, hotels, warehouses, surveillance networks and SMB environments where both Gigabit connectivity and PoE are required.

C1200-24FP-4G vs C1200-24P-4G

Which one should you choose?

Choose the C1200-24FP-4G when your network requires more total PoE power or you expect to connect a larger number of power-hungry PoE devices. Choose the C1200-24P-4G when 195W of PoE capacity is sufficient and a lower power budget is preferred. Cisco's official specifications list 375W for the 24FP model and 195W for the 24P model.

C1200-24FP-4G vs C1200-24FP-4X

The C1200-24FP-4G and C1200-24FP-4X both provide 24 PoE+ access ports and a 375W-class PoE budget, but their uplink capabilities differ.

The C1200-24FP-4G uses 4 * Gigabit SFP uplinks, while the C1200-24FP-4X provides 4 * 10 Gigabit SFP+ uplinks.

Therefore:

• Select C1200-24FP-4G for standard 1G uplink environments.
• Select C1200-24FP-4X when 10G uplink bandwidth is required.
• For a new network with heavy aggregation traffic, consider whether 10G uplinks provide better long-term scalability.

Recommended Applications

IP Surveillance

Connect PoE security cameras directly to the switch while using the SFP uplinks to connect the surveillance access network to the core or aggregation layer.

Wireless Networks

Power compatible wireless access points through PoE+ without installing a separate power outlet for each access point.

VoIP Networks

Deploy IP phones using a single Ethernet cable for both data connectivity and power.

Branch Offices

Use the 24 Gigabit PoE+ ports for employee devices, phones, cameras and wireless access points while using the SFP ports for uplinks to the central network.

Retail and Hospitality

The switch can consolidate connectivity for POS systems, wireless APs, IP cameras, access-control devices and other networked equipment.

FAQ

Q1: What is the Cisco C1200-24FP-4G?

The Cisco C1200-24FP-4G is a managed Gigabit PoE+ switch in the Cisco Catalyst 1200 Series. It provides 24 Gigabit PoE+ RJ45 ports and 4 Gigabit SFP uplinks.

Q2: How much PoE power does the C1200-24FP-4G provide?

The C1200-24FP-4G has a 375W total PoE budget. Cisco specifies up to 30W to an individual Gigabit Ethernet port, subject to the total available PoE budget.

Q3: Does C1200-24FP-4G support PoE+?

Yes. It supports IEEE 802.3af and IEEE 802.3at PoE/PoE+.

Q4: How many SFP ports does C1200-24FP-4G have?

It has 4 Gigabit SFP uplink ports. The SFP interfaces can be used for fiber-based or compatible copper uplink connectivity.

Q5: Is C1200-24FP-4G suitable for IP cameras?

Yes. Its 24 PoE+ ports and 375W total PoE budget make it suitable for many IP surveillance deployments. The actual number of cameras supported depends on the power consumption and network bandwidth requirements of the cameras.

Q6: What is the difference between C1200-24FP-4G and C1200-24P-4G?

The primary difference is the PoE budget. The C1200-24FP-4G provides 375W, while the C1200-24P-4G provides 195W. Both models have 24 Gigabit PoE+ ports and 4 Gigabit SFP uplinks.

Q7: Does C1200-24FP-4G support 10G SFP+?

No. The C1200-24FP-4G has 4 * Gigabit SFP uplinks. If you need 10G uplinks, consider a Catalyst 1200 model with 4 * 10G SFP+ uplinks, such as the C1200-24FP-4X.

Q8: Is C1200-24FP-4G suitable for SMB networks?

Yes. Its 24 Gigabit PoE+ access ports, four SFP uplinks and managed networking capabilities make it a practical choice for SMBs, branch offices, retail, education, hospitality and similar environments.

Q9: Can you help confirm compatibility before purchase?

Yes. Before ordering, customers can provide their existing switch model, SFP/transceiver model, PoE devices, uplink distance and network requirements. A compatibility check can help reduce deployment risks.

Q10: What after-sales support is available?

After-sales support should cover order verification, product compatibility assistance, troubleshooting and warranty coordination according to the seller's stated terms. Customers should confirm warranty duration, replacement conditions and technical support scope before placing an order.
