Quick Specs
| Specification |
Description |
| Product Model |
Cisco C1200-8T-D |
| Product Series |
Cisco Catalyst 1200 Series |
| Switch Type |
Managed Gigabit Ethernet Switch |
| Downlink Ports |
8 * 10/100/1000 RJ45 Gigabit Ethernet |
| PoE Feature |
1 * PoE input port (802.3af PD) |
| Switching Capacity |
16 Gbps |
| Forwarding Rate |
11.90 Mpps |
| Layer Support |
Layer 2 / Basic Layer 3 Features |
| Management |
Web UI, Cisco Business Dashboard, Mobile App |
| CPU |
Dual-Core ARM 1.4 GHz |
| Memory |
1GB DDR4 RAM / 512MB Flash |
| Cooling |
Fanless Design |
| Power Supply |
External Power Adapter |
| Dimensions |
160 * 128 * 30 mm |
| Application |
SMB, SOHO, Branch Office, Edge Network |
Source specifications based on Cisco Catalyst 1200 Series documentation.
Technical Specifications
| Category |
Specification |
| Brand |
Cisco |
| Model Number |
C1200-8T-D |
| Device Type |
Gigabit Managed Switch |
| Ethernet Ports |
8 * Gigabit Ethernet RJ45 |
| Port Speed |
10/100/1000 Mbps |
| Switching Capacity |
16 Gbps |
| Forwarding Performance |
11.90 million packets per second (Mpps) |
| MAC Address Table |
8K entries |
| Packet Buffer |
1.5 MB |
| Jumbo Frame Support |
Up to 9000 Bytes |
| VLAN Support |
802.1Q VLAN |
| Spanning Tree Protocol |
STP / RSTP / MSTP / PVST+ |
| QoS |
Traffic Prioritization and Queue Management |
| Security Features |
ACL, DoS Protection, RADIUS Authentication |
| IPv4/IPv6 Support |
Yes |
| Management Interface |
Web-based GUI |
| Discovery Protocol |
Cisco Discovery Protocol |
| Console Port |
Not Available |
| USB Port |
Not Available |
| Flash Memory |
512 MB |
| DRAM |
1 GB DDR4 |
| CPU |
Dual-Core ARM 1.4 GHz |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-25°C to 70°C |
| Power Consumption |
Approx. 7W |
| Installation Type |
Desktop Installation |
| Fanless |
Yes |
| Weight |
Approx. 0.54 kg |
Product Overview

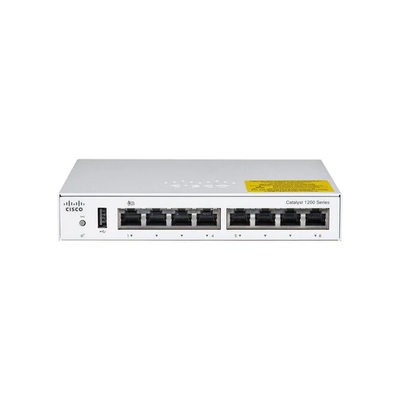

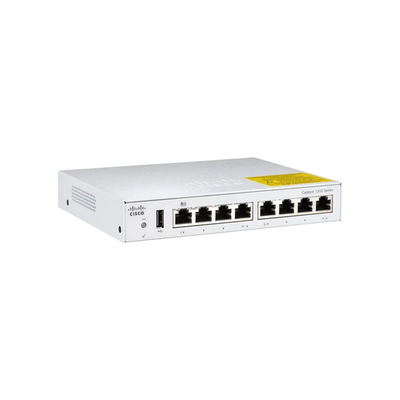

The Cisco C1200-8T-D Catalyst 1200 8-Port Gigabit Managed Switch is a compact and reliable networking solution designed for small businesses, branch offices, retail environments, and edge network deployments. Featuring 8 * Gigabit Ethernet RJ45 ports, this switch delivers high-speed wired connectivity with easy management and enterprise-grade reliability.
Built on the Cisco Catalyst 1200 Series platform, the C1200-8T-D provides essential Layer 2 switching features including VLAN support, Quality of Service (QoS), Spanning Tree Protocol, access control capabilities, and IPv4/IPv6 support. It offers a 16 Gbps switching capacity and 11.9 Mpps forwarding performance, ensuring smooth data transmission for daily business applications such as IP phones, wireless access points, surveillance systems, and office networking devices.
The compact fanless design makes the Cisco C1200-8T-D ideal for noise-sensitive environments such as offices, classrooms, retail stores, and small server rooms. Its low power consumption and desktop-friendly form factor allow organizations to deploy reliable Gigabit connectivity without complex installation requirements.
Compared with unmanaged switches, the Cisco C1200-8T-D managed switch provides better network visibility, traffic control, and security management. It is an excellent upgrade choice for businesses looking for affordable Cisco networking equipment with professional management capabilities.
Key Features & Benefits
1. High-Speed Gigabit Connectivity
The Cisco C1200-8T-D provides eight Gigabit Ethernet ports supporting 10/100/1000 Mbps speeds, allowing businesses to connect computers, servers, printers, cameras, and wireless devices with fast and stable performance.
2. Compact Fanless Design
With a silent fanless architecture, this Cisco managed switch reduces noise and improves reliability, making it suitable for offices and small deployment environments.
3. Easy Network Management
The switch supports intuitive web-based management tools and Cisco Business Dashboard integration, helping administrators configure, monitor, and maintain networks efficiently.
4. Enterprise-Level Security Features
The C1200-8T-D includes security functions such as ACL, authentication support, and DoS protection to help protect business networks from unauthorized access and attacks.
5. Flexible PoE Powered Deployment
Unlike traditional desktop switches, the C1200-8T-D supports PoE input capability, allowing flexible installation scenarios where power availability is limited.
Cisco C1200-8T-D vs Other Cisco Switches
| Model |
Ports |
Main Difference |
Recommended Use |
| Cisco C1200-8T-D |
8 * Gigabit RJ45 |
Compact managed switch with PoE input |
Small offices, branches |
| Cisco C1200-8T-E-2G |
8 * Gigabit + 2 combo uplinks |
Adds SFP/RJ45 uplink flexibility |
Networks requiring fiber uplinks |
| Cisco C1200-8P-E-2G |
8 * Gigabit PoE+ |
Supports powered devices |
IP phones, APs, cameras |
| Cisco CBS350-8T |
8 * Gigabit |
Previous business switch generation |
SMB network upgrades |
Which Cisco switch should I choose?
- Choose C1200-8T-D if you need a simple, compact, managed Gigabit switch for desktop or branch connectivity.
- Choose C1200-8P-E-2G if you need PoE power for wireless access points, IP cameras, or VoIP phones.
- Choose a model with SFP uplinks if your network requires fiber connections.
FAQ
Q1: What is Cisco C1200-8T-D used for?
The Cisco C1200-8T-D is designed for small business networks, branch offices, retail stores, and edge deployments requiring reliable Gigabit Ethernet connectivity with managed switching features.
Q2: Is Cisco C1200-8T-D a managed switch?
Yes. The C1200-8T-D is a managed Gigabit Ethernet switch supporting VLAN configuration, QoS, security policies, and network monitoring functions.
Q3: Does Cisco C1200-8T-D support PoE?
Yes. The C1200-8T-D supports PoE input (802.3af PD) on port 1, allowing flexible deployment where external power options are limited.
Q4: What is the difference between Cisco C1200-8T-D and C1200-8P-E-2G?
The main difference is PoE capability:
- C1200-8T-D: Standard Gigabit Ethernet ports with PoE input capability.
- C1200-8P-E-2G: Provides 8 PoE+ ports with a 67W PoE budget for powering network devices.
Choose C1200-8P-E-2G for IP cameras, phones, and wireless access points.
Q5: Does Lonrise provide warranty and technical support for Cisco C1200-8T-D?
Yes. Lonrise provides product quality assurance, compatibility verification, professional technical support, and after-sales assistance for Cisco networking products. Customers can receive help with product selection, configuration guidance, and replacement services.
Q6: Why buy Cisco C1200-8T-D from Lonrise?
- Original Cisco networking equipment supply
- Competitive pricing for global customers
- Fast delivery from available inventory
- Professional pre-sales and after-sales technical support
- One-stop procurement solution for switches, routers, and optical networking products
