Overview

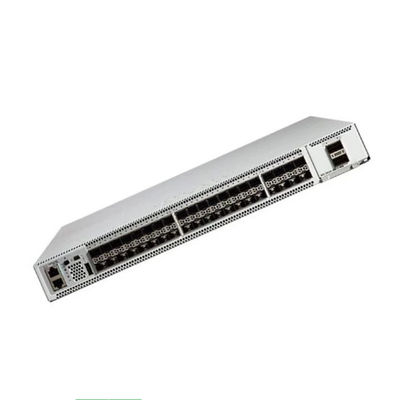

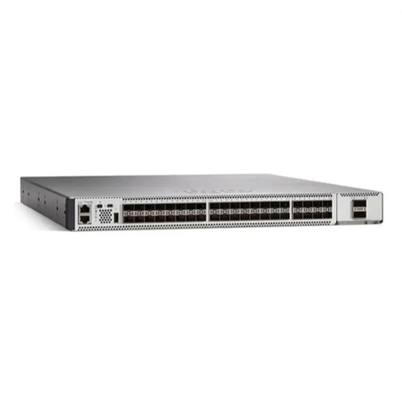

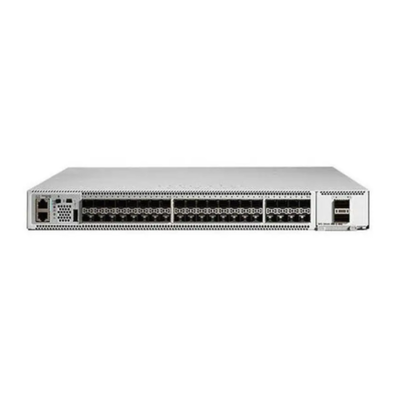

The Cisco C9500-40X-E is a high-performance enterprise-class aggregation and core switch designed for modern campus and data center environments. As part of the Cisco Catalyst 9500 Series, this model delivers advanced Layer 2 and Layer 3 functionality, enterprise security, automation capabilities, and high-density 10 Gigabit connectivity for demanding network infrastructures.
Built on Cisco’s powerful x86 architecture and optimized for cloud networking, IoT, and enterprise digital transformation, the C9500-40X-E provides exceptional scalability, reliability, and operational efficiency for medium to large enterprise deployments.
Key Features of Cisco C9500-40X-E
- 40 × 10 Gigabit SFP+ ports
- Enterprise-grade aggregation and core switching
- Up to 1920 Gbps switching capacity
- Up to 1440 Mpps forwarding performance
- Advanced Layer 3 routing support
- Cisco IOS XE operating system
- StackWise Virtual support for redundancy
- MACsec encryption and secure boot
- Automation and programmability support
- Dual hot-swappable power supply support
- Enterprise Network Essentials license included
Quick Specifications
| Specification |
Details |
| Model |
C9500-40X-E |
| Product Series |
Cisco Catalyst 9500 |
| Ports |
40 × 10G SFP+ |
| Switching Capacity |
Up to 1920 Gbps |
| Forwarding Rate |
Up to 1440 Mpps |
| DRAM |
16 GB |
| Flash Memory |
16 GB |
| Jumbo Frame |
9198 Bytes |
| VLAN IDs |
4000 |
| Power Consumption |
850W Max |
| Form Factor |
1RU |
| License |
Network Essentials |
| Deployment |
Core / Aggregation Layer |
Why Choose Cisco Catalyst 9500 Series?
The Cisco Catalyst 9500 Series is engineered for enterprises requiring secure, scalable, and automation-ready networking infrastructure. Compared with traditional campus switches, the Catalyst 9500 platform offers:
- Higher throughput and lower latency
- Enhanced security with encrypted traffic analytics
- Programmable APIs for network automation
- Better scalability for cloud-driven applications
- Simplified management and software-defined networking integration
These advantages make the C9500-40X-E ideal for:
- Enterprise campus core networks
- Large-scale aggregation deployments
- High-density 10G environments
- Data center interconnect
- Government and education networks
- Financial and healthcare infrastructures
Cisco C9500-40X-E vs C9500-40X-A
| Feature |
C9500-40X-E |
C9500-40X-A |
| License Type |
Network Essentials |
Network Advantage |
| Layer 3 Features |
Standard Enterprise Routing |
Advanced Routing Features |
| Automation Features |
Basic |
Advanced |
| SD-Access Support |
Limited |
Full Support |
| Target Deployment |
Enterprise Access/Core |
Large Enterprise/Data Center |
Which Model Should You Choose?
Choose the C9500-40X-E if you need:
- Reliable enterprise core switching
- Standard Layer 3 functionality
- Cost-effective campus aggregation
Choose the C9500-40X-A if you require:
- Advanced SD-Access capabilities
- Full enterprise automation
- Enhanced routing scalability
Benefits for Enterprise Networks
High-Density 10G Connectivity
With 40 dedicated 10G SFP+ ports, the switch supports bandwidth-intensive enterprise applications, virtualization, and high-speed uplinks.
Enterprise-Class Reliability
Support for StackWise Virtual and redundant power supplies ensures maximum uptime and business continuity.
Secure Network Architecture
Cisco security technologies including secure boot and MACsec help protect enterprise traffic and infrastructure.
Automation Ready
Cisco IOS XE enables API-driven automation and simplified network orchestration for modern IT operations.
FAQ
What is the Cisco C9500-40X-E used for?
The C9500-40X-E is primarily used as an enterprise campus core switch or aggregation switch in medium and large business networks.
Does the C9500-40X-E support Layer 3 routing?
Yes. The switch supports advanced Layer 2 and Layer 3 enterprise routing features under the Network Essentials license.
How many 10G ports does the C9500-40X-E provide?
The switch includes 40 × 10 Gigabit SFP+ ports for high-density fiber connectivity.
What is the difference between Network Essentials and Network Advantage?
Network Essentials provides standard enterprise routing and switching functions, while Network Advantage unlocks advanced automation, segmentation, and routing features.
Is the Cisco C9500-40X-E suitable for data centers?
Yes. Its high throughput, low latency, and redundancy capabilities make it suitable for enterprise data center aggregation deployments.
Does the switch support StackWise Virtual?
Yes. StackWise Virtual enables two physical switches to operate as a single logical unit for redundancy and simplified management.
Does the C9500-40X-E support jumbo frames?
Yes. The switch supports jumbo frames up to 9198 bytes, which is useful for virtualization and storage traffic optimization.
