SFP-10G-CU1M, Huawei SFP+ High Speed Direct-attach Cable, 10G, 1m, Indoor Use

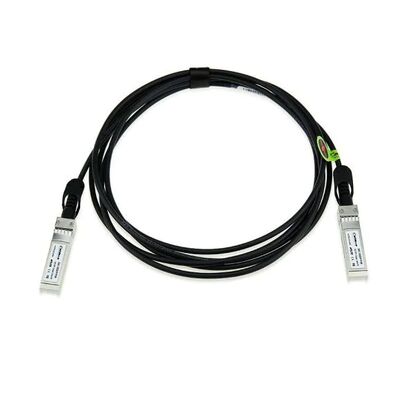

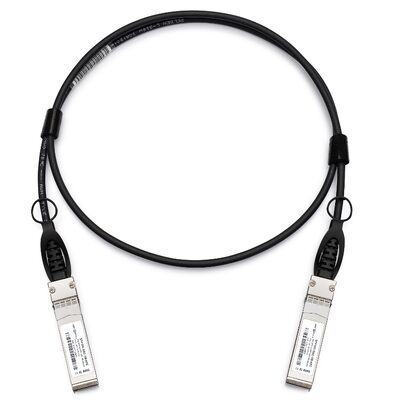

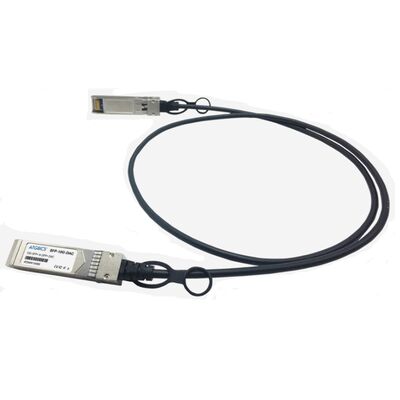

Large Image : SFP-10G-CU1M, Huawei SFP+ High Speed Direct-attach Cable, 10G, 1m, Indoor Use

Product Details:

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	CE
Model Number:	SFP-10G-CU1M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

SFP-10G-CU1M, Huawei SFP+ High Speed Direct-attach Cable, 10G, 1m, Indoor Use

Description

Product Name:	SFP Optical Transceiver	Part Number:	SFP-10G-CU1M
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	SFP-10G-CU1M
Highlight:	Huawei SFP+ direct-attach cable 10G , 1m SFP+ high speed cable indoor , Huawei SFP module with warranty

HUAWEI SFP-10G-CU1M Overview

Huawei SFP-10G-CU1M is the compatible 10G SFP+ 1M passive direct attach copper TWINAX cable.

Figure 1 shows the front panel of SFP-10G-CU1M.

Quick Specs

Table 1 shows the Quick Specs.

Model	SFP-10G-CU1M
Form Factor	SFP+ DAC Cable
Passive or actively equalized	Passive
Cable Length	1m
CableType	Twinax
Minimum cable bend radius	25 mm
Connector	SFP+/SFP+

Product Details

SFP-10G-CU1M provides these features:

lower cost than SFP+ optical transceiver and active optical cable (AOC)
Support for multi-gigabit data rates up to 10.5Gbps
Support for 1x, 2x, 4x and 8x Fibre Channel data rates
Hot-pluggable SFP 20PIN footprint
I/O Connector designed for high-speed differential signal applications
Improved Pluggable Form Factor (IPF) compliant for enhanced EMI/EMC performance
Single 3.3V power supply
Compatible to SFP+ MSA
Operating temperature range: 0°C to 70°C
RoHS Compliant and Lead-Free

Huawei SFP-10G-CU1M Specification

Huawei SFP-10G-CU1M Specification
Form Factor	SFP+ DAC Cable
Passive or actively equalized	Passive
Cable Length	1 m
Cable Type	Twinax
Minimum cable bend radius	25 mm
Connector	SFP+/SFP+
Environment	Operating: 0°C to 70°C Storage: -40°C to 85°C
Application	Storage Area Networks( SAN) Network Attached Storage The switched fabric I/O High-density connections between networking equipment Data center cabling infrastructure
Data Rate	10.5Gb/s
Supply Voltage	3.3V
Cable impedance	100 Ω
Wire Gauge	30AWG
Cable Jacket Type	PVC
Digital Diagnostic Monitoring	N/A
Compliance	SFF-8472,SFF-8431 IEC/EN 61000-4-2 MIL-STD -883E, RoHS
