Summary
The Huawei OSN010N24 is a high-performance 100G QSFP28 optical transceiver module designed for long-distance data transmission up to 10km over single-mode fiber (SMF). Operating at a 1310nm wavelength, it supports a 100Gbps data rate and uses an LC duplex connector for stable, efficient, and low-latency optical communication.
This module is fully compliant with IEEE 802.3ba 100GBASE-LR4 standards and is widely deployed in data center interconnect (DCI), enterprise backbone networks, and telecom infrastructures requiring high bandwidth and reliable long-haul transmission.
With its QSFP28 hot-pluggable form factor, the OSN010N24 ensures easy installation and maintenance. It also features low power consumption and Digital Diagnostic Monitoring (DDM), enabling real-time performance monitoring and improved network stability.
This optical transceiver is an ideal solution for organizations upgrading to 100G network architecture while maintaining cost efficiency, compatibility, and long-term operational reliability.

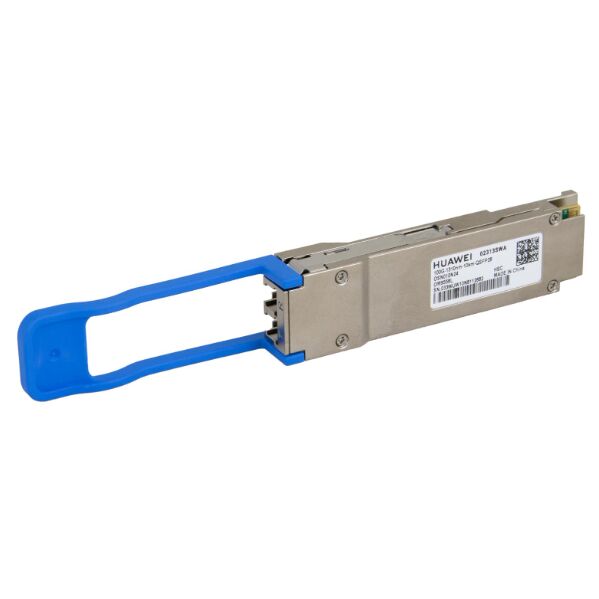

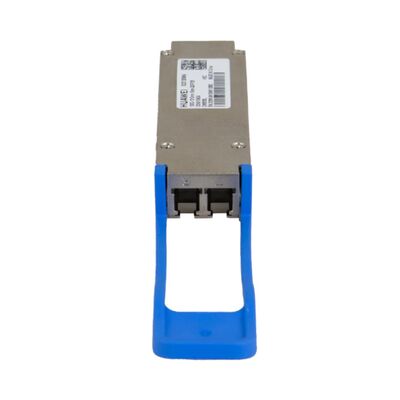

Figure 1 shows the front panel of OSNO10N24.
Product Overview
The Huawei OSN010N24 is a 100G QSFP28 LR4 optical transceiver designed for long-range optical communication systems. It converts 100Gbps electrical signals into optical signals for transmission over single-mode fiber up to 10km.
Key characteristics include:
- 100Gbps transmission rate
- 1310nm wavelength operation
- Up to 10km transmission distance
- LC duplex interface
- QSFP28 hot-pluggable design
- Low power consumption
- High stability and reliability
It is widely used in telecom networks, data centers, and enterprise backbone infrastructure.
Key Features
- 100G high-speed transmission based on 4×25G lanes
- Long reach capability up to 10km over SMF
- QSFP28 form factor with hot-pluggable design
- LC duplex optical interface
- Compliant with IEEE 802.3ba 100GBASE-LR4 standard
- Low power consumption for energy-efficient operation
- Built-in Digital Diagnostic Monitoring (DDM)
- High signal integrity and stable performance
Technical Specifications
| Parameter |
Specification |
| Model |
OSN010N24 |
| Form Factor |
QSFP28 |
| Data Rate |
100Gbps |
| Wavelength |
1310nm |
| Max Distance |
10km |
| Fiber Type |
Single-mode fiber (SMF) |
| Connector |
LC Duplex |
| Modulation |
NRZ |
| Power Consumption |
Low power design |
| DDM |
Supported |
| Standard |
IEEE 802.3ba 100GBASE-LR4 |
| Application |
DCI / Telecom / Enterprise Core Networks |
Applications
- Data Center Interconnect (DCI)
- Enterprise backbone networks
- Metro Ethernet networks
- Cloud infrastructure
- Telecom transmission systems
- High-bandwidth core switching networks
Compatibility
The OSN010N24 is designed for Huawei networking equipment supporting QSFP28 interfaces. It is also compatible with many third-party platforms that follow IEEE 100G standards, ensuring flexible deployment across mixed network environments.
Product Comparison
| Feature |
OSN010N24 (LR4 10km) |
100G SR4 Module |
| Transmission Distance |
Up to 10km |
Up to 100m |
| Fiber Type |
Single-mode (SMF) |
Multi-mode (MMF) |
| Connector |
LC Duplex |
MPO |
| Use Case |
Long-haul / DCI |
Short-reach data center |
| Cost Level |
Higher |
Lower |
Conclusion:
The OSN010N24 is optimized for long-distance backbone and interconnection scenarios, while SR4 modules are better suited for short-range intra-data center links.
FAQ
What is Huawei OSN010N24 used for?
It is used for 100G long-distance optical transmission in telecom networks, data centers, and enterprise backbone systems.
What is the maximum transmission distance?
It supports up to 10km over single-mode fiber (SMF).
Is OSN010N24 compatible with non-Huawei devices?
It is primarily designed for Huawei systems, but it may also work with other platforms supporting standard QSFP28 100G LR4 modules.
What is the difference between LR4 and SR4?
LR4 supports long-distance transmission up to 10km using single-mode fiber, while SR4 is limited to short-range transmission (typically 100m) over multi-mode fiber.
Does this module support DDM?
Yes, it supports Digital Diagnostic Monitoring (DDM) for real-time monitoring of optical performance.
What type of fiber is required?
Single-mode fiber (SMF) with LC duplex connectors is required.
Warranty & Support
- Standard product warranty provided
- Strict quality testing before shipment
- Compatibility testing available upon request
- Technical support for installation and troubleshooting
- Fast replacement service for defective products
- Professional pre-sales and after-sales assistance
