Product Overview
The Huawei SFP-GE-LX-SM1310 optical transceiver is a high-performance 1G SFP module designed for Gigabit Ethernet transmission over single-mode fiber (SMF). Supporting a transmission distance of up to 10km at 1310nm wavelength, this Huawei-compatible SFP module delivers reliable and stable network connectivity for enterprise campus networks, data centers, ISP backbone deployment, and industrial communication systems.
Featuring a compact hot-swappable SFP form factor, the Huawei SFP-GE-LX-SM1310 supports Digital Diagnostic Monitoring (DDM), allowing administrators to monitor optical parameters in real time for improved network maintenance and stability. The module complies with the 1000BASE-LX/LH standard and is widely compatible with Huawei switches and routers.
With low power consumption, high compatibility, and excellent transmission performance, the SFP-GE-LX-SM1310 is an ideal solution for long-distance Gigabit optical networking.

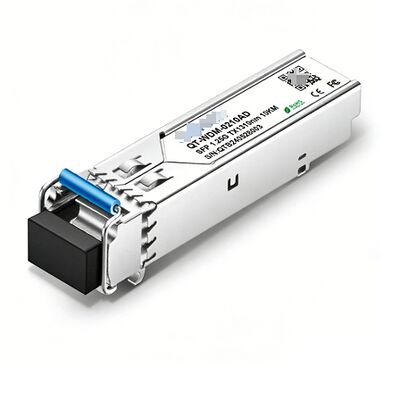

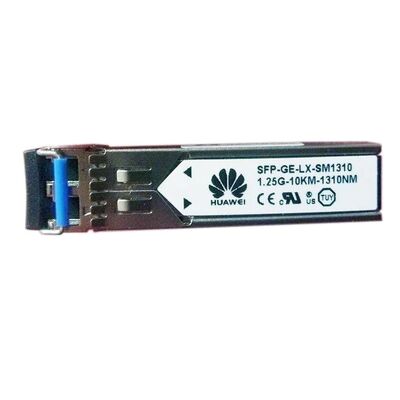

Figure 1 shows the front panel of SFP-GE-LX10-SM1310.
Key Features
- 1.25Gbps Gigabit Ethernet transmission
- 1310nm wavelength for stable SMF communication
- Up to 10km transmission distance
- LC duplex optical interface
- Hot-pluggable SFP form factor
- Supports Digital Diagnostic Monitoring (DDM)
- Low power consumption design
- High compatibility with Huawei networking equipment
- Suitable for enterprise, ISP, and data center networks
Quick Specifications
| Item |
Specification |
| Model |
SFP-GE-LX-SM1310 |
| Form Factor |
SFP/eSFP |
| Data Rate |
1.25Gbps |
| Fiber Type |
Single-Mode Fiber (SMF) |
| Connector |
Duplex LC |
| Wavelength |
1310nm |
| Max Distance |
10km |
| DDM Support |
Yes |
| Operating Temperature |
0°C to 70°C |
| Ethernet Standard |
1000BASE-LX/LH |
Detailed Specifications
| Parameter |
Value |
| Product Name |
Huawei SFP-GE-LX-SM1310 |
| Part Number |
02315200 |
| Optical Interface |
LC Duplex |
| Fiber Standard |
SMF |
| Transmission Speed |
1 Gbit/s |
| Maximum Reach |
10km |
| Center Wavelength |
1310nm |
| Tx Power Range |
-9 dBm to -3 dBm |
| Receiver Sensitivity |
-20 dBm |
| Max Receiver Power |
-3 dBm |
| DDM/DOM |
Supported |
| Hot Swappable |
Yes |
| Application |
Gigabit Ethernet |
| Compliance Standard |
1000BASE-LX10/LH |
Technical specifications are based on Huawei hardware documentation.
Applications
Enterprise Campus Networks
Provides stable Gigabit optical uplink connectivity between access switches and aggregation switches.
Data Centers
Ideal for short-to-medium distance optical interconnects within data center infrastructure.
ISP & Telecom Networks
Suitable for carrier Ethernet and metro access networking applications.
Industrial Communication
Supports stable optical transmission in industrial Ethernet deployments.
Why Choose Huawei SFP-GE-LX-SM1310?
High Compatibility
Fully compatible with Huawei enterprise switches and routers for plug-and-play deployment.
Stable Long-Distance Transmission
1310nm single-mode optical technology ensures reliable 10km Gigabit transmission.
Real-Time Monitoring
DDM functionality enables network administrators to monitor optical performance efficiently.
Cost-Effective Networking
Provides reliable enterprise-grade optical connectivity with reduced deployment costs.
Product Comparison
| Feature |
SFP-GE-LX-SM1310 |
SFP-GE-SX-MM850 |
| Fiber Type |
Single-Mode Fiber |
Multi-Mode Fiber |
| Wavelength |
1310nm |
850nm |
| Transmission Distance |
10km |
550m |
| Connector |
LC Duplex |
LC Duplex |
| Typical Application |
Long-distance links |
Short-distance links |
| Cost Efficiency |
Better for long-range |
Better for short-range |
FAQ
What is the transmission distance of Huawei SFP-GE-LX-SM1310?
The module supports transmission distances up to 10km over single-mode fiber (SMF).
Does this module support DDM monitoring?
Yes. The Huawei SFP-GE-LX-SM1310 supports Digital Diagnostic Monitoring (DDM), enabling real-time optical status monitoring.
Is this module compatible with non-Huawei devices?
The module is optimized for Huawei equipment, but compatibility with third-party devices depends on device firmware and coding support.
What fiber cable should be used?
Single-mode fiber (SMF) with LC connectors is recommended for optimal performance.
Can this module be hot swapped?
Yes. The SFP-GE-LX-SM1310 supports hot-pluggable installation and replacement.
What is the difference between LX and SX optical modules?
LX modules use 1310nm wavelength and support longer distances over SMF, while SX modules typically use 850nm wavelength for shorter MMF connections. Community discussions also confirm LX modules are commonly used for 10km single-mode deployments.
After-Sales Service
- 100% tested before shipment
- Technical support available before and after sales
- Fast global shipping service
- Professional compatibility verification
- Secure packaging protection
- Warranty support for reliable long-term operation
