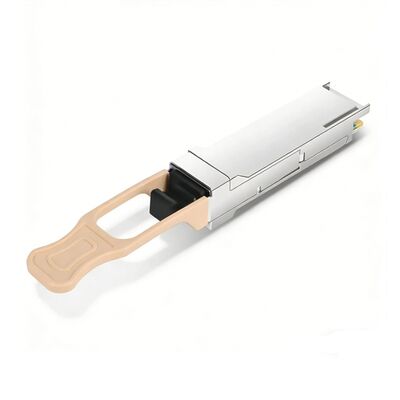

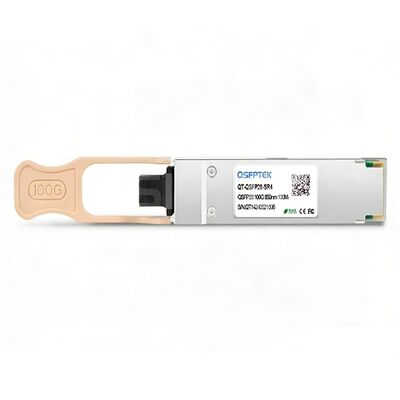

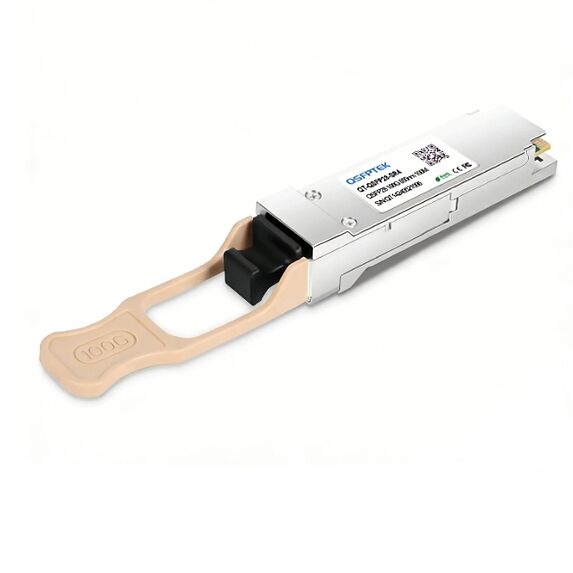

Huawei OMND10N13 (02311NTY) 100GBASE-SR4 QSFP28 850nm 100m MMF Optical Transceiver Module

Large Image : Huawei OMND10N13 (02311NTY) 100GBASE-SR4 QSFP28 850nm 100m MMF Optical Transceiver Module

Product Details:

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	CE
Model Number:	OMND10N13

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

Huawei OMND10N13 (02311NTY) 100GBASE-SR4 QSFP28 850nm 100m MMF Optical Transceiver Module

Description

Product Name:	SFP Optical Transceiver	Part Number:	OMND10N13
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	OMND10N13
Highlight:	Huawei QSFP28 100GBASE-SR4 transceiver , 100G optical transceiver module 850nm , Huawei SFP module with 100m MMF

HUAWEI OMND10N13 Overview

The Huawei OMND10N13 (02311NTY) is a high‑performance 100GBASE‑SR4 QSFP28 optical transceiver designed for short‑reach data center and enterprise networking. It operates at 850 nm over multimode fiber (OM4/OM3), delivering 100 Gbps aggregate bandwidth across four 25 Gbps lanes for distances up to 100 meters.

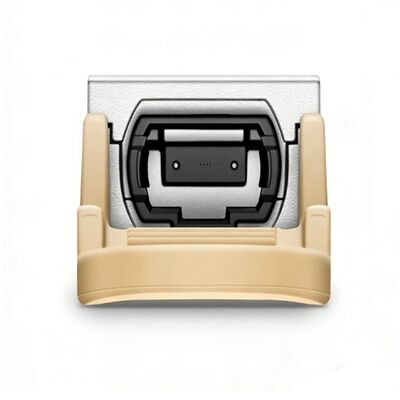

Figure 1 shows the front panel of OMND10N13.

Quick Specs

Parameter	Value
Model	OMND10N13 (02311NTY)
Form Factor	QSFP28
Data Rate	100Gbps (4×25G)
Wavelength	850nm
Reach	100m (OM4/OM3)
Fiber Type	Multimode (MMF)
Interface	MTP/MPO-12
Standard	IEEE 802.3bm, 100GBASE-SR4
DDM	Supported

Full Specification

Parameter	Details
Basic Information
Part Number	02311NTY
Model	OMND10N13
Brand	Huawei
Product Type	High‑Speed Optical Transceiver
Performance
Data Rate	100 Gbps (4‑lane × 25 Gbps)
Wavelength	850 nm
Transmission Distance	100 m (OM4 MMF), 70 m (OM3 MMF)
Transmitter Type	VCSEL
Receiver Type	PIN
Optical Parameters
Tx Optical Power (per lane)	−8.4 dBm to −2.4 dBm
Rx Sensitivity (per lane)	≤ −10.3 dBm
Overload Power	+2.4 dBm
Extinction Ratio	≥ 3 dB
Physical & Electrical
Connector	MTP/MPO‑12 Male
Power Consumption	≤ 2.5 W
Operating Temperature	0°C to +70°C (Commercial)
Standards & Protocols
Compliance	IEEE 802.3bm, QSFP28 MSA, SFF‑8636, SFF‑8665
Digital Diagnostics	DDM (DOM) supported
BER	≤ 1×10⁻¹²
