6ES7532-5HF00-0AB0 Siemens SIMATIC S7-1500 Analog Output Module AQ8xU/I HS

Large Image : 6ES7532-5HF00-0AB0 Siemens SIMATIC S7-1500 Analog Output Module AQ8xU/I HS

Product Details:

Place of Origin:	China
Brand Name:	Siemens
Certification:	CE
Model Number:	6ES7532-5HF00-0AB0

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

6ES7532-5HF00-0AB0 Siemens SIMATIC S7-1500 Analog Output Module AQ8xU/I HS

Description

Product Name:	PLC Industrial Control	Part Number:	6ES7532-5HF00-0AB0
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	WQR12038HBL:	1 Year
Keywords:	6ES7532-5HF00-0AB0
Highlight:	Siemens S7-1500 analog output module , PLC analog output module AQ8xU/I , Siemens SIMATIC industrial control module

Sinamics 6ES7532-5HF00-0AB0 Overview

6ES7532-5HF00-0AB0 is a high-speed, high-precision analog output module designed for the SIMATIC S7-1500 and ET 200MP automation systems. It provides 8 configurable voltage/current outputs with 16-bit resolution and fast 0.125 ms conversion time, supporting high-performance motion and process control applications.

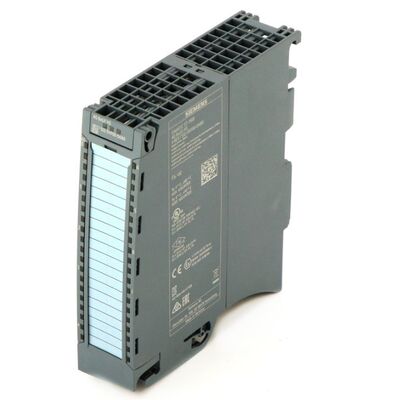

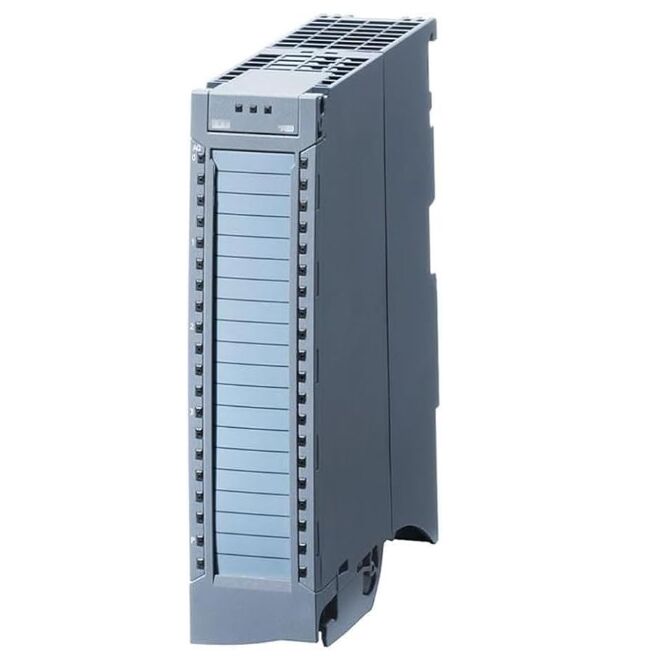

Figure 1 shows the front panel of 6ES7532-5HF00-0AB0.

6ES7532-5HF00-0AB0 Siemens SIMATIC S7-1500 Analog Output Module AQ8xU/I HS 0

6ES7532-5HF00-0AB0 Siemens SIMATIC S7-1500 Analog Output Module AQ8xU/I HS 1

Quick Specs.

Table 1 shows the Quick Specs

Item	Specification
Part Number	6ES7532-5HF00-0AB0
Type	Analog Output Module AQ8xU/I HS
Series	SIMATIC S7-1500 / ET 200MP
Channels	8 analog outputs
Resolution	16-bit
Output	Voltage / Current configurable
Conversion Time	0.125 ms per channel
Isolation	Channel‑backplane isolation
Dimensions	35 × 147 × 129 mm

Detailed Specification

Parameter	Value
Order Number	6ES7532-5HF00-0AB0
Product Type	Analog Output Module, AQ 8xU/I HS
Compatible System	SIMATIC S7-1500, ET 200MP
Number of Analog Outputs	8
Output Signal Types	Voltage: -10…+10 V; Current: 0…20 mA / 4…20 mA
Resolution	16-bit including sign
Basic Accuracy	±0.3% of full scale
Conversion / Update Time	0.125 ms per channel (oversampling)
Output Ripple	±0.02% (0–50 kHz bandwidth)
Linearity Error	±0.15% of full scale
Temperature Drift	±0.002%/K
Crosstalk	≤ -100 dB
Isolation	Channel‑to‑backplane; channel‑to‑load voltage
Diagnostics	Wire-break (current), short-circuit (voltage), supply monitoring, channel status
Safety	Safe shutdown up to SIL2 (IEC 62061), Cat.3 / PL d (ISO 13849-1)
Power Supply	24 V DC (20.4–28.8 V), reverse polarity protection
Operating Temperature	-20 … +60 °C
Dimensions (W×H×D)	35 × 147 × 129 mm
Mounting	DIN rail
