Omron NX1P2-9024DT1 PLC CPU Module 24 I/O 4-Axis Motion Controller

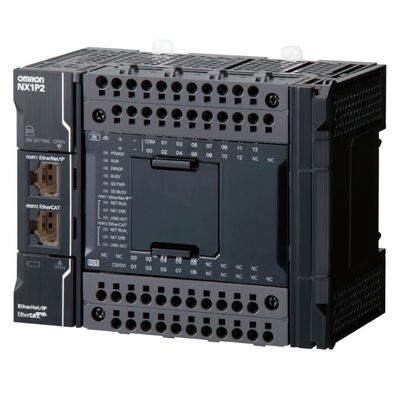

Large Image : Omron NX1P2-9024DT1 PLC CPU Module 24 I/O 4-Axis Motion Controller

Product Details:

Place of Origin:	China
Brand Name:	Siemens
Certification:	CE
Model Number:	NX1P2-9024DT1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

Omron NX1P2-9024DT1 PLC CPU Module 24 I/O 4-Axis Motion Controller

Description

Product Name:	PLC Industrial Control	Part Number:	NX1P2-9024DT1
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	WQR12038HBL:	1 Year
Keywords:	NX1P2-9024DT1
Highlight:	Omron PLC CPU module 24 I/O , PLC motion controller 4-axis , industrial control PLC with warranty

Sinamics NX1P2-9024DT1 Overview

The NX1P2-9024DT1 is a compact Omron Sysmac machine automation controller designed for small‑to‑medium automation equipment. It integrates sequence logic, high‑speed I/O, and motion control in one space‑saving package.

This CPU unit features 14 digital inputs and 10 PNP transistor outputs for direct field connection, plus built‑in EtherCAT and EtherNet/IP for flexible networking and IoT connectivity. It supports 4‑axis point‑to‑point motion control with electronic cam and positioning functions, ideal for packaging, assembly, and material handling machines.

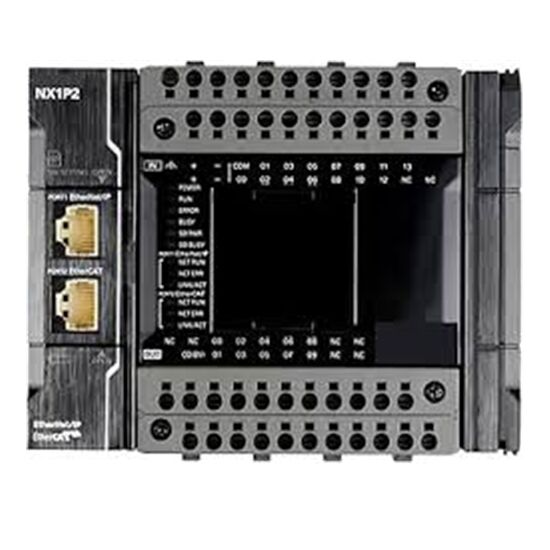

Figure 1 shows the front panel of NX1P2-9024DT1.

Omron NX1P2-9024DT1 PLC CPU Module 24 I/O 4-Axis Motion Controller 0

Quick Specs.

Table 1 shows the Quick Specs

Item	Specification
Model	NX1P2-9024DT1
I/O	14 Inputs, 10 Outputs (PNP)
Motion	4-axis PTP control
Memory	1.5MB program, 2MB variables
Power	24VDC, 6.4W
Communication	EtherCAT, EtherNet/IP

Detailed Specification

Parameter	Details
Model	NX1P2-9024DT1
Type	Machine Automation Controller CPU
Digital Inputs	14 points (PNP/NPN compatible)
Digital Outputs	10 points (PNP transistor)
Total I/O	24 built‑in points
Motion Control	4 PTP axes; 0 synchronous axes
Task Cycle Time	2 ms
Program Memory	1.5 MB
Variables Memory	2 MB (volatile), 32 KB (retain)
Communication	EtherCAT Master, EtherNet/IP, TCP/IP
Ethernet Ports	2
Serial Option	1 slot (RS‑232C/422/485)
Expansion Units	Max 8 units
Remote Nodes	Max 16 EtherCAT nodes
Power Supply	24 VDC (20.4–28.8 VDC)
Power Consumption	6.40 W
Dimensions	124 × 100 × 71 mm (W×H×D)
Weight	Approx. 590 g
Operating Temp	0°C to +55°C
Certifications	CE, UL, RoHS
