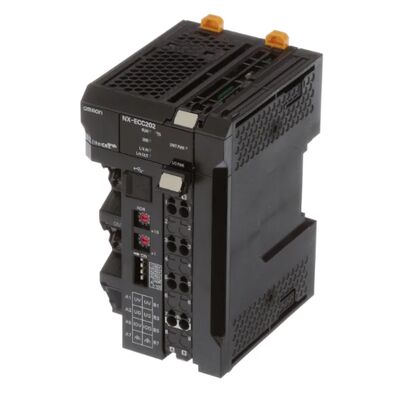

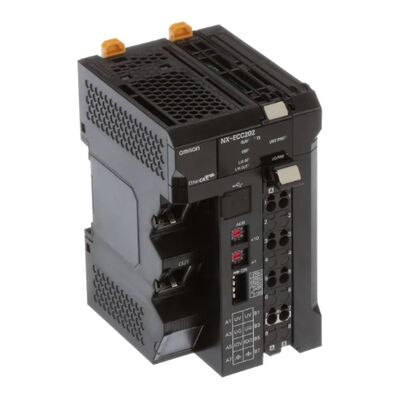

Omron NX-ECC202 EtherCAT Coupler Unit | NX Series High‑Speed Remote I/O Module

Large Image : Omron NX-ECC202 EtherCAT Coupler Unit | NX Series High‑Speed Remote I/O Module

Product Details:

Place of Origin:	China
Brand Name:	Siemens
Certification:	CE
Model Number:	NX-ECC202

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

Omron NX-ECC202 EtherCAT Coupler Unit | NX Series High‑Speed Remote I/O Module

Description

Product Name:	PLC Industrial Control	Part Number:	MT8071IE
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	WQR12038HBL:	1 Year
Keywords:	NX-ECC202
Highlight:	Omron NX-ECC202 EtherCAT coupler , NX Series remote I/O module , PLC industrial control module

Sinamics NX-ECC202 Overview

The NX‑ECC202 is a high‑performance EtherCAT coupler unit from Omron’s NX Series, designed for reliable, high‑speed remote I/O control in industrial automation systems. It acts as an EtherCAT slave to connect modular NX I/O units into a single network node, supporting fast cycle times down to 250 microseconds and distributed clock synchronization for precise motion and machine control.

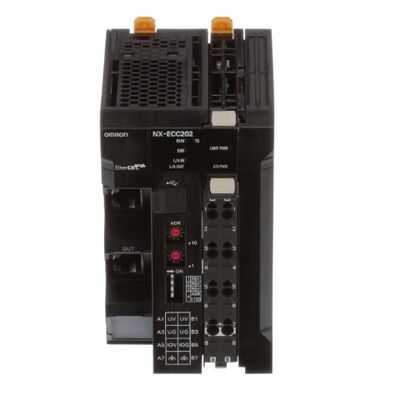

Figure 1 shows the front panel of NX-ECC202.

Omron NX-ECC202 EtherCAT Coupler Unit | NX Series High‑Speed Remote I/O Module 0

Quick Specs.

Table 1 shows the Quick Specs

Item	Specification
Product Model	NX-ECC202
Brand	Omron
Communication	EtherCAT Slave
Cycle Time	250 μs – 4 ms
I/O Capacity	Up to 63 I/O units
Power Supply	24 VDC (20.4–28.8 VDC)
I/O Current	Max 10 A
Ports	2× RJ45
Mounting	DIN rail

Detailed Specification

Parameter	Details
Product Type	EtherCAT Communication Coupler Unit
Series	NX Series
Communication Protocol	EtherCAT
Baud Rate	100 Mbps
Physical Layer	100BASE‑TX (IEEE 802.3)
Communication Cycle	250 μs to 4 ms
Distributed Clock (DC)	Supported
Max Connectable Units	63 NX I/O units
Process Data	Input: max 1024 bytes; Output: max 1024 bytes
Supply Voltage	24 VDC nominal (20.4–28.8 VDC)
I/O Power Current	Max 10 A
Power Consumption	≤ 1.45 W
Communication Ports	2× RJ45 (EtherCAT In/Out)
Mounting	DIN rail mounting
Dimensions (W×H×D)	46 mm × 100 mm × 71 mm
Weight	Approx. 0.28 kg
Insulation	Between communication and I/O circuits
Operating Temperature	-20°C to +55°C
Storage Temperature	-40°C to +70°C
