6ES7223-1BH32-0XB0 Siemens SIMATIC S7-1200 Digital I/O Module SM 1223

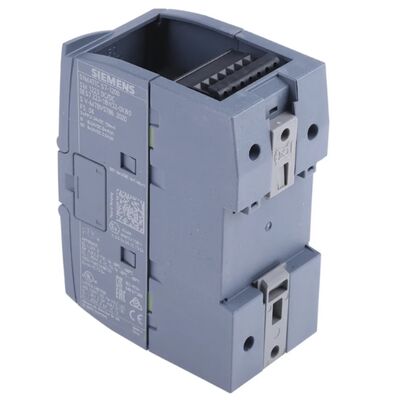

Large Image : 6ES7223-1BH32-0XB0 Siemens SIMATIC S7-1200 Digital I/O Module SM 1223

Product Details:

Place of Origin:	China
Brand Name:	Siemens
Certification:	CE
Model Number:	6ES7223-1BH32-0XB0

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

6ES7223-1BH32-0XB0 Siemens SIMATIC S7-1200 Digital I/O Module SM 1223

Description

Product Name:	PLC Industrial Control	Part Number:	6ES7223-1BH32-0XB0
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	WQR12038HBL:	1 Year
Keywords:	6ES7223-1BH32-0XB0
Highlight:	Siemens S7-1200 digital I/O module , SM 1223 PLC control module , SIMATIC S7-1200 with warranty

Sinamics 6ES7223-1BH32-0XB0 Overview

The 6ES7223-1BH32-0XB0 is a digital input/output expansion module for the SIMATIC S7-1200 controller series, designated as SM 1223. It provides 8 digital input channels and 8 digital transistor output channels at 24 V DC, supporting both sink and source input wiring.

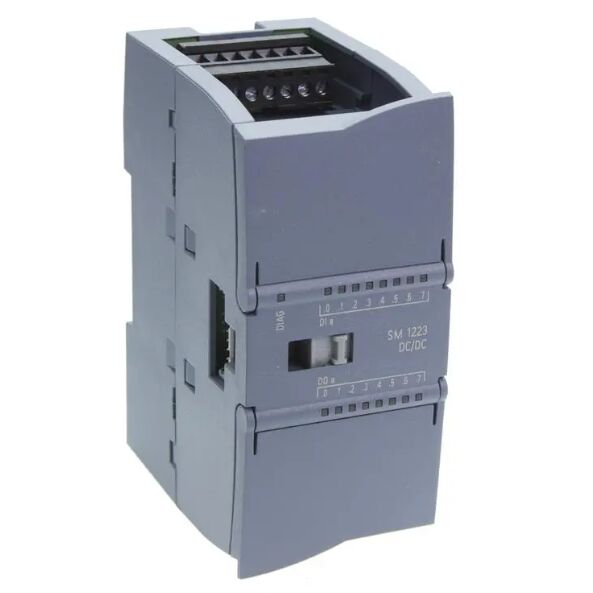

Figure 1 shows the front panel of 6ES7223-1BH32-0XB0.

6ES7223-1BH32-0XB0 Siemens SIMATIC S7-1200 Digital I/O Module SM 1223 0

Quick Specs.

Table 1 shows the Quick Specs

Item	Specification
Part Number	6ES7223-1BH32-0XB0
Type	Digital Input/Output Module
Series	SIMATIC S7-1200, SM 1223
Inputs	8×24 V DC (Sink/Source)
Outputs	8×24 V DC Transistor, 0.5 A
Supply Voltage	24 V DC (20.4–28.8 V DC)
Dimensions	45×100×75 mm
Protection	IP20

Detailed Specification

Parameter	Value
General
Brand	Siemens
Order Number	6ES7223-1BH32-0XB0
Product Name	SIMATIC S7-1200, Digital I/O SM 1223
Input Specifications
Number of Inputs	8
Input Type	Digital, 24 V DC
Input Mode	Sink / Source
Input Voltage Range	20.4 – 28.8 V DC
Input Current	Typical 4 mA per point
Input Delay	Typical 5.0 ms
Output Specifications
Number of Outputs	8
Output Type	Transistor
Output Voltage	24 V DC
Output Current	0.5 A per channel
Output Delay	Typical 0.5 ms
Power & Bus
Bus Current (5 V DC)	Max. 145 mA
Power Consumption	Approx. 2.5 W
Mechanical & Environmental
Dimensions (W×H×D)	45 × 100 × 75 mm
Weight	Approx. 210 g
Operating Temperature	-20 °C to +60 °C
Storage Temperature	-40 °C to +70 °C
Protection Rating	IP20
