Omron NX1P2-1040DT1 PLC CPU Module EtherCAT Motion Controller

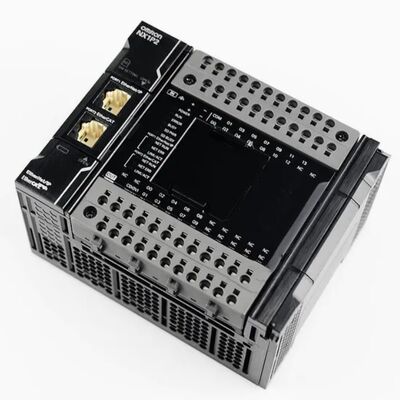

Large Image : Omron NX1P2-1040DT1 PLC CPU Module EtherCAT Motion Controller

Product Details:

Place of Origin:	China
Brand Name:	Siemens
Certification:	CE
Model Number:	NX1P2-1040DT1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

Omron NX1P2-1040DT1 PLC CPU Module EtherCAT Motion Controller

Description

Product Name:	PLC Industrial Control	Part Number:	NX1P2-1040DT1
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	WQR12038HBL:	1 Year
Keywords:	NX1P2-1040DT1
Highlight:	Omron PLC CPU module , EtherCAT motion controller , industrial control PLC module

Sinamics NX1P2-1040DT1 Overview

The NX1P2-1040DT1 is a compact machine automation controller from Omron’s Sysmac NX1P series. It integrates logic control and multi-axis motion control in one unit, with built‑in 40 digital I/O points (24 inputs, 16 PNP outputs). Equipped with native EtherCAT and EtherNet/IP, it supports up to 2 synchronous axes and 4 PTP positioning axes for precise motion tasks.

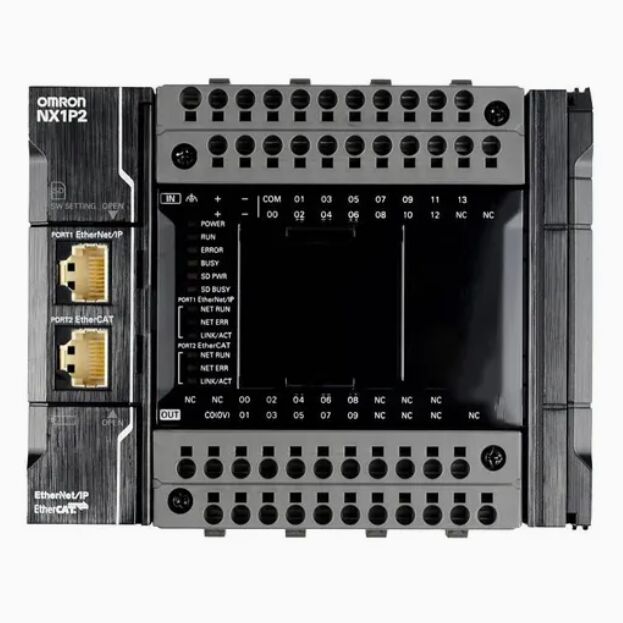

Figure 1 shows the front panel of NX1P2-1040DT1.

Omron NX1P2-1040DT1 PLC CPU Module EtherCAT Motion Controller 0

Quick Specs.

Table 1 shows the Quick Specs

Item	Details
Model	NX1P2-1040DT1
Brand	Omron
I/O	24 Inputs, 16 Outputs (PNP)
Motion	2 Synchronous Axes, 4 PTP Axes
Comm	EtherCAT, EtherNet/IP
Power	24 VDC

Detailed Specification

Parameter	Value
Model	NX1P2-1040DT1
Series	Sysmac NX1P
Type	PLC CPU Unit
Digital Inputs	24 points (PNP/NPN)
Digital Outputs	16 points (PNP transistor)
Total Built-in I/O	40 points
Program Memory	1.5 MB
Variable Memory	2 MB
Synchronous Axes	Max. 2 axes
PTP Axes	Max. 4 axes
Communication	EtherCAT Master, EtherNet/IP, Ethernet TCP/IP
Ethernet Ports	2 ports
Serial Option	2 slots (RS‑232C/422/485)
Expansion Units	Max. 8 units
Remote I/O Nodes	Max. 16 nodes
Supply Voltage	20.4–28.8 VDC (24 VDC nominal)
Dimensions	154 × 100 × 71 mm
Weight	Approx. 660 g
Mounting	DIN rail
Cycle Time	2 ms
