Siemens 6ES7135-6HD00-0BA1 SIMATIC ET 200SP Analog Output Module AQ 4xU/I ST

Large Image : Siemens 6ES7135-6HD00-0BA1 SIMATIC ET 200SP Analog Output Module AQ 4xU/I ST

Product Details:

Place of Origin:	China
Brand Name:	Siemens
Certification:	CE
Model Number:	6ES7135-6HD00-0BA1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

Siemens 6ES7135-6HD00-0BA1 SIMATIC ET 200SP Analog Output Module AQ 4xU/I ST

Description

Product Name:	PLC Industrial Control	Part Number:	6ES7135-6HD00-0BA1
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	WQR12038HBL:	1 Year
Keywords:	6ES7135-6HD00-0BA1
Highlight:	Siemens ET 200SP analog output module , PLC analog output module 4xU/I , SIMATIC ET 200SP AQ module

Sinamics 6ES7135-6HD00-0BA1 Overview

The 6ES7135-6HD00-0BA1 is a high-precision 4-channel analog output module for the SIMATIC ET 200SP distributed I/O system. It supports configurable voltage and current signals with 16-bit resolution and high accuracy, ideal for precise control in industrial automation. Featuring integrated diagnostics, electrical isolation, and compatibility with base units A0/A1 (color code CC00), it ensures reliable operation, easy installation, and minimal downtime in factory automation and process control applications.

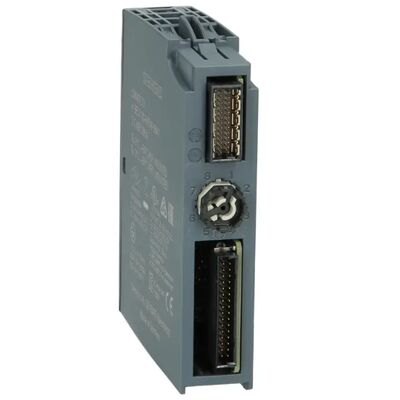

Figure 1 shows the front panel of 6ES7135-6HD00-0BA1.

Siemens 6ES7135-6HD00-0BA1 SIMATIC ET 200SP Analog Output Module AQ 4xU/I ST 0

Quick Specs.

Table 1 shows the Quick Specs

Item	Specification
Part Number	6ES7135-6HD00-0BA1
Type	Analog Output Module, AQ 4xU/I ST
Series	SIMATIC ET 200SP
Channels	4 analog outputs (U/I)
Resolution	16 bit
Supply Voltage	24 V DC
Color Code	CC00
Compatible Base Unit	Type A0, A1

Detailed Specification

Parameter	Value
Manufacturer	Siemens
Order Number	6ES7135-6HD00-0BA1
Product Name	SIMATIC ET 200SP Analog Output Module
Model Designation	AQ 4xU/I Standard
Number of Analog Outputs	4
Output Signal Types	±10 V, 0–10 V, 0–20 mA, 4–20 mA
Resolution	16 bit
Basic Accuracy (25 °C)	±0.3 % of output range
Operating Temperature	-30 °C … +60 °C (horizontal); -30 °C … +50 °C (vertical)
Isolation	Channel-to-backplane: yes; Channel-to-power supply: yes
Diagnostics	Module diagnostics, wire-break, short-circuit monitoring
Dimensions (W x H x D)	15 mm x 73 mm x 58 mm
Protection Class	IP20
Mounting	DIN rail
