GL070E 7" HMI Display 800x480 Ethernet USB RS232 RS485 Industrial Human Machine Interface

Large Image : GL070E 7" HMI Display 800x480 Ethernet USB RS232 RS485 Industrial Human Machine Interface

Product Details:

Place of Origin:	China
Brand Name:	Siemens
Certification:	CE
Model Number:	GL070E

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

GL070E 7" HMI Display 800x480 Ethernet USB RS232 RS485 Industrial Human Machine Interface

Description

Product Name:	PLC Industrial Control	Part Number:	GL070E
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	WQR12038HBL:	1 Year
Keywords:	GL070E
Highlight:	7 inch HMI display with Ethernet , industrial HMI interface RS485 , PLC control touchscreen USB RS232

Sinamics GL070E Overview

GL070E is a 7-inch industrial HMI from Kinco Green Series, equipped with an 800MHz 32-bit ARM processor, 800×480 resolution TFT display, and 4-wire resistive touch panel. It features built-in Ethernet, multiple serial ports, and USB interfaces for stable communication with PLCs and industrial devices. The front panel reaches IP65 protection, suitable for factory automation, machinery control, and intelligent monitoring. GL070E supports program download via USB, U-disk, and Ethernet, and is configured with Kinco DTools software for easy project development.

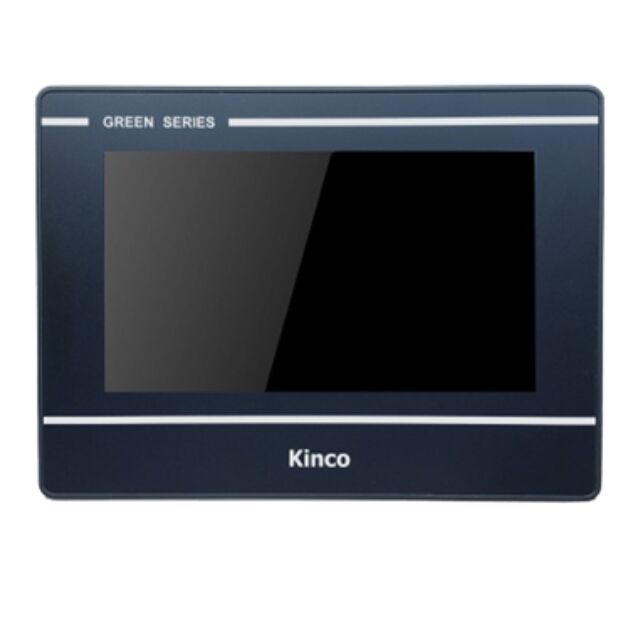

Figure 1 shows the front panel of GL070E.

GL070E 7" HMI Display 800x480 Ethernet USB RS232 RS485 Industrial Human Machine Interface 0

Quick Specs.

Table 1 shows the Quick Specs

Item	Specification
Model	GL070E
Display	7" TFT, 800×480
Touch	4-wire resistive
CPU	32-bit ARM 800MHz
Interface	Ethernet, USB, COM
Power	DC 10–28V

Detailed Specification

Category	Item	Details
Display	Screen Size	7" TFT
	Resolution	800×480 pixels
	Colors	16.77M true color
	Brightness	250 cd/m²
	Backlight	LED, >30000 hrs
	Contrast	500:1
Touch	Type	4-wire precision resistive
	Hardness	4H
System	CPU	ARM RISC 32Bit 800MHz
	Memory	128MB Flash + 128MB DDR3
	RTC	Built-in real-time clock
I/O & Interface	Serial Ports	COM0: RS232/485/422; COM2: RS232
	Ethernet	10/100M adaptive
	USB	1×Host, 1×Slave (Micro)
	Printer	USB Host / Serial
Power	Input	DC 10V–28V
	Consumption	3.6W@24V
	Power loss support	<3ms
Mechanical	Dimensions	204×150×34 mm
	Cutout	192×138 mm
	Weight	0.5 kg
Environment	Operating Temp	0–50°C
	Storage Temp	-20–60°C
	Humidity	10–90% RH (non-condensing)
Protection	Front Panel	IP65
	Certification	CE
