NX-ID5342 16-Point NPN Digital Input Unit 24VDC Push-In Terminal

Large Image : NX-ID5342 16-Point NPN Digital Input Unit 24VDC Push-In Terminal

Product Details:

Place of Origin:	China
Brand Name:	Siemens
Certification:	CE
Model Number:	NX-ID5342

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

NX-ID5342 16-Point NPN Digital Input Unit 24VDC Push-In Terminal

Description

Product Name:	PLC Industrial Control	Part Number:	NX-ID5342
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	WQR12038HBL:	1 Year
Keywords:	NX-ID5342
Highlight:	16-point NPN digital input unit , 24VDC push-in terminal PLC , industrial control input module

Sinamics NX-ID5342 Overview

NX-ID5342 is a high-performance 16-point NPN digital input module designed for the NX‑series I/O system. It operates at 24 VDC with fast response and supports both synchronous and free‑run I/O refreshing for flexible automation control.

The module features a space‑saving 12 mm slim design and a tool‑free push‑in terminal block to reduce wiring time and improve maintainability. It is widely used in PLC‑based factory automation, machinery control, and assembly lines, delivering stable signal acquisition and reliable performance in industrial environments.

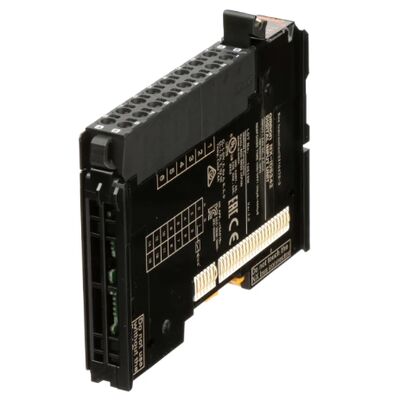

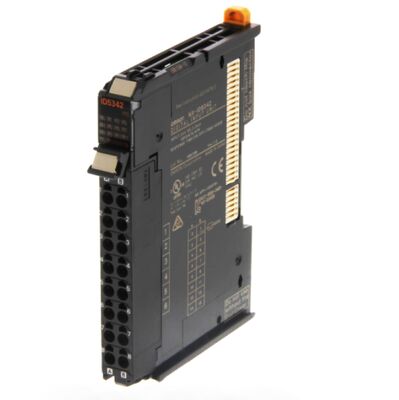

Figure 1 shows the front panel of NX-ID5342.

NX-ID5342 16-Point NPN Digital Input Unit 24VDC Push-In Terminal 0

Quick Specs.

Table 1 shows the Quick Specs

Item	Specification
Model	NX-ID5342
Input Type	16-ch NPN digital input
Rated Voltage	24 VDC
Response Time	20 μs / 400 μs
Terminal	Push‑in, detachable
Dimensions	12 mm wide
Mounting	DIN rail

Detailed Specification

Parameter	Details
Product Type	Digital Input Unit
Series	NX‑series
Number of Inputs	16 points
Input Polarity	NPN
Rated Input Voltage	24 VDC (15–28.8 VDC)
Input Current	2.5 mA typical at 24 VDC
ON Voltage / Current	≥15 VDC / ≥2 mA
OFF Voltage / Current	≤5 VDC / ≤0.5 mA
Response Time	OFF→ON: 20 μs max.; ON→OFF: 400 μs max.
Input Filter	Adjustable: 0–16 ms
I/O Refresh	Synchronous / Free‑Run selectable
Terminal Type	Push‑in Plus (screwless)
Unit Width	12 mm
Protection	IP20
Standards	cULus, CE, KC
RoHS	Compliant
