Siemens 6ES7234-4HE32-0XB0 SIMATIC S7-1200 Analog I/O Module SM 1234 4AI 2AO

Large Image : Siemens 6ES7234-4HE32-0XB0 SIMATIC S7-1200 Analog I/O Module SM 1234 4AI 2AO

Product Details:

Place of Origin:	China
Brand Name:	Siemens
Certification:	CE
Model Number:	6ES7234-4HE32-0XB0

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

Siemens 6ES7234-4HE32-0XB0 SIMATIC S7-1200 Analog I/O Module SM 1234 4AI 2AO

Description

Product Name:	PLC Industrial Control	Part Number:	6ES7234-4HE32-0XB0
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	6ES7234-4HE32-0XB0
Highlight:	Siemens S7-1200 analog I/O module , SM 1234 4AI 2AO module , PLC industrial control module with warranty

Sinamics 6ES7234-4HE32-0XB0 Overview

The 6ES7234-4HE32-0XB0 is a high-performance analog input/output module (SM 1234) designed for the SIMATIC S7‑1200 PLC series. It integrates 4 analog inputs and 2 analog outputs in a compact form factor, supporting both voltage (±10 V) and current (0/4–20 mA) signals with high resolution for precise industrial measurement and control.

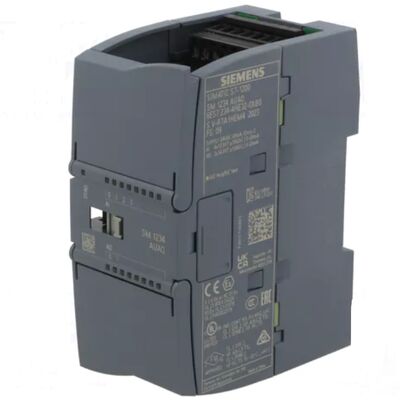

Figure 1 shows the front panel of 6ES7234-4HE32-0XB0.

Siemens 6ES7234-4HE32-0XB0 SIMATIC S7-1200 Analog I/O Module SM 1234 4AI 2AO 0

Siemens 6ES7234-4HE32-0XB0 SIMATIC S7-1200 Analog I/O Module SM 1234 4AI 2AO 1

Quick Specs.

Table 1 shows the Quick Specs

Item	Details
Part Number	6ES7234-4HE32-0XB0
Type	SM 1234 Analog I/O Module
For Series	SIMATIC S7-1200
Analog Inputs	4 AI
Analog Outputs	2 AO
Signal	±10 V / 0(4)–20 mA
Resolution	Voltage:14 bit; Current:13 bit
Supply	24 V DC

Detailed Specification

Parameter	Specification
General
Product Type	SM 1234, AI 4×13 bit / AQ 2×14 bit
Compatible System	SIMATIC S7-1200
Analog Inputs
Number of Channels	4 differential
Input Ranges	±10 V, ±5 V, ±2.5 V, 0–20 mA, 4–20 mA
Resolution (Voltage)	14 bit
Resolution (Current)	13 bit
Basic Accuracy (25°C)	±0.1% of range
Isolation	Channel-to-channel, system isolation
Analog Outputs
Number of Channels	2
Output Ranges	±10 V, 0–20 mA, 4–20 mA
Resolution	14 bit (voltage), 13 bit (current)
Power
Supply Voltage	24 V DC
Current Consumption (typ.)	60 mA
Backplane Bus (5 V DC, typ.)	80 mA
Power Loss (typ.)	2 W
Environment
Operating Temperature	-20°C to +60°C
Protection	IP20
Mounting	DIN rail
Dimensions (W×H×D)	45 mm × 100 mm × 75 mm
