OMRON NX-OD5256 16-Channel PNP Digital Output Module 24V

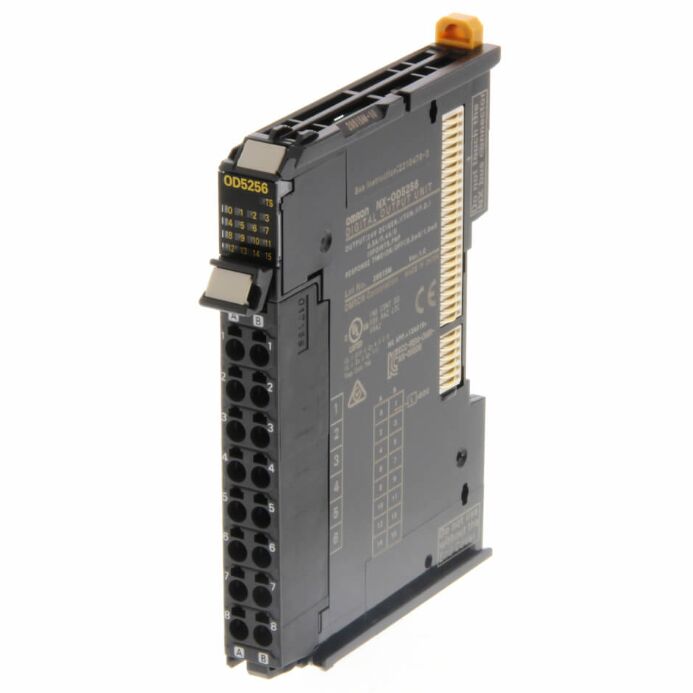

Large Image : OMRON NX-OD5256 16-Channel PNP Digital Output Module 24V

Product Details:

Place of Origin:	China
Brand Name:	Siemens
Certification:	CE
Model Number:	NX-OD5256

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

OMRON NX-OD5256 16-Channel PNP Digital Output Module 24V

Description

Product Name:	PLC Industrial Control	Part Number:	NX-OD5256
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	WQR12038HBL:	1 Year
Keywords:	NX-OD5256
Highlight:	OMRON NX-OD5256 PNP output module , 16-channel digital output module 24V , PLC industrial control output module

Sinamics NX-OD5256 Overview

The OMRON NX-OD5256 is a compact 16-channel PNP digital output module designed for the NX-series I/O system. It operates at 24 VDC with 0.5 A per output and supports both synchronous and free-running I/O refresh for high-precision automation control. Featuring short-circuit protection, optical isolation, and tool-free push-in terminals, it ensures stable performance and easy installation in industrial environments. Ideal for PLC expansion, machine control, and factory automation systems.

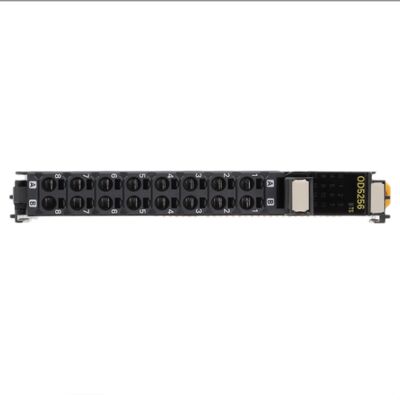

Figure 1 shows the front panel of NX-OD5256.

OMRON NX-OD5256 16-Channel PNP Digital Output Module 24V 0

OMRON NX-OD5256 16-Channel PNP Digital Output Module 24V 1

Quick Specs.

Table 1 shows the Quick Specs

Item	Details
Model	NX-OD5256
Brand	OMRON
Type	Digital Output Module
Outputs	16-point PNP
Voltage	24 VDC (15–28.8V)
Current	0.5A per point
Mount	DIN Rail

Detailed Specification

Parameter	Specification
Model	NX-OD5256
Brand	OMRON
Series	NX Series
Output Type	PNP Transistor
Number of Outputs	16
Supply Voltage	24 VDC (15.0–28.8 V)
Output Current	0.5 A per channel, 4 A max per unit
Response Time	0.5 ms ON, 1.0 ms OFF
I/O Refresh	Synchronous / Free-running
Connection	Push-in / Screw terminal
Isolation	Photocoupler Isolation
Protection	Short-circuit protected
Operating Temp	0°C to +55°C
Dimensions	12 mm × 100 mm × 71 mm
Weight	Approx. 70 g
Protection Grade	IP20
