Cisco Nexus 9300 Switch N9K-C9372TX-E with 48x10G Base-T, 6x40G QSFP+ Ports and 1.44Tbps Throughput

Cisco Nexus 9300 Switch N9K-C9372TX-E with 48x10G Base-T, 6x40G QSFP+ Ports and 1.44Tbps Throughput
Cisco Nexus 9300 Switch N9K-C9372TX-E with 48x10G Base-T, 6x40G QSFP+ Ports and 1.44Tbps Throughput
Cisco Nexus 9300 Switch N9K-C9372TX-E with 48x10G Base-T, 6x40G QSFP+ Ports and 1.44Tbps Throughput Cisco Nexus 9300 Switch N9K-C9372TX-E with 48x10G Base-T, 6x40G QSFP+ Ports and 1.44Tbps Throughput Cisco Nexus 9300 Switch N9K-C9372TX-E with 48x10G Base-T, 6x40G QSFP+ Ports and 1.44Tbps Throughput Cisco Nexus 9300 Switch N9K-C9372TX-E with 48x10G Base-T, 6x40G QSFP+ Ports and 1.44Tbps Throughput Cisco Nexus 9300 Switch N9K-C9372TX-E with 48x10G Base-T, 6x40G QSFP+ Ports and 1.44Tbps Throughput Cisco Nexus 9300 Switch N9K-C9372TX-E with 48x10G Base-T, 6x40G QSFP+ Ports and 1.44Tbps Throughput Cisco Nexus 9300 Switch N9K-C9372TX-E with 48x10G Base-T, 6x40G QSFP+ Ports and 1.44Tbps Throughput

Large Image :  Cisco Nexus 9300 Switch N9K-C9372TX-E with 48x10G Base-T, 6x40G QSFP+ Ports and 1.44Tbps Throughput

Product Details:
Place of Origin: CHINA
Brand Name: CISCO
Certification: CE
Model Number: N9K-C9372TX-E
Payment & Shipping Terms:
Delivery Time: 2-3 days
Payment Terms: T/T
Contact Now

Cisco Nexus 9300 Switch N9K-C9372TX-E with 48x10G Base-T, 6x40G QSFP+ Ports and 1.44Tbps Throughput

Description
Model: N9K-C9372TX-E Description: N9K-C9372TX-E, Cisco Nexus 9300 Switch, 48x10G-T/6x40G QSFP+
Ports: 48 Fixed 1/10GBASE-T And 6 QSFP+ Ports Form Factor: 1 RU
Throughput (Tbps): 1.44 Fans: 4
Manageable: Yes Stackable: Yes
Rack Unit: /
Highlight:

48x10G Base-T Cisco Nexus 9300 Switch

,

6x40G QSFP+ Managed Ethernet Switch

,

1.44Tbps Throughput N9K-C9372TX-E

Cisco N9K-C9372TX-E Overview



The Cisco Nexus 9372TX-E Switch (N9K-C9372TX-E) is a minor hardware revision of the Cisco Nexus 9372TX. Enhancements include hardware capability for IP-based EPG classification in Cisco ACI mode.

Quick Specs

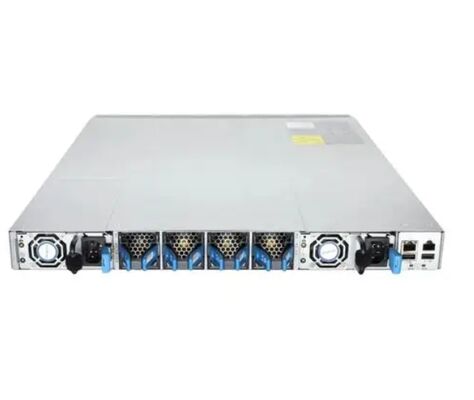

Figure 1 shows the appearance of the N9K-C9372TX-E.



Cisco Nexus 9300 Switch N9K-C9372TX-E with 48x10G Base-T, 6x40G QSFP+ Ports and 1.44Tbps Throughput 0

Table 1 shows the Quick Specs.

Product Code N9K-C9372TX-E
Ports 48 fixed 1/10GBASE-T and 6 QSFP+ ports
Form factor 1 RU
Throughput (Tbps) 1.44
Supported speeds 100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds
40 Gigabit Ethernet uplink port

6 fixed QSFP+ ports

·Advanced QSFP+ optics enable connectivity using existing 10 Gigabit Ethernet fiber.
·The switch offers 25 MB of additional packet buffer space shared with all ports for more resilient operations
Power supplies (up to 2) 650W AC, 930W DC, or 1200W HVAC/HVDC
Typical power(AC & DC) 374.5W
Maximum power(AC & DC) 694W
Maximum number of longest prefix match (LPM) routes 128,000
CPU, SSD, and memory Dual-core 2.5-GHz x86 CPUs with 64-GB SSD drive and 16 GB of memory provide enhanced network performance
Buffer (MB) 37
Operating System NX-OS, ACI
Fans 4
Physical (H x W x D) 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1cm)
Acoustics 48.6 dBA at 40% fan speed, 65.2 dBA at 70% fan speed, and 76.5 dB at 100% fan speed
Weight(without power supplies or fans) 22.6 lb (10.25 kg)

·Typical and maximum power values are based on input drawn from the power circuit. The power supply value (for example, 650W AC power supply: N9K-PAC-650W) is based on the output rating to the inside of the switch.
·The actual maximum scale depends on the system forwarding mode

Product Details

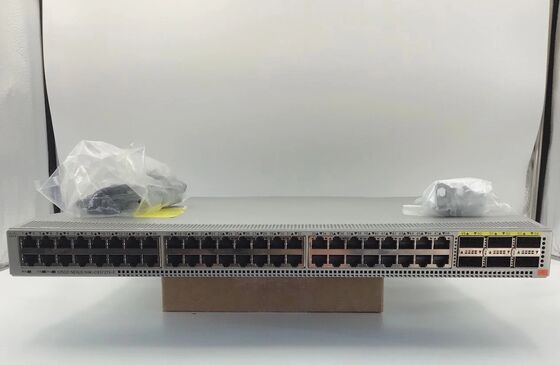

Figure 2 shows the front panel of the N9K-C9372TX-E.



Cisco Nexus 9300 Switch N9K-C9372TX-E with 48x10G Base-T, 6x40G QSFP+ Ports and 1.44Tbps Throughput 1

Note:

① Beacon (BCN), Status (STS), and Environment (ENV) LEDs
② 10GBASE-T APIC-facing ports (48) supporting 100-Megabit, 1-Gigabit, and 10-Gigabit Ethernet
③ 40-Gigabit QSFP+ spine-facing ports (6) supporting 10- and 40-Gigabit Ethernet

The Accessories

Table 2 shows the recommended elements for the the N9K-C9372TX-E.

Category Model Description

40G Transceiver and Cable Options



 QSFP-H40G-ACU10M Cisco QSFP to QSFP copper direct-attach 40GBASE-CR4 cable QSFP-H40G-ACU10M
QSFP-H40G-CU1M Cisco QSFP to QSFP copper direct-attach 40GBASE-CR4 cable QSFP-H40G-CU1M
QSFP-H40G-CU3M Cisco QSFP to QSFP copper direct-attach 40GBASE-CR4 cable QSFP-H40G-CU3M
QSFP-H40G-CU5M Cisco QSFP to QSFP copper direct-attach 40GBASE-CR4 cable QSFP-H40G-CU5M

Compare to Similar Items

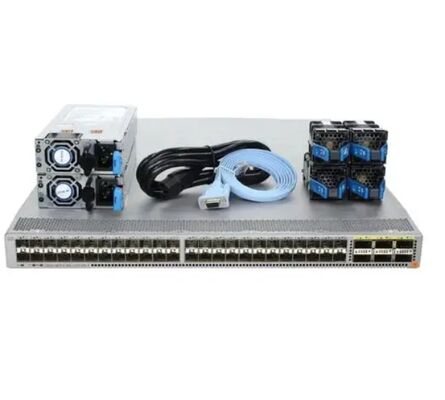

Table 3 shows the comparison of the N9K-C9372TX-E and N9K-C9372PX-E.

Product Code N9K-C9372TX-E N9K-C9372PX-E
Ports 48 fixed 1/10GBASE-T and 6 QSFP+ ports 48 fixed 1/10GBASE-T and 6 QSFP+ ports
Form factor 1 RU 1 RU
Throughput (Tbps) 1.44 1.44
Supported speeds 100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds 1/10 Gigabit Ethernet speeds
Typical power(AC & DC) 374.5W 210W
Maximum power(AC & DC) 694W 537W
Maximum number of longest prefix match (LPM) routes 128,000 128,000
Acoustics 48.6 dBA at 40% fan speed, 65.2 dBA at 70% fan speed, and 76.5 dB at 100% fan speed 48.5 dBA at 40% fan speed, 64.9 dBA at 70% fan speed, and 77.8 dB at 100% fan speed
Weight(without power supplies or fans) 22.6 lb (10.25 kg) 22.2 lb (10.1 kg)








Cisco Nexus 9300 Switch N9K-C9372TX-E with 48x10G Base-T, 6x40G QSFP+ Ports and 1.44Tbps Throughput 2
