Mitsubishi FX5-CCL-MS CC-Link Master Module for MELSEC iQ-F PLC with 64 Remote Stations and 10 Mbps Speed

Large Image : Mitsubishi FX5-CCL-MS CC-Link Master Module for MELSEC iQ-F PLC with 64 Remote Stations and 10 Mbps Speed

Product Details:

Place of Origin:	China
Brand Name:	Siemens
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

Mitsubishi FX5-CCL-MS CC-Link Master Module for MELSEC iQ-F PLC with 64 Remote Stations and 10 Mbps Speed

Description

PFX5-CCL-MS:	PLC Industrial Control	Part Number:	FX5-CCL-MS
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	FX5-CCL-MS
Highlight:	CC-Link Master MELSEC iQ-F Module , 64 Remote Stations PLC Communication Module , 10 Mbps Speed CC-Link Master Module

Sinamics FX5-CCL-MS Overview

The FX5‑CCL‑MS is a dedicated CC‑Link communication module for Mitsubishi MELSEC iQ‑F series PLCs. It operates as a master station or intelligent device station to build stable, high‑speed industrial field networks. Supporting multiple baud rates and up to 64 remote stations, it enables reliable data exchange between PLCs, remote I/O, and field devices. Compact, easy to install, and certified for global standards, the FX5‑CCL‑MS is ideal for factory automation, machinery control, and distributed I/O systems.

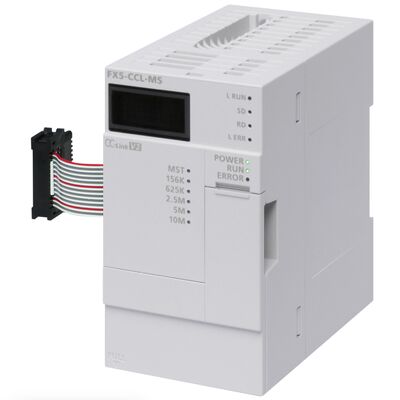

Figure 1 shows the front panel of FX5-CCL-MS.

Mitsubishi FX5-CCL-MS CC-Link Master Module for MELSEC iQ-F PLC with 64 Remote Stations and 10 Mbps Speed 0

Mitsubishi FX5-CCL-MS CC-Link Master Module for MELSEC iQ-F PLC with 64 Remote Stations and 10 Mbps Speed 1

Quick Specs.

Table 1 shows the Quick Specs

Item	Details
Model	FX5-CCL-MS
Brand	Mitsubishi Electric
Series	MELSEC iQ-F
Function	CC-Link Master / Intelligent Device Station
Compatible CPU	FX5U / FX5UC / FX5UJ
Communication Speed	156 kbps / 625 kbps / 2.5 Mbps / 5 Mbps / 10 Mbps
Certifications	CE, UL, cUL, RoHS

Detailed Specification

Specification	Value
Model	FX5-CCL-MS
Applicable PLC	MELSEC iQ‑F series (FX5U, FX5UC, FX5UJ)
Station Type	Master station / Intelligent device station
Occupied I/O Points	8 points
Communication Method	CC‑Link (differential serial)
Transmission Speed	156kbps, 625kbps, 2.5Mbps, 5Mbps, 10Mbps
Max. Connected Stations	Up to 64 stations (master mode)
Max. Distance	1200 m (depending on speed)
Power Supply	5 VDC (from PLC base unit)
Current Consumption	Approx. 100 mA
Dimensions (W×H×D)	50 mm × 90 mm × 83 mm
Weight	0.3 kg
Standards	CE, UL/cUL, RoHS, EMC
Engineering Tool	GX Works3
