Siemens SIMATIC HMI KTP400 Basic Panel 4.3-inch TFT Color Display with PROFINET and Ethernet Interfaces and Front IP65 Protection

Large Image : Siemens SIMATIC HMI KTP400 Basic Panel 4.3-inch TFT Color Display with PROFINET and Ethernet Interfaces and Front IP65 Protection

Product Details:

Place of Origin:	China
Brand Name:	Siemens
Certification:	CE
Model Number:	6AV2123-2DB03-0AX0

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

Siemens SIMATIC HMI KTP400 Basic Panel 4.3-inch TFT Color Display with PROFINET and Ethernet Interfaces and Front IP65 Protection

Description

Product Name:	PLC Industrial Control	Part Number:	6AV2123-2DB03-0AX0
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	6AV2123-2DB03-0AX0
Highlight:	4.3-inch TFT color display HMI Touch Screen Panel , PROFINET and Ethernet interfaces Operator Panel , Front IP65 protection SIMATIC HMI KTP400 Basic Panel

Sinamics 6AV2123-2DB03-0AX0 Overview

The 6AV2123-2DB03-0AX0 is a Siemens SIMATIC HMI KTP400 Basic operator panel, designed for reliable industrial human-machine interface tasks. It features a 4.3-inch TFT color display with 480×272 resolution and combines touch control with four physical function keys for intuitive operation. Equipped with PROFINET and Ethernet interfaces, it integrates smoothly into automation networks. Powered by 24 VDC, it offers stable performance, front IP65 protection, and easy configuration via WinCC/STEP 7 Basic software. This compact, durable panel is ideal for machine-level visualization, parameter setting, and process monitoring in manufacturing and automation systems.

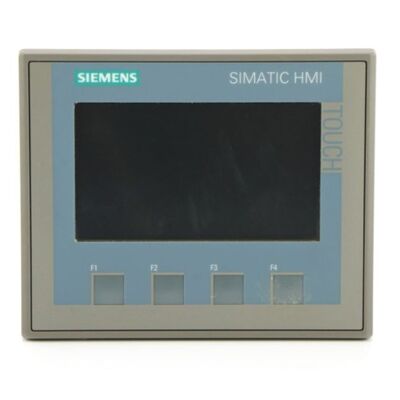

Figure 1 shows the front panel of 6AV2123-2DB03-0AX0.

Siemens SIMATIC HMI KTP400 Basic Panel 4.3-inch TFT Color Display with PROFINET and Ethernet Interfaces and Front IP65 Protection 0

Siemens SIMATIC HMI KTP400 Basic Panel 4.3-inch TFT Color Display with PROFINET and Ethernet Interfaces and Front IP65 Protection 1

Quick Specs.

Table 1 shows the Quick Specs

Item	Specification
Part Number	6AV2123-2DB03-0AX0
Brand	Siemens
Type	SIMATIC HMI KTP400 Basic
Display	4.3" TFT, 480×272, 65536 colors
Operation	Touch + 4 function keys
Power	24 VDC
Interface	PROFINET/Ethernet

Detailed Specification

Parameter	Details
Manufacturer	Siemens
Product Line	SIMATIC HMI Basic Panel 2nd Generation
Model	KTP400 Basic
Display Size	4.3-inch widescreen
Display Type	TFT LCD with LED backlight
Resolution	480 × 272 pixels
Color Depth	65536 colors
Input	Resistive touch + 4 mechanical keys
Supply Voltage	19.2–28.8 VDC (nominal 24 VDC)
Communication	PROFINET, Ethernet/IP, Modbus TCP
Memory	10 MB ROM
Operating Temp	0 °C to +50 °C
Protection	Front panel IP65
Configuration	WinCC Basic, STEP 7 Basic
