Huawei NE40E-X16A Router, CR5DMPUX8670 CR5DMPUX8673 CR5DSFUIU07B, 12.58Tbps Switching Capacity

Large Image : Huawei NE40E-X16A Router, CR5DMPUX8670 CR5DMPUX8673 CR5DSFUIU07B, 12.58Tbps Switching Capacity

Product Details:

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	CE
Model Number:	NE40E-X16A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

Huawei NE40E-X16A Router, CR5DMPUX8670 CR5DMPUX8673 CR5DSFUIU07B, 12.58Tbps Switching Capacity

Description

Product Name:	Industrial Network Router	Part Number:	NE40E-X16A
Shipment:	DHL& FeDex	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	NE40E-X16A	Payment:	TT/Paypal
Highlight:	Huawei NE40E-X16A industrial router , 12.58Tbps switching capacity router , CR5DMPUX8670 network router with warranty

Huawei NE40E-X16A Overview

The Huawei NE40E-X16A is a high‑performance universal service router designed for large‑scale IP backbone, metropolitan area network (MAN), and IDC edge scenarios. Equipped with dual main processing units (CR5DMPUX8670, CR5DMPUX8673) and four switch fabric units (CR5DSFUIU07B), it delivers 12.58 Tbps non‑blocking switching capacity with full hardware redundancy for high reliability.

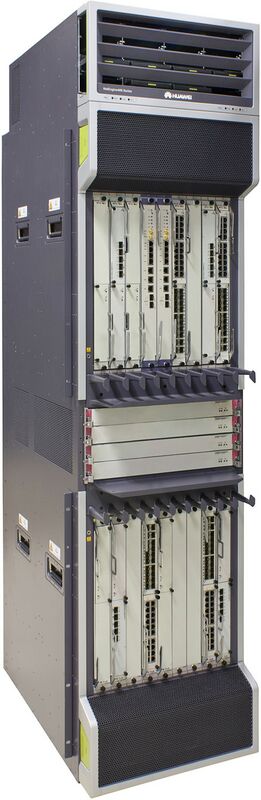

Figure 1 shows the front panel of NE40E-X16A.

Huawei NE40E-X16A Router, CR5DMPUX8670 CR5DMPUX8673 CR5DSFUIU07B, 12.58Tbps Switching Capacity 0

Quick Specs.

Table 1 shows the Quick Specs

Item	Specification
Model	NE40E-X16A
Chassis	40U, 22-slot
MPU	2× Main Processing Unit (CR5DMPUX8670, CR5DMPUX8673)
SFU	4× Switch Fabric Unit (CR5DSFUIU07B)
Switching Capacity	12.58 Tbps
Slots	2× MPU, 4× SFU, 16× LPU
Redundancy	1:1 MPU, 3+1 SFU
Application	Backbone, MAN, IDC Edge

Detailed Specification

Parameter	Details
Product Model	Huawei NetEngine NE40E-X16A
Chassis Form Factor	40U rack-mounted
Total Slots	22 slots
Main Processing Unit	CR5DMPUX8670, CR5DMPUX8673 (1+1 redundant)
Switch Fabric Unit	CR5DSFUIU07B (3+1 redundant)
LPU Slots	16 slots
Switching Capacity	12.58 Tbps
Dimensions (H×W×D)	1778 mm × 442 mm × 650 mm
Operating Temperature	-40°C to +85°C
Redundancy	MPU 1:1, SFU 3+1, Power & Fan redundant
Protocol	IPv4/IPv6, MPLS, VPN, QoS, SRv6, SDN
Typical Application	IP Backbone, Metropolitan Area Network, IDC Edge, Enterprise Core
