Siemens 6ES7522-1BH00-0AB0 SIMATIC S7-1500 Digital Output Module with 16 Channels 24V DC and Diagnostics

Large Image : Siemens 6ES7522-1BH00-0AB0 SIMATIC S7-1500 Digital Output Module with 16 Channels 24V DC and Diagnostics

Product Details:

Place of Origin:	China
Brand Name:	Siemens
Certification:	CE
Model Number:	6ES7522-1BH00-0AB0

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

Siemens 6ES7522-1BH00-0AB0 SIMATIC S7-1500 Digital Output Module with 16 Channels 24V DC and Diagnostics

Description

Product Name:	PLC Industrial Control	Part Number:	6ES7522-1BH00-0AB0
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	6ES7522-1BH00-0AB0
Highlight:	Siemens S7-1500 digital output module , PLC digital output module with warranty , SIMATIC S7-1500 industrial control module

Sinamics 6ES7522-1BH00-0AB0 Overview

The 6ES7522-1BH00-0AB0 is a digital output module for the SIMATIC S7-1500 controller system. It provides 16 digital output channels at 24 V DC / 0.5 A per channel, grouped into two blocks of eight with 4 A per group. This module supports channel diagnostics and substitute value functions for reliable industrial control. It is widely used in factory automation, machinery control and system integration for stable signal output and actuator driving. It is a standard spare part with the successor model 6ES7522-1BH01-0AB0.

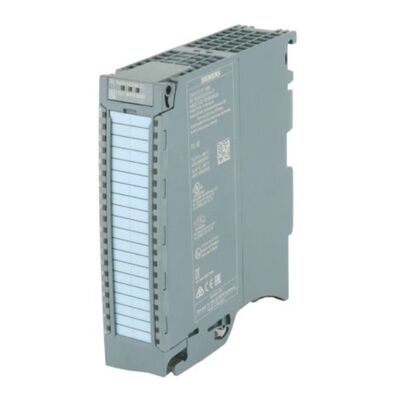

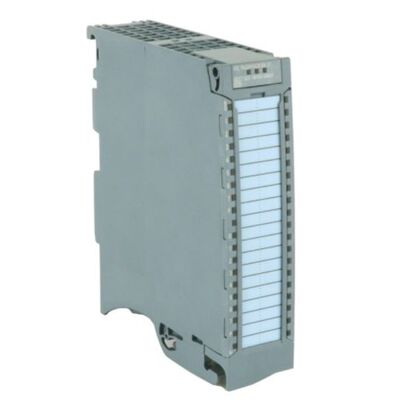

Figure 1 shows the front panel of 6ES7522-1BH00-0AB0.

Siemens 6ES7522-1BH00-0AB0 SIMATIC S7-1500 Digital Output Module with 16 Channels 24V DC and Diagnostics 0

Siemens 6ES7522-1BH00-0AB0 SIMATIC S7-1500 Digital Output Module with 16 Channels 24V DC and Diagnostics 1

Quick Specs.

Table 1 shows the Quick Specs

Item	Details
Part Number	6ES7522-1BH00-0AB0
Type	Digital Output Module
Series	SIMATIC S7-1500
Outputs	16×24VDC/0.5A
Grouping	16 channels in groups of 8
Per Group Current	4A
Features	Diagnostics, Substitute value

Detailed Specification

Parameter	Specification
Manufacturer	Siemens
Product Type	Digital Output Module (DQ)
Designation	DQ 16x24VDC/0.5A ST
Number of Outputs	16
Output Voltage	24 V DC
Output Current per Channel	0.5 A
Current per Group (8 channels)	4 A
Total Module Current	8 A
Channel Grouping	2 groups × 8 channels
Diagnostics	Channel diagnostics
Substitute Value	Supported
Protection	IP20
Compatibility	SIMATIC S7-1500, ET 200MP
Successor Model	6ES7522-1BH01-0AB0
