Mitsubishi MR-JE-100AS CNC Servo Drive 1kW High Precision AC Servo Amplifier for CNC Machinery

Large Image : Mitsubishi MR-JE-100AS CNC Servo Drive 1kW High Precision AC Servo Amplifier for CNC Machinery

Product Details:

Place of Origin:	China
Brand Name:	Siemens
Certification:	CE
Model Number:	MR-JE-100AS cnc

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

Mitsubishi MR-JE-100AS CNC Servo Drive 1kW High Precision AC Servo Amplifier for CNC Machinery

Description

Product Name:	PLC Industrial Control	Part Number:	MR-JE-100AS Cnc
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	MR-JE-100AS Cnc
Highlight:	Mitsubishi CNC servo drive 1kW , AC servo amplifier for CNC machinery , high precision servo drive with warranty

Siemens MR-JE-100AS cnc Overview

Mitsubishi MR-JE-100AS is a high-performance 1kW AC servo amplifier of the MELSERVO-JE series, specially optimized for CNC machinery feed axis control and precision industrial automation applications. It supports 1/3-phase AC 200-240V wide voltage input, matching Mitsubishi JE series 1kW servo motors (e.g., HG-KR103B, HG-SN102) to achieve micron-level positioning precision with 17-bit high-resolution encoder (131072 p/rev).

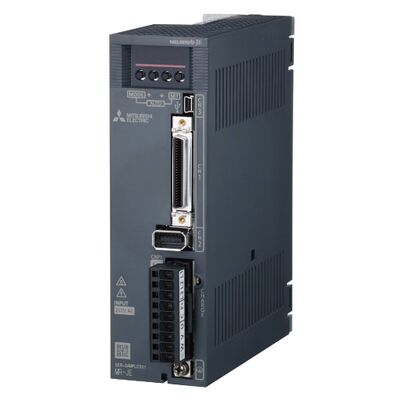

Figure 1 shows the front panel of MR-JE-100AS cnc.

Quick Specs.

Table 1 shows the Quick Specs.

Parameter	Specification
Rated Output	1kW
Input Voltage	1/3-Phase AC 200-240V 50/60Hz
Rated Output Current	6.0A
Control Modes	Position/Speed/Torque
Encoder Resolution	131072 p/rev (17-bit)
IP Rating	IP20
Operating Temp	0~55℃ (Non-condensing)
Weight	1.5kg

Detailed Specification

Category	Item	Specification
Power Specification	Rated Output Power	1kW
	Main Circuit Input	1/3-Phase AC 200-240V, 50/60Hz; Allowable Fluctuation: 170-264V AC
	Main Circuit Input Current	5.0A (Rated)
	Rated Output Current	6.0A; Peak Output Current: 18.0A (3x Rated)
	Interface Power Supply	DC 24V±10%, 0.1A (CN1 Signal Loop)
	Output Voltage	3-Phase AC 0~200V (Variable with Input)
Control Performance	Control Method	Sine-wave PWM Control / Current Control
	Control Modes	Position (Max 100kHz Pulse), Speed (±10V Analog), Torque (±10V Analog)
	Speed Response Frequency	500Hz
	Encoder Resolution	131072 pulses/rev (17-bit)
	Communication	USB, RS-422/RS-485; SSCNET III/H (0.444ms/0.888ms Cycle)
Mechanical Specs	Dimensions (W×H×D)	70mm × 168mm × 185mm
	Weight	1.5kg
	Cooling Method	Natural Cooling (No Fan)
	Mounting Type	Wall-mounted
Environmental Specs	Operating Temperature	0~55℃ (Non-condensing)
	Storage Temperature	-20~65℃ (Non-condensing)
	Operating/Storage Humidity	≤90% RH (Non-condensing)
	Vibration Resistance	5.9m/s² (10~55Hz, X/Y/Z Axes)
	Altitude	≤1000m above sea level
	IP Rating	IP20 (Finger-proof)
Protection Functions	Electrical Protection	Overcurrent, Overvoltage, Undervoltage, Overload (Electronic Thermal)
	Mechanical Protection	Motor Overheat, Encoder Error, Position Deviation Excess, Overspeed
	Other Protection	Instantaneous Power Failure, Regenerative Error
Core Functions	Tuning Function	One-touch Auto Tuning, Adaptive Filter, Robust Filter
	Vibration Control	Advanced Vibration Suppression Control II
	Energy Saving	Regenerative Energy Utilization via Large Capacitance Capacitor
	Monitoring	Drive Recorder, Machine Diagnosis, Power Monitoring
