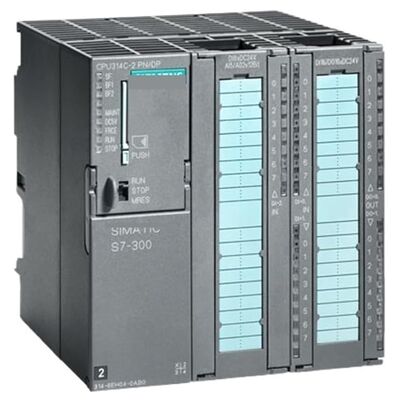

Siemens 6ES7314-6EH04-0AB0 S7-300 CPU 314C-2 PN/DP Compact Processor with PROFINET PROFBUS

Large Image : Siemens 6ES7314-6EH04-0AB0 S7-300 CPU 314C-2 PN/DP Compact Processor with PROFINET PROFBUS

Product Details:

Place of Origin:	China
Brand Name:	Siemens
Certification:	CE
Model Number:	6ES7314-6EH04-0AB0

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

Siemens 6ES7314-6EH04-0AB0 S7-300 CPU 314C-2 PN/DP Compact Processor with PROFINET PROFBUS

Description

Product Name:	PLC Industrial Control	Part Number:	6ES7314-6EH04-0AB0
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	6ES7314-6EH04-0AB0
Highlight:	Siemens S7-300 CPU 314C-2 PN/DP , PLC Compact Processor with PROFINET , Industrial Control CPU with PROFBUS

Siemens 6ES7314-6EH04-0AB0 Overview

The Siemens 6ES7314-6EH04-0AB0 is a high-performance compact CPU from the S7-3OO automation series, engineered for mid-range discrete and process control applications. As the CPU 314C-2 PN/DP variant, it integrates a powerful processor with 60 ns instruction speed, 128 KB work/load memory, and a comprehensive set of digital/analog I/O (16DI/16DO, 4AI/2AO) – eliminating the need for additional I/O modules in small to medium control systems.

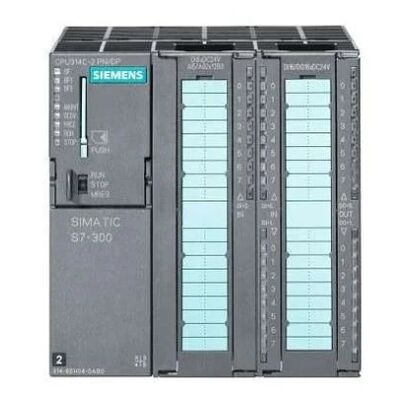

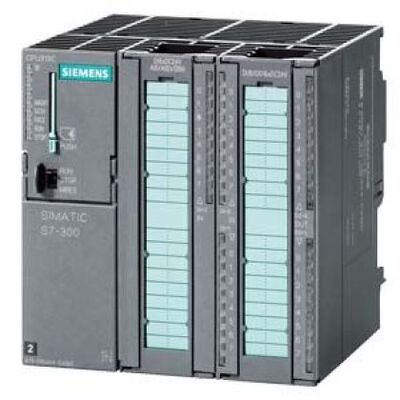

Figure 1 shows the front panel of 6ES7314-6EH04-0AB0.

Quick Specs.

Table 1 shows the Quick Specs.

Parameter	Specification
Brand	Siemens
Series	S7-300
Model	6ES7314-6EH04-0AB0
Type	Compact CPU
Interfaces	PROFINET, PROFBUS DP
Memory	128 KB Work, 128 KB Load

Detailed Specification

Category	Parameter	Details
Core CPU	Processing Performance	60 ns per binary instruction
	Work Memory	128 KB RAM (for program and data)
	Load Memory	128 KB Flash EPROM (integrated)
	Retentivity	Permanent (without battery) for all memory
Digital I/O	Integrated Digital Inputs	16 x 24 V DC
	Integrated Digital Outputs	16 x 24 V DC/0.5 A
Analog I/O	Integrated Analog Inputs	4 x differential, 16-bit
	Integrated Analog Outputs	2 x 16-bit
Communication	PROFINET Interface	1 x RJ45, 10/100 Mbps, 2-port switch
	PROFBUS DP Interface	1 x RS-485, max 12 Mbps
	MPI	Integrated, up to 12 Mbps, max 32 nodes
Functional Features	Counter/Frequency	4 x 32-bit high-speed counters (up to 100 kHz)
	Pulse Width Modulation	2 x PWM outputs (up to 100 kHz)
	Positioning	2 x stepper motor/pulse train outputs
Power Supply	Input Voltage	24 V DC (19.2 - 28.8 V DC)
	Power Consumption	Typical 4 W
Mechanical	Dimensions (W×H×D)	40 x 125 x 120 mm
	Mounting	DIN rail mounting (35 mm)
Operating Conditions	Temperature	0 °C to +60 °C (operation)
	Humidity	5 - 95% RH, non-condensing
	Certification	CE, UL, ATEX, IECEx
