Fanuc A06B-6102-H206 CNC Spindle Servo Amplifier 200-240V AC High Precision

Large Image : Fanuc A06B-6102-H206 CNC Spindle Servo Amplifier 200-240V AC High Precision

Product Details:

Place of Origin:	China
Brand Name:	Siemens
Certification:	CE
Model Number:	A06B-6102-H206 CNC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

Fanuc A06B-6102-H206 CNC Spindle Servo Amplifier 200-240V AC High Precision

Description

Product Name:	PLC Industrial Control	Part Number:	A06B-6102-H206 CNC
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	A06B-6102-H206 CNC
Highlight:	Fanuc CNC spindle servo amplifier , High precision servo amplifier 240V , PLC industrial control amplifier

Siemens A06B-6102-H206 CNC Overview

The Fanuc A06B-6102-H206 is a high-performance spindle servo amplifier module, the core power unit of Fanuc AC servo drive system for CNC equipment. It features advanced IGBT PWM control and high-precision vector control algorithm, which can realize independent and accurate control of motor torque and magnetic field, providing stable, high-torque and fast-response power output for AC servo motors. With 27A rated output current and 6.8KW rated power, it supports high-resolution serial pulse encoder feedback and high-speed serial bus communication with CNC controller, ensuring precise execution of motion instructions and realizing complex trajectory interpolation and accurate position control.

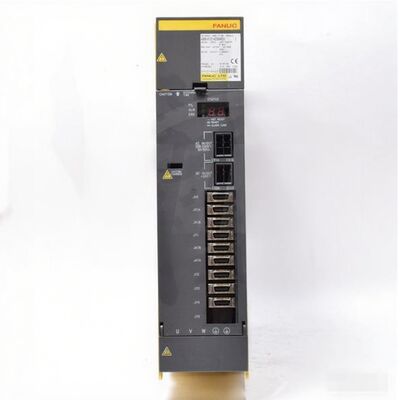

Figure 1 shows the front panel of A06B-6102-H206 CNC.

Quick Specs.

Table 1 shows the Quick Specs.

Parameter	Value
Brand	Fanuc
Type	Spindle Servo Amplifier
Input Voltage	200-240V AC (3-Phase)
Rated Power	6.8KW
Rated Current	27A

Detailed Specification

Parameter Category	Parameter Name	Specification Value
Basic Info	Model	A06B-6102-H206
Basic Info	Manufacturer	Fanuc
Basic Info	Product Type	CNC Spindle Servo Amplifier Module
Electrical Specs	Input Voltage	200V-240V AC (Three-phase)
Electrical Specs	Rated Output Power	6.8KW
Electrical Specs	Rated Output Current	27A
Electrical Specs	Control Mode	IGBT PWM Control
Interface Specs	Feedback Interface	High-resolution serial pulse encoder supported
Interface Specs	Communication Interface	High-speed serial bus (connect with CNC controller)
Protection Function	Protection Type	Overcurrent, overvoltage, overheating, short circuit protection
Mechanical Specs	Protection Grade	IP30
Mechanical Specs	Mounting Method	Modular rack mounting / 35mm DIN rail mounting
Mechanical Specs	Net Weight	5.96KG
Working Env	Operating Temperature	0°C ~ +55°C (no derating at 45°C)
Working Env	Relative Humidity	≤90% (no condensation)
Applicable Motor	Motor Series	Fanuc AC Servo Motor (αi, βi series)
