TOSOKU HC121 DAG MPG CNC Handwheel 4 Axis 12V 25PPR for Mitsubishi CNC System

Large Image : TOSOKU HC121 DAG MPG CNC Handwheel 4 Axis 12V 25PPR for Mitsubishi CNC System

Product Details:

Place of Origin:	China
Brand Name:	Siemens
Certification:	CE
Model Number:	HC121 TOSOKU DAG MPG CNC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

TOSOKU HC121 DAG MPG CNC Handwheel 4 Axis 12V 25PPR for Mitsubishi CNC System

Description

Product Name:	PLC Industrial Control	Part Number:	HC121 TOSOKU DAG MPG CNC
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	HC121 TOSOKU DAG MPG CNC
Highlight:	Mitsubishi CNC handwheel 4 axis , CNC handwheel 12V 25PPR , PLC control handwheel with warranty

Siemens HC121 TOSOKU DAG MPG CNC Overview

The TOSOKU HC121 DAG MPG is a high-precision manual pulse generator specially engineered for Mitsubishi CNC systems, serving as a core manual control accessory for CNC machine tools, machining centers and other industrial automation equipment. Featuring a compact and lightweight design with a thickness of only 26mm, this 4-axis CNC handwheel realizes precise manual positioning and fine-tuning of CNC machine tools with 25PPR pulse output and ×1/×10/×100 adjustable multipliers, meeting the high-precision operation requirements of industrial machining.

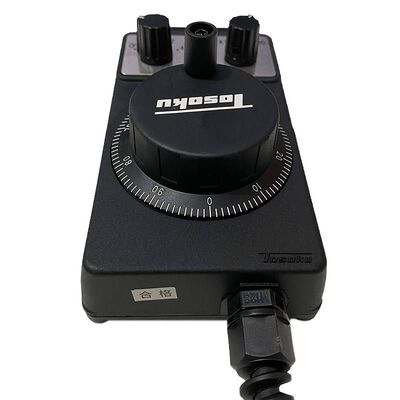

Figure 1 shows the front panel of HC121 TOSOKU DAG MPG CNC.

Quick Specs.

Table 1 shows the Quick Specs.

Item	Specification
Brand	TOSOKU
Model	HC121
Voltage	DC 12V
PPR	25PPR
Axis	4 Axis
Application	Mitsubishi CNC System

Detailed Specification

Parameter	Value
Brand	TOSOKU
Model	HC121 DAG MPG
Power Supply	DC 12V
Pulse Output	25PPR
Axis Selection	OFF,X,Y,Z,4
Multiplier	×1,×10,×100
Dimension	124×73×26 mm
Weight	525g
Operating Temperature	-10℃ ~ +60℃
Storage Temperature	-40℃ ~ +70℃
LED Indicator	DC24V Green
Sealing Performance	IP67 Equivalent
Noise Immunity	EN 50082-2 Compliant
Cable	3m Curly Cable (Standard)
Compliance	RoHS,CE
Output Signal	A,B
No-Load Current	60mA
Output Voltage	High: Vcc×0.7V, Low: 0.5V
Output Current	35mA
Pulse Fall Time	5μs (Typ)
Response Frequency	0~5kHz
Insulation Resistance	20MΩ
