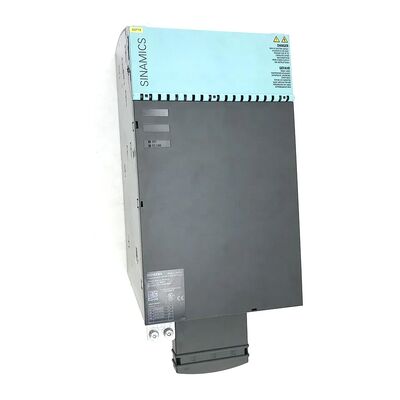

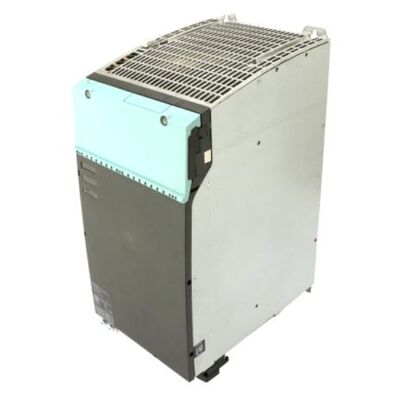

SINAMICS S120 Single Motor Module, 600V DC Input, 3AC 400V 85A Output, Booksize, Internal Air Cooling

Large Image : SINAMICS S120 Single Motor Module, 600V DC Input, 3AC 400V 85A Output, Booksize, Internal Air Cooling

Product Details:

Place of Origin:	China
Brand Name:	Siemens
Certification:	CE
Model Number:	6SL3120-1TE28-5AA3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

SINAMICS S120 Single Motor Module, 600V DC Input, 3AC 400V 85A Output, Booksize, Internal Air Cooling

Description

Product Name:	PLC Industrial Control	Part Number:	6SL3120-1TE28-5AA3
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	6SL3120-1TE28-5AA3
Highlight:	SINAMICS S120 motor module 600V DC , S120 booksize motor module internal cooling , PLC control motor module 400V 85A

Siemens 6SL3120-1TE28-5AA3 Overview

The Siemens SINAMICS S120 6SL3120-1TE28-5AA3 is a high-performance single motor module designed for precise and reliable motion control in industrial automation applications. Engineered with a booksize frame and internal air cooling, this module delivers efficient operation without requiring bulky external cooling systems.

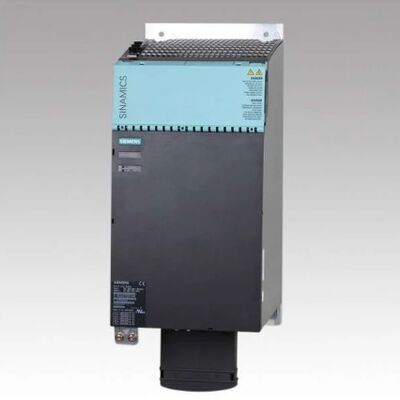

Figure 1 shows the front panel of 6SL3120-1TE28-5AA3.

SINAMICS S120 Single Motor Module, 600V DC Input, 3AC 400V 85A Output, Booksize, Internal Air Cooling 0

Quick Specs.

Table 1 shows the Quick Specs.

Item	Specification
Manufacturer	Siemens
Product Line	SINAMICS S120
Module Type	Single Motor Module
Input Voltage	DC 510-720V (rated 600V)
Output Voltage/Current	3AC 400V, 85A (rated)
Cooling Method	Internal Air Cooling
Frame Size	Booksize
Key Feature	Extended Safety Integrated Functions, DRIVE - CLiQ Connection

Detailed Specification

Parameter Category	Parameter	Specification
Basic Information	Part Number	6SL3120-1TE28-5AA3
	Product Type	Single Motor Module
	Product Series	SINAMICS S120
	Weight	9.07 kg (20.00 lbs)
Electrical Input	DC Link Voltage Range	DC 510-720V
	Electronics Power Supply	DC 24V (-15% / +20%)
	Max Current Demand of Electronics Power Supply	1.50 A
	DC Link Capacitance	1880 µF
Electrical Output	Rated Output Current (IN)	85.0 A
	Base Load Current (IH)	68.0 A
	S6 Duty (40%) Current (IS6)	110.0 A
	Peak Current (Imax)	141.0 A
	Rated Power (based on IN)	46.0 kW
	Rated Power (based on IH)	37.0 kW
	Rated Pulse Frequency	4.00 kHz
	Output Frequency (Servo Control)	0-650 Hz
	Output Frequency (V/f Control)	0-600 Hz
	Output Frequency (Vector Control)	0-300 Hz
Mechanical & Cooling	Frame Size	Booksize
	Cooling Method	Internal Air Cooling (0.044 m³/s air flow)
	DC Link Busbars Current Carrying Capacity	200 A
	24V Busbars Current Carrying Capacity	20 A
Functional Features	Safety Function	Extended Safety Integrated Functions
	Communication Interface	DRIVE - CLiQ (incl. cable)
