Allen-Bradley 1734-IB8 POINT I/O 8-Channel 24V DC Sinking Digital Input Module

Large Image : Allen-Bradley 1734-IB8 POINT I/O 8-Channel 24V DC Sinking Digital Input Module

Product Details:

Place of Origin:	China
Brand Name:	Siemens
Certification:	CE
Model Number:	1734-ib8

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

Allen-Bradley 1734-IB8 POINT I/O 8-Channel 24V DC Sinking Digital Input Module

Description

Product Name:	PLC Industrial Control	Part Number:	1734-ib8
Shipment:	DHL	Condition:	New
Lead Time:	2-3 Days	Warranty:	1 Year
Keywords:	1734-ib8
Highlight:	Allen-Bradley 1734-IB8 8-channel input module , POINT I/O 24V DC sinking module , PLC digital input module with warranty

Siemens 1734-ib8 Overview

The Allen-Bradley 1734-IB8 is an 8-channel 24V DC sinking digital input module, part of the POINT I/O product family (Series C). Designed for industrial automation systems, it connects field devices (e.g., sensors, switches) to control systems via the POINT bus, supporting flexible DIN-rail mounting (requires a compatible 1734-TB/TBS base).

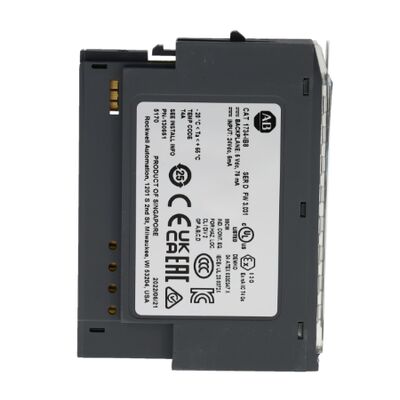

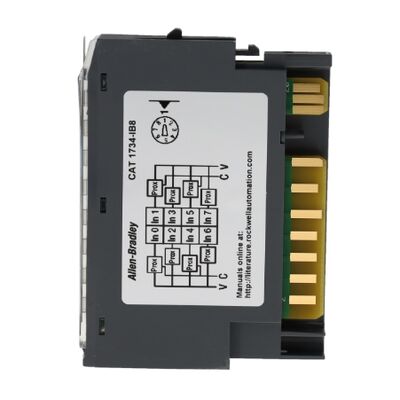

Figure 1 shows the front panel of 1734-ib8.

Allen-Bradley 1734-IB8 POINT I/O 8-Channel 24V DC Sinking Digital Input Module 0

Quick Specs.

Table 1 shows the Quick Specs.

Parameter	Value
Module Type	Digital DC Sinking Input
Channels	8
Nominal Input Voltage	24V DC
Input Voltage Range	10–28.8V DC
Operating Temp Range	-20°C to +55°C
Mounting Type	DIN Rail
Point Bus Current	75 mA (5V DC)

Detailed Specification

Category	Details
General	Allen-Bradley 1734-IB8, POINT I/O Series, Series C
Inputs	8 channels, 24V DC sinking (PNP) type
Input Parameters	- Voltage range: 10–28.8V DC - On-state current: 2–5 mA (nominal 4 mA) - Off-state voltage (max): 5V DC - Input filter: 0.5 ms (hardware) + 0–63 ms (user-selectable)
Power	- Point bus: 5V DC, 75 mA - Power dissipation: 1.6 W (5.5 BTU/hr)
Environmental	- Operating temp: -20°C to +55°C - Storage temp: -40°C to +85°C - Humidity: 95% non-condensing
Mechanical	- Dimensions: 56×12×75.5 mm (2.2×0.47×2.97 in) - Weight: ~31.8 g (1.12 oz) - Mounting: DIN rail (requires 1734-TB/TBS base)
Certifications	CE, UL, ATEX, IECEx (per product label)
