Software compatibility
|
● RoomOS 10.x or later for native Webex meetings and video interoperability with Microsoft Teams (VIMT, WebRTC), Zoom (SIP), and Google Meet (WebRTC)
● Microsoft Teams Rooms on Android
|
|
Default components in Room Kit Pro bundle
|
● Cisco Codec Pro
● Cisco Quad Camera
● Cisco Room Navigator
● Wall mount for Quad Camera
|
|
Default components in Room Kit Pro PTZ 4K integrator bundle
|
● Cisco Codec Pro
● Cisco PTZ 4K Camera
● Cisco Room Navigator
|
|
Optional hardware components
|
● Cisco PTZ 4K Camera

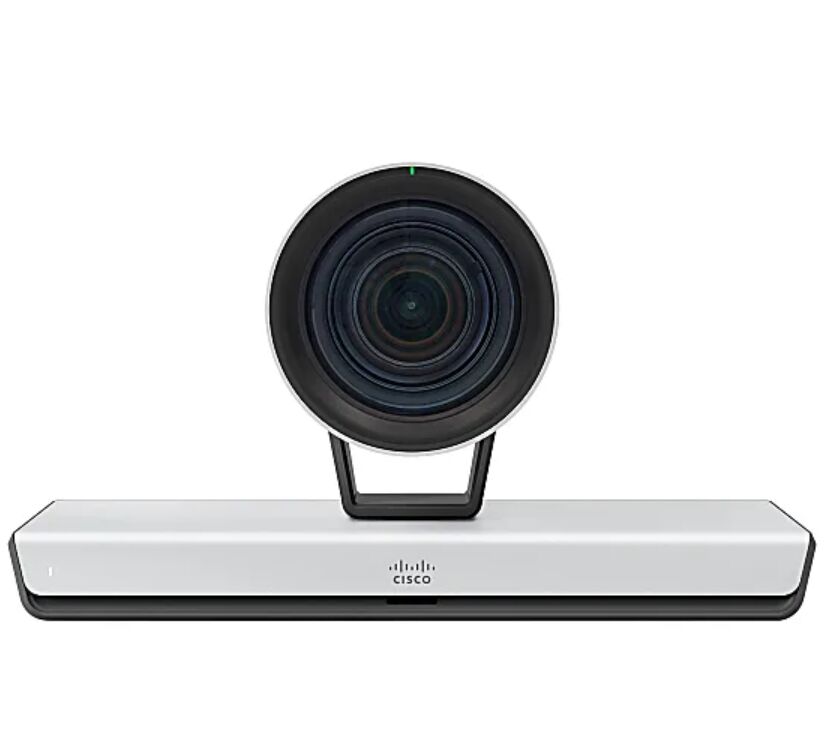

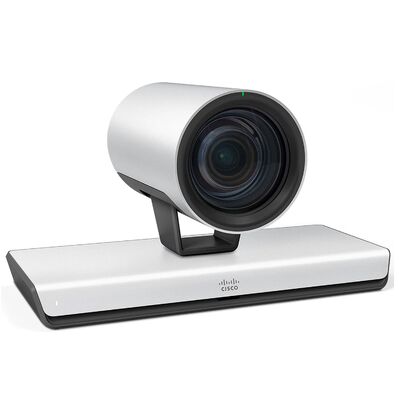

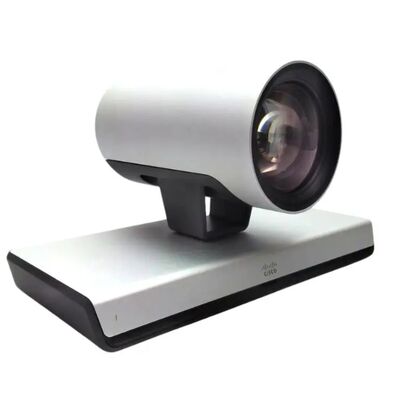

● Cisco Precision 60 Camera
● Cisco Room Navigator Table-Stand, First Light (additional unit)
● Cisco Room Navigator Wall-Mount, First Light (additional unit)
● Cisco Table Microphone
● Cisco Ceiling Microphone
● Cisco Table Microphone Pro - First Light
● Cisco Table Microphone Pro - Carbon Black
● Cisco Ceiling Microphone Pro - Arctic White
● Cisco Ceiling Microphone Pro - Carbon Black
● Wall mount for Cisco Codec Pro
● Rack ears for Cisco Codec pRO
● Cisco Active USB-C Cable, 9m
● Cisco Multi-head Cable 4K
● Other cable, mount and peripheral options (see Ordering information)
|
|
Bandwidth
|
● Up to 20 Mbps
|
|
Minimum bandwidth for resolution/frame rate
|
● 720p30 from 768 kbps
● 720p60 from 1152 kbps
● 1080p30 from 1472 kbps
● 1080p60 from 2560 kbps
|
|
Firewall traversal
|
● Cisco Expressway ™ technology H.460.18, H.460.19 firewall traversal
|
|
Video standards
|
● H.264, H.265, H.263, AV1
|
|
Video inputs (6)
|
● 2x HDMI inputs support formats up to maximum 1080p60
● 3x HDMI inputs support formats up to maximum UHD (3840 x 2160) @ 30 fps including HD1080p60
● 1x 3G-SDI/HD-SDI input supports formats up to maximum 1080p60
● Extended Display Identification Data (EDID)
● Consumer Electronics Control (CEC) 2.0
|
|
Video outputs (3)
|
● 2x HDMI outputs support formats up to 3840 x 2160@60 fps (4Kp60)
● 1x HDMI output supports formats up to 3840 x 2160@30 fps (4Kp30)
● CEC 2.0
|
|
Encode and decode
|
● Video stream: Full HD 1080p60
● Content stream: 4K 2160p15
|
|
Audio standards
|
● G.711, G.722, G.722.1, G.729AB, AAC-LD mono and stereo, Opus Stereo
|
|
Audio features
|
● High quality 20 kHz audio
● 8x separate acoustic echo cancelers
● 8-port audio mixer
● 8 assignable equalizers
● Acoustic Echo Cancellation (AEC)
● Active Lip Synchronization
● AI-Powered, Adaptive Noise Removal
● Automatic Gain Control (AGC)
● Full Duplex
● Full-Band Audio
● Self-Hear
● Ultrasound Technology
|
|
Audio inputs
|
● 8x microphones, 48V phantom powered, Euroblock connector, each with separate echo cancelers and noise reduction; all microphones can be set for balanced line level
● 3x HDMI, digital: stereo PC/DVD input
● Up to 8x Cisco IP microphones via PoE (Audio over IP) for directional voice pickup (may require an external PoE switch)
● 2x USB-A, digital: stereo input for USB microphone connectivity
● Connectivity with third-party audio systems via AES67
|
|
Audio outputs
|
● 6x balanced line level outputs, Euroblock connector
● 3x HDMI outputs
● HDMI input #1 supports Audio Return Channel (ARC) audio output to Quad Camera
● 1x RCA output for subwoofer (Quad Camera)
● Connectivity with third-party audio systems via AES67
|
|
Loudspeakers (Quad Camera)
|
● High-quality loudspeaker system with a single full-range driver and dual low-frequency drivers
● Frequency response 100 Hz to 20 kHz
● Max output level SPL 90 dB
|
|
Camera modes (Quad Camera)
|
● Group view: Automatically detects meeting participants and provides ideal group framing for the best view
● Speaker view: Uses a dedicated, built-in microphone array to detect and provide a prominent view for the active speaker
● Frames: Captures a condensed view of in-room participants and frames them individually or in smaller groups for more equitable meetings, on Webex and when using third-party meetings
|
|
Video stream layouts
|
● Supporting available Webex video stream layouts and meeting features, including focus, grid, prominent, stack, and overlay. For more information, please consult the Webex Help Center
● People Focus helps create an optimized view of every participant in Webex meetings via smart cropping to remove excess real estate
|
|
Speaker tracking (Quad Camera)
|
● Quad Camera offers 8-element built-in microphone array for accurate speaker tracking
● Quad Camera can support Group view framing and people Frames camera feature with 7x zoom capability
● For an optimal speaker-tracking experience for people joining remotely, it is recommended that the furthest in-room participant is located within less than 9 meters from the video device. Please note that the Group view camera mode can support a larger distance from the Quad Camera
● Extended Speaker view: allows for an extended camera reach beyond 9 meters by zooming on the active speaker and providing an optimal view in very long conference rooms to provide a close-up view of the furthest speaker in the room. Requires the combined deployment of the Room Kit Pro, the Cisco PTZ 4K Camera, and Cisco IP microphones for the extended, directional voice capture range
● Cross-view: Using Room Kit Pro with the Quad Camera combined with two additional cameras installed on the sidewalls to provide AI-directed, cinematic cross-view of in-room conversations happening across the table. Available with two PTZ 4K Cameras (up to 6 seats on each side) or two Quad Cameras (up to 12 seats on each side of the table)
|
|
PresenterTrack (PTZ 4K Camera, Precision 60 Camera)
|
● Presenter tracking available with the Cisco PTZ 4K Camera or the Precision 60 Camera
● AI-powered face and upper-body detection capability
● Camera automatically follows the active presenter within a defined zone and helps ensure an optimized view
● Presenter and Audience view: intelligent framing and dynamic switching can be enabled with a combination of the Quad Camera bar and the PTZ 4K Camera
|
|
Content stream
|
● H.239 (H.323) dual stream
● BFCP Session Initiation Protocol (SIP) dual stream
● Supports resolutions up to 3840 x 2160p15 fps and 1080p60
|
|
Wireless sharing
|
● Webex App (up to 3840 x 2160 at 7.5 fps)
● Miracast (1920 x 1080 at 60 fps) – Not available on non-radio version
● Microsoft Teams Cast (up to 1920 x 1080 at 15 fps) - Available only on Microsoft Teams Rooms
● Apple AirPlay wireless sharing:
◦ Screen mirroring up to 1920 x 1080 at 60 fps
◦ Extended desktop (Mac only) - up to 1920 x 1080 at 60 fps
◦ Video streaming up to 3840 x 2160 at 30 fps
|
|
Multipoint support
|
● 5-way embedded SIP/H.323 ** conferencing capability with MultiSite option
|
|
MultiSite features (embedded multipoint) (optional upgrade)
|
● Adaptive SIP/H.323 ** MultiSite:
◦ 3-way resolution up to 1080p30 plus content up to 4Kp15
◦ 4-way resolution up to 720p30 plus content up to 4Kp15
◦ 5-way resolution up to 720p30 plus content up to 4Kp15
● Full individual audio and video transcoding
● H.323 **, SIP, and VoIP in the same conference
● Support for presentation (H.239, BFCP) from any participant at resolutions up to 3840 x 2160p15
● Best impression (automatic continuous presence layouts)
● Encryption and dual stream from any site
|
|
Protocols
|
● H.323
● SIP
● Webex
● WebRTC
|
|
Embedded encryption
|
● H.323 and SIP point-to-point
● Standards-based: H.235 v3 and Advanced Encryption Standard (AES)
● Automatic key generation and exchange
|
|
IP network features
|
● DNS lookup for service configuration
● Differentiated Services (DiffServ) (Quality of Service [QoS])
● IP-adaptive bandwidth management (including flow control)
● Automatic gatekeeper discovery
● Dynamic playout and lip-sync buffering
● H.245 Dual-Tone Multifrequency (DTMF) tones in H.323
● DTMF tones in SIP, RFC 4733
● Date and time support using Network Time Protocol (NTP)
● Packet loss-based down speeding
● Uniform Resource Identifier (URI) dialing
● TCP/IP
● Dynamic Host Configuration Protocol (DHCP)
● 802.1X network authentication
● 802.1Q Virtual LAN
● 802.1p QoS and class of service
● Cisco Media Assure and ClearPath, including packet loss-based downspeeding
|
|
Call control
|
● Cisco Collaboration Cloud/Webex
● Native registration with Cisco Unified Communications Manager (CUCM) - requires CUCM Version 10.5.2 or later with device pack for Room Kit Pro
● Native registration with Cisco Expressway
● Third-party H.323 gatekeepers and standards-based SIP proxies
|
|
IPv6 network support
|
● Single call stack support for both H323 and SIP
● Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ
● Support for static IP address assignment, stateless auto-configuration, and DHCP v6
|
|
Security features
|
● Secure management using HTTPS and SSH protocols
● End-to-end encryption for calls and meetings on Webex
● Standards-based media encryption on all back-ends (Secure Real-time Transport Protocol [SRTP], using AES-128-GCM or AES-256-GCM)
● WPA3TM and WPA3-Enterprise with CCMP128 Wi-Fi ® security
● Password protection to access administration (Room Navigator)
● Network settings protection
|
|
Certificate management
|
● Certificate Authority Proxy Function (CAPF) support for additional security
● Manufacturer-Installed Certificates (MIC)
● Locally Significant Certificates (LSC)
● X.509 Digital Certificates (DER encoded binary); both DER and Base-64 formats are acceptable for the client and server certificates; certificates with a key size of 1024, 2048, and 4096 are supported
|
|
Network interfaces Codec Pro
|
● 1x Ethernet (RJ-45) 10/100/1000 for LAN
● 2x Ethernet (RJ-45) 10/100/1000 for direct pairing with camera (camera control)
● 2x Ethernet (RJ-45) 10/100/1000 with PoE, 1 dedicated for device controls via Room Navigator and another for connectivity with IP-based room peripherals, including Cisco IP microphones
● Wi-Fi 802.11a/b/g/n/ac 2.4 GHz and 5 GHz for LAN - not available in non-radio versions
● 2x2 Multiple Input and Multiple Output (MIMO)
Note: Due to compliance regulations, it is required that 802.11d is enabled in the access point for the product to operate properly within 5725 MHz – 5875 MHz.
Using a Wifi connection is a flexible option, however an Ethernet connection is always preferred for high performance.
|
|
Other interfaces
|
● 2x USB A port, USB-B, micro USB port, factory reset pinhole
● Bluetooth ® and Bluetooth ® Low Energy * - not available in non-radio versions
|
|
Power supply (Quad Camera)
|
● 100 to 240 VAC, 50/60 Hz, 12V DC input
● Standby 6W, average 20W, peak 70W
|
|
Operating temperature and humidity
|
● 0° to 35°C (32° to 95°F) ambient temperature
● 10% to 90% Relative Humidity (RH)
|
|
Storage and transport temperature
|
● -20° to 60°C (-4° to 140°F) at RH 10% to 90% (noncondensing)
|
|
Language support
|
● Arabic, Czech, Danish, German, US English, UK English, Catalonian, Spanish, Latin-American Spanish, Finnish, French, Canadian French, Hebrew, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Polish, Brazilian Portuguese, Portuguese, Russian, Swedish, Turkish, Chinese (Simplified), Traditional Chinese, Ukrainian
|
|
Form factor
|
● Cisco Quad Camera color options in First Light and Carbon Black (coming soon)
● The Quad Camera supports flexible mounting on the wall or on the screen, either above or underneath the screen(s)
● Codec Pro supports wall mounting, rack ear mounting, and custom placement as a free-standing unit
|
|
Dimensions
|
● Length: 10.6 in. (26.8 cm)
● Height (at max. tilt): 7.1 in (18 cm)
● Depth: 6.4 in. (16.3 cm)
● Weight: 5.5 lb. (2.5 kg)
|
