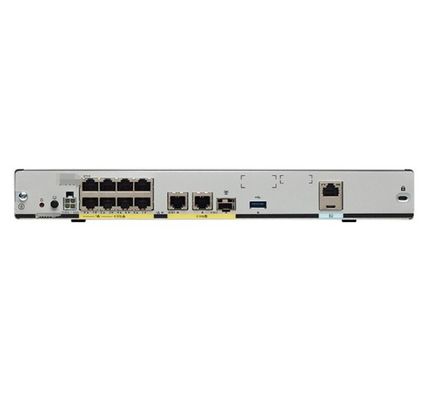

C1111-8P Cisco 1100 Series Router ISR 1100 8 Ports Dual GE WAN Ethernet Router

C1-SL-1100-8P-APP

AppX Foundation License for Cisco ISR 1100 8P Series

SL-1100-8P-SEC

Security License for Cisco ISR 1100 8P Series

SL-1100-8P-SECNPE

NPE Security License for Cisco ISR 1100 8P Series

C1-SL-1100-8P-SEC

Security Foundation License for Cisco ISR 1100 8P Series

FL-VPERF-8P-200

IPSEC PLUS 200 Mbps License for Cisco ISR 1100 8P Series

Dimensions (H x W x D)

1.75 x 12.70 x 9.015 in.

Weight

4.37 lb. (1.98 kg)

Maximum power consumption (excluding external PS loss)

18W

External power supply

• AC input voltage: Universal 100 to 240 VAC, 50 to 60 Hz
• Output voltage: 12 VDC
• Maximum output power: 66W
• Requires 150W power supply for optional PoE and PoE+
• PoE output voltage of -53.5 VDC

Operating conditions

• Temperature: 0° to 40°C at sea level, 1°C/1000 ft derating from 40°C
• Altitude: 0 to 10,000 ft (0 to 3048 m)
• Humidity: 10% to 85% relative humidity (non-condensing)

Nonoperating conditions

• Temperature: -40° to +70°C (-40° to +158°F)
• Altitude: 0 to 15,000 ft (0 to 4572 m)
• Humidity: 5% to 95% relative humidity (non-condensing)

–

WAN

GE: 2

DSL: NO

LTE(CAT6): NO

USB port

802.11ac: NO

GE: 8

SD-WAN IPsec throughput
(1400 bytes)

1889 Mbps

SD-WAN IPsec throughput (IMIX)

465 Mbps

SD-WAN overlay tunnels

200

IPv4 forwarding throughput (IMIX)

1673 Mbps

IPsec throughput (multi tunnel, IMIX)

468 Mbps

Number of IPsec IPv4 tunnels

100

lash/DRAM

4 GB

Number of ACLs per system

4K

Number of IPv4 ACEs per system

Number of IPv4 routes

280K

Number of IPv6 routes

260K

Number of NAT sessions

100K

Number of VRFs

1K
