C9300-48T-E, 48x1G RJ45/Data only/Modular uplink Overview

C9300-48T-E,  48x1G RJ45/Data only/Modular uplink Overview
C9300-48T-E,  48x1G RJ45/Data only/Modular uplink Overview C9300-48T-E,  48x1G RJ45/Data only/Modular uplink Overview C9300-48T-E,  48x1G RJ45/Data only/Modular uplink Overview C9300-48T-E,  48x1G RJ45/Data only/Modular uplink Overview C9300-48T-E,  48x1G RJ45/Data only/Modular uplink Overview C9300-48T-E,  48x1G RJ45/Data only/Modular uplink Overview C9300-48T-E,  48x1G RJ45/Data only/Modular uplink Overview

Large Image :  C9300-48T-E, 48x1G RJ45/Data only/Modular uplink Overview

Product Details:
Brand Name: Cisco
Model Number: C9300-48T-E
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Delivery Time: 1-7 work days
Payment Terms: T/T

C9300-48T-E, 48x1G RJ45/Data only/Modular uplink Overview

Description
Highlight:

Cisco C9300 48-port Gigabit switch

,

48x1G RJ45 modular uplink switch

,

C9300-48T-E data switch with warranty

C9300-48T-E, 48x1G RJ45/Data only/Modular uplink Overview

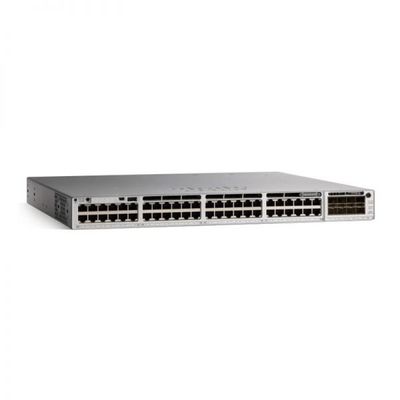

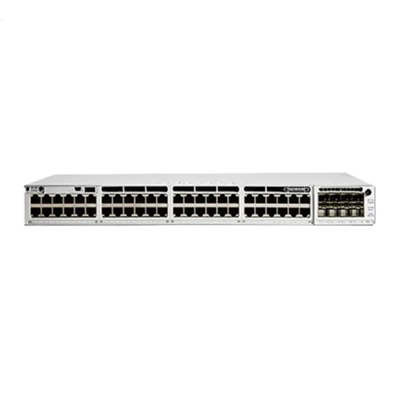

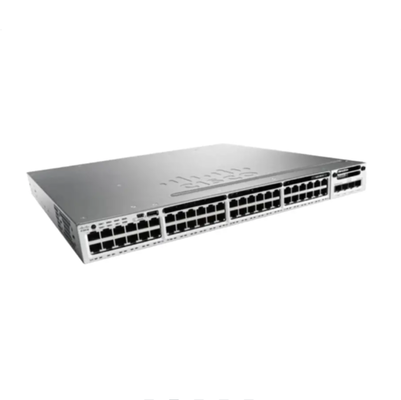

Cisco's C9300-48T-E is a flagship enterprise-class switch in the Cisco Catalyst 9300 Series, purpose-built for secure, high-speed access and advanced network management. As the backbone for digital transformation, the C9300-48T-E delivers highly reliable connectivity and data aggregation, empowering distributed business environments and facilitating the constant evolution of the enterprise LAN edge.

C9300-48T-E,  48x1G RJ45/Data only/Modular uplink Overview 0 C9300-48T-E,  48x1G RJ45/Data only/Modular uplink Overview 1
Optional Add-ons
Model Number Description
PWR-C1-350WAC Cisco power supply module, 350W AC, agile backup or replacement for Catalyst 9300 Series.
C9300-NM-8X Cisco Catalyst 9300 8 x 10G Network Module, uplink expansion for high-speed connectivity.
C9300-STACK-KIT StackWise-480 stacking kit for Catalyst 9300 Series, enabling multi-switch scalability and redundancy.
C9300-48T-E, Cisco Catalyst 9300 Switch, 48x1G RJ45/Data only/Modular uplink Specification
Model
C9300-48T-E
Brand
Cisco
Part Number
C9300-48T-E
Product Description
Catalyst 9300 48-port data only, Network Essentials
Total 10/100/1000 or Multigigabit Copper Ports
48
Default AC Power Supply
350WAC
Cisco StackPower
Yes
Default Power Supply
PWR-C1-350WAC
Switching Capacity
256 Gbps on 48-port Gigabit Ethernet model
Stacking Bandwidth
480 Gbps
Total Number of MAC Addresses
32,000
Total Number of IPv4 Routes (ARP plus learned routes)
32,000 (24,000 direct routes and 8,000 indirect routes)
IPv4 Routing Entries
32,000
IPv6 Routing Entries
16,000
FNF Entries
64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM
8 GB
Total Switched Virtual Interfaces (SVIs)
2,000
Jumbo Frames
9,198 bytes
Total Routed Ports per 9300 Series Stack
208
Wireless Bandwidth per Switch
Up to 96 Gbps on 48-port Gigabit Ethernet model
Forwarding Rate
154.76 Mpps
Dimensions (H x W x D)
1.73 x 17.5 x 17.5 in
Mean Time Between Failures (hours)
299,000
Safety Certifications
UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3
Electromagnetic Emissions Certifications
47 CFR Part 15, CISPR22 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CISPR24, EN 300 386, EN55024, TCVN 7317
Environmental
Reduction of Hazardous Substances (ROHS) 5
Weight
7.45 kg
C9300-48T-E,  48x1G RJ45/Data only/Modular uplink Overview 2 C9300-48T-E,  48x1G RJ45/Data only/Modular uplink Overview 3 C9300-48T-E,  48x1G RJ45/Data only/Modular uplink Overview 4
