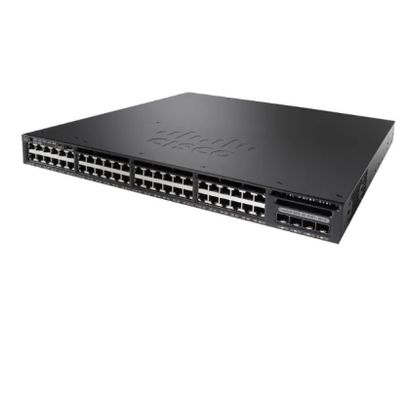

WS-C3650-48FS-S Specification
|
|
Enclosure type
|
Rack-mountable - 1U
|
|
Ports
|
48 x 10/100/1000 (POE+) + 4 x 1G SFP
|
|
Network management Interface
|
· Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
· Management console port: RJ-45-to-DB9 cable for PC connections
|
|
Available PoE Power
|
775W
|
|
Switching Capacity
|
176Gbps
|
|
Maximum stacking number
|
9
|
|
Stack Bandwidth
|
160Gbps
|
|
Forwarding Performance
|
77.37Mpps
|
|
FNF entries
|
48000
|
|
Maximum VLANs IDs
|
4,094
|
|
MAC Address Table Size
|
32K
|
|
CPU
|
Multicore CPU
|
|
RAM
|
4 G
|
|
Flash Memory
|
2 G
|
|
Wireless
|
|
Number of AP per switch/stack
|
50
|
|
Number of wireless clients per switch/stack
|
1000
|
|
Total number of WLANs per switch
|
64
|
|
Wireless bandwidth per switch
|
up to 40Gbps
|
|
Supported Aironet AP series
|
3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040
|
|
Expansion / Connectivity
|
|
Console ports
|
USB (Type-B), Ethernet (RJ-45)
|
|
Expansion Slot(s)
|
power redundant slot
|
|
Accessory & Rack Moubt Kits
|
· ACC-KIT-T1: Accessory kit
· RACK-KIT-T1: Rack mount kit
· 4PT-KIT-T1:Extension rails and brackets for four-point mounting
|
|
Stacking module & cable
|
· C3650-STACK-KIT: Stack Module
· STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length
· STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length
· STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length
|
|
Power supply
|
PWR-C2-1025WAC
|
|
Power Device
|
Power supply - redundant - plug-in module
|
|
Power Redundancy
|
optional
|
|
Voltage range (Auto)
|
100V-240V
|
|
Power Consumption of standalone (in Watts)
|
109.4 (max)
|
|
Miscellaneous
|
|
Width
|
17.5 Inches (44.5 cm)
|
|
Depth
|
19.125 Inches (48.6 cm)
|
|
Height
|
1.73 Inches (4.4 cm)
|
|
Shipping Weight
|
17.49 Kg
|
|
Rack Mounting Kit
|
optional
|
|
MTBF in hours
|
383,760
|
|
Compliant Standards
|
· IEEE 802.1D Spanning Tree Protoco
· IEEE 802.1p CoS Prioritization
· IEEE 802.1Q VLAN
· IEEE 802.1s
· IEEE 802.1w
· IEEE 802.1X
· IEEE 802.1X-Rev
· IEEE 802.11
· IEEE 802.1ab (LLDP)
· IEEE 802.3ad
· IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
· IEEE 802.3 10BASE-T
· IEEE 802.3u 100BASE-TX
· IEEE 802.3ab 1000BASE-T
· IEEE 802.3z 1000BASE-X
· RMON I and II standards
· SNMP v1, v2c, and v3
|
|
System software / license
|
|
System software
|
IOS IP Base (Upgradable)
|
|
EnergyWise license
|
ENERGY-MGMT, ENERGY-MGT-100-K9
|
|
Software license
|
· C3650-48-S-E: IP Base to IP Services RTU paper license
· L-C3650-48-S-E: IP Base to IP Services RTU electronic license
|
|
Access Point Licenses
|
· L-LIC-CT3650-UPG: Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery)
· L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
· L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
· LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
|
|
Features
|
· EEM · RPS Support · IP service-level agreements (SLAs) · Advanced IP unicast routing protocols
· Jumbo Frames · VLANS · Voice Vlan · VTPv2 · CDPv2 · LLDP · 802.3ad LACP and PAgP · PVST/PVST+
· 802.1W/802.1S · Port Fast/Uplink Fast · Dynamic Trunking Protocol (DTP) · port CoS Trust and Override
· Trusted Boundary · ACL Classification · ingress Policing · Auto QoS · Per VLAN policies · 802.1p queues
· Scheduling · Priority Queuing · Configure CoS Priority Queues · Configure CoS Priority Queues
· Configure Queue Weights · Configure Buffers and Thresholds · Class & Policy Maps · Modify CoS and DSCP Mapping
· Weighted Tail Drop · IGMPv1,v2,v3 and MLDv1, v2 · DHCP server · DSCP transparency · HSRP, VRRP, BLGP
· RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 · VRF-lite · PIM-SM/DM, PIM sparse-dense
mode, SSM · Flexible Netflow
|
|
Advanced Network security
|
· Port security · DHCP snooping · Dynamic ARP inspection (DAI) · IP source guard
· The Unicast Reverse Path Forwarding (uRPF)
· Bidirectional data support on a SPAN · User authentication
· Private VLAN · Router and VLAN ACLs · complete identity and security
· Multidomain authentication · MAC address notification
· IGMP filtering · Cisco security VLAN ACL
· Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
· Port-based ACLs · TrustSec SXP · IEEE 802.1ae
· TACACS+ and RADIUS authentication · Cisco standard and extended IP security router ACLs
· Bridge protocol data unit (BPDU) Guard
· Spanning Tree Root Guard (STRG) · Wireless end-to-end security
|
|
Management
|
· BRIDGE-MIB · CISCO-AUTH-FRAMEWORK-MIB
· CISCO-BGP4-MIB, BGP4-MIB · CISCO-BRIDGE-EXT-MIB
· CISCO-BULK-FILE-MIB · CISCO-CABLE-DIAG-MIB
· CISCO-CALLHOME-MIB · CISCO-CEF-MIB
· CISCO-CIRCUIT-INTERFACE-MIB
· CISCO-ENTITY-VENDORTYPE-OID-MIB
· CISCO-CONTEXT-MAPPING-MIB
· CISCO-DEVICE-LOCATION-MIB · CISCO-DHCP-SNOOPING-MIB
· CISCO-EIGRP-MIB
· CISCO-EMBEDDED-EVENT-MGR-MIB
· CISCO-ENTITY-FRU-CONTROL-MIB · CISCO-ENTITY-SENSOR-MIB
· ENTITY-MIB · CISCO-ERR-DISABLE-MIB
· CISCO-CONFIG-COPY-MIB · CISCO-FLOW-MONITOR-MIB
· CISCO-FTP-CLIENT-MIB · CISCO-HSRP-EXT-MIB
· CISCO-HSRP-MIB · CISCO-IETF-ISIS-MIB
· CISCO-IF-EXTENSION-MIB · CISCO-IGMP-FILTER-MIB
· CISCO-CONFIG-MAN-MIB · CISCO-IP-CBR-METRICS-MIB
· CISCO-IPMROUTE-MIB · CISCO-IP-STAT-MIB
· CISCO-IP-URPF-MIB · CISCO-L2L3-INTERFACE-CONFIG-MIB
· CISCO-LAG-MIB · CISCO-LICENSE-MGMT-MIB
· CISCO-MAC-AUTH-BYPASS-MIB · CISCO-MAC-NOTIFICATION-MIB
· CISCO-MDI-METRICS-MIB · CISCO-FLASH-MIB · CISCO-OSPF-MIB
· CISCO-OSPF-TRAP-MIB · CISCO-PAE-MIB · CISCO-PAGP-MIB
· CISCO-PIM-MIB · CISCO-PING-MIB · CISCO-PORT-QOS-MIB
· CISCO-PORT-SECURITY-MIB· CISCO-PORT-STORM-CONTROL-MIB
· CISCO-POWER-ETHERNET-EXT-MIB · CISCO-PRIVATE-VLAN-MIB
· CISCO-PROCESS-MIB · CISCO-PRODUCTS-MIB· CISCO-RF-MIB
· CISCO-RTP-METRICS-MIB · CISCO-RTTMON-MIB
· CISCO-SMART-INSTALL-MIB
· CISCO-SNMP-TARGET-EXT-MIB · CISCO-STACKMAKER-MIB
· CISCO-MEMORY-POOL-MIB · CISCO-STP-EXTENSIONS-MIB
· CISCO-SYSLOG-MIB · CISCO-TCP-MIB · CISCO-UDLDP-MIB
· CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB · CISCO-VLAN-MEMBERSHIP-MIB
· CISCO-VTP-MIB · EtherLike-MIB
· HC-RMON-MIB · IEEE8021-PAE-MIB · IEEE8023-LAG-MIB
· IF-MIB · IGMP-MIB · IGMP-STD-MIB · IP-FORWARD-MIB
· IP-MIB · IPMROUTE-STD-MIB · LLDP-EXT-MED-MIB
· LLDP-MIB · NOTIFICATION-LOG-MIB
· OLD-CISCO-MEMORY-MIB · CISCO-CDP-MIB
· POWER-ETHERNET-MIB · RMON2-MIB
· RMON-MIB · SNMP-COMMUNITY-MIB · SNMP-FRAMEWORK-MIB
· SNMP-MPD-MIB · SNMP-NOTIFICATION-MIB · SNMP-PROXY-MIB
· SNMP-TARGET-MIB · SNMP-USM-MIB · SNMPv2-MIB
· SNMP-VIEW-BASED-ACM-MIB · TCP-MIB · UDP-MIB
· CISCO-IMAGE-MIB · CISCO-STACKWISE-MIB
· AIRESPMACE-WIRELESS-MIB · CISCO-LWAPP-IDS-MIB
· CISCO-LWAPP-AP-MIB · CISCO-LWAPP-CCX-RM-MIB
· CISCO-LWAPP-CLIENT-ROAMING-MIB
· CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB
· CISCO-LWAPP-DOT11-CCX-CLIENT-MIB
· CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB
· CISCO-LWAPP-DOT11-CLIENT-MIB · CISCO-LWAPP-DOT11-MIB
· CISCO-LWAPP-DOWNLOAD-MIB · CISCO-LWAPP-LINKTEST-MIB
· CISCO-LWAPP-MFP-MIB · CISCO-LWAPP-MOBILITY-EXT-MIB
· CISCO-LWAPP-QOS-MIB · CISCO-LWAPP-REAP-MIB
· CISCO-LWAPP-ROGUE-MIB · CISCO-LWAPP-RRM-MIB
· CISCO-LWAPP-SI-MIB · CISCO-LWAPP-TSM-MIB
· CISCO-LWAPP-WLAN-MIB · CISCO-LWAPP-WLAN-SECURITY-MIB
|
|
Technical Support and Services
|
· Cisco SMARTnet Service · Cisco Smart Foundation Service · Cisco SP Base Service
· Cisco Focused Technical Support Services
|
|
Environmental Ranges
|
|
With AC power supply
Operating environment and altitude
|
|
Operating temperature up to 5000 ft (1500 m)
|
23ºF to 113ºF (-5ºC to +45ºC)
|
|
Operating temperature up to 10,000 ft (3000 m)
|
23ºF to 104ºF (-5ºC to +40ºC)
|
|
Short-term exception at sealevel with single fan failure
|
23ºF to 113ºF (-5ºC to +45ºC)
|
|
Short-term exception up to 5000 feet (1500 m)
|
23ºF to 122ºF (-5ºC to 50ºC)
|
|
Short-term exception up to 10,000 feet (3000 m)
|
23ºF to 113ºF (-5ºC to 45ºC)
|
|
With DC power supply
Operating environment and altitude (NEBS)
|
|
Operating temperature up to 6000 ft (1800 m)
|
23ºF to 113ºF (-5ºC to +45ºC)
|
|
Operating temperature up to 10,000 ft (3000 m)
|
23ºF to 104ºF (-5ºC to +40ºC)
|
|
Operating temperature up to 13,000 ft (4000m)
|
23ºF to 95ºF (-5ºC to 35ºC)
|
|
Short-term exception up to 6,000 feet (1800 m)
|
23ºF to 131ºF (-5ºC to +55ºC)
|
|
Short-term exception up to 10,000 feet (3000 m)
|
23ºF to 122ºF (-5ºC to +50ºC)
|
|
Short-term exception up to 13,000 feet (4000 m)
|
23ºF to 113ºF (-5ºC to +45ºC)
|
|
Short-term exception at sealevel with single fan failure
|
23ºF to 113ºF (-5ºC to +45º)
|
|
Storage environment
|
-40ºF to 160ºF (-40ºC to 70ºC)
|
|
Operating altitude
|
Up to 16,400 Feet (Up to 5000m)
|
|
Storage altitude
|
Up to 16,400 Feet (Up to 5000m)
|
|
Operating relative humidity
|
5% to 96% noncondensing
|
|
Storage relative humidity
|
5% to 96% noncondensing
|
|
Short-term exception at sealevel with single fan failure
|
23ºF to 113ºF
|
|
Storage environment
|
-40ºF to 160ºF
|
