R8854 S2100 2100MHZ MICRO RADIO REMOTE UNIT

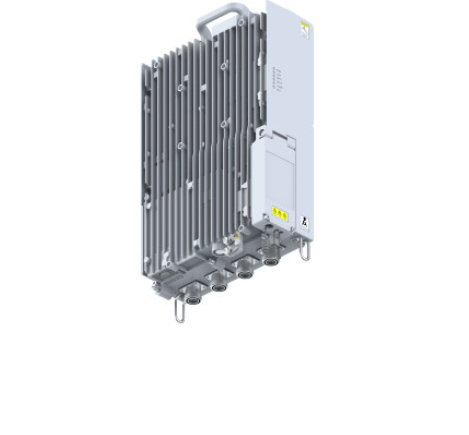

Large Image : R8854 S2100 2100MHZ MICRO RADIO REMOTE UNIT

Product Details:

Place of Origin:	China
Brand Name:	ZTE
Certification:	CE
Model Number:	R8854 S2100
Document:	LONRISE EQUIPMENT Company ...le.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Delivery Time:	3-5 Days
Payment Terms:	T/T,Western Union

Contact Now

R8854 S2100 2100MHZ MICRO RADIO REMOTE UNIT

Description

Brand:	ZTE	Model:	R8854 S2100
Condition:	Used	Warranty:	3 Months
Lead Time:	1-3 Days	Delivery Time:	3-5 Days
Origin:	China	Usage:	Base Station

Overview

The ZXSDR R8854 is a 4T4R Remote Radio Unit (RRU) developed by ZTE. Designedbased on the RRU unified platform, the ZXSDR R8854 supports GSM/UMTS/LTE singlemode or multi-mode. This unit can provide S9000, S1800, S2100, and S2600 LTE frequencies.

Key Specifications — R8854 / S2100 Variant (Approximate / Derived)

Parameter	Value / Notes
General / Functionality	It is a 4T4R RRU (4 transmit & 4 receive chains)
Operating Bands / Variant	“S2100” indicates the 2100 MHz band variant.
Supported Modes / Multi-mode	Supports GSM / UMTS / LTE in single- or multi-mode, depending on configuration
Bandwidth / LTE Bandwidths	1.4, 3, 5, 10, 15, 20 MHz supported
Total Output Power	4 × 40 W (i.e. up to 40 W per TX chain)
Receiver Sensitivity	Examples for LTE (single antenna / dual / four antennas) in relevant bands: – For LTE B3 / B7: –106.4 dBm / –109.2 dBm / –112 dBm – For GSM B3: –113.5 dBm (single) / –115.5 dBm (dual)
Power Supply / Input	DC: –48 V (acceptable range somewhere in –37 V to –60 V) Integrated DC lightning protection (20 kA)
Power Consumption	For LTE single mode: ~290 W (average) and ~515 W (peak) for S1800/S2100 variants In dual-mode configurations (G/L, U/L), somewhat higher consumption (e.g. 345 W average, 525 W peak) for S2100 variant in UMTS/LTE dual mode
Physical / Mechanical	Dimensions: 415 × 296 × 104 mm (HxWxD) Weight: ~15 kg (for many R8854 variants) Volume: 12 L (typical)
Interfaces / Ports	Antenna interfaces: 4 ports (ANT1–ANT4), TX/RX (50 Ω DIN / NSBT) CPRI / optical interfaces: 2 × LC optical SFP ports for connection to BBU or cascading Power input: 2-pin custom connector AISG / MON (monitoring) and O&M Ethernet (LMT) via DB15 connector Grounding: protective ground terminal (e.g. 16 mm² terminal)
Environmental / Operating Conditions	Operating temperature: –40 °C to +55 °C Relative humidity: 5% to 100% (condensing) Dust / water protection: IP65 rating Ground / earth requirements: ≤5 Ω earth resistance typical; in low thunderstorm regions less than 10 Ω acceptable
Reliability / MTBF / Availability	MTBF ≥ 499,000 hours MTTR ≈ 1 hour Availability: ≥ 99.999800%

R8854 S2100 2100MHZ MICRO RADIO REMOTE UNIT 2
