RRU5502 BSJ 4T4R Dual-Band Radio Unit 1800/2100MHz 80W

Large Image : RRU5502 BSJ 4T4R Dual-Band Radio Unit 1800/2100MHz 80W

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE
Model Number:	5502BSJ
Document:	LONRISE EQUIPMENT Company ...le.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Delivery Time:	1-3 Days
Payment Terms:	T/T,Western Union

Contact Now

RRU5502 BSJ 4T4R Dual-Band Radio Unit 1800/2100MHz 80W

Description

Model Number:	5502 BSJ	Type:	RRU
Single Gross Weight:	30.0 Kg	Item Weight:	15.0 Kg
Package Size:	80cm 50 Cm 30 Cm	Warranty:	3 Months
MOQ:	1PC	Brand:	H
Highlight:	RRU5502 dual-band radio unit , 4T4R radio unit 1800/2100MHz , 80W radio unit with warranty

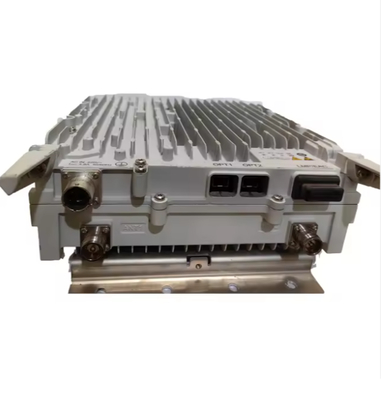

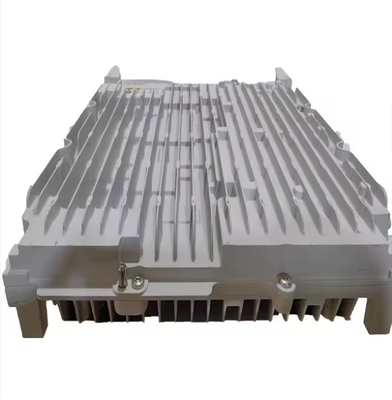

RRU5502 Outdoor Remote Radio Unit

Model: 5502BSJ HW RRU5502 02312BSJ WD5MBW5502GB

The RRU5502 is an outdoor remote radio unit (RRU) used in distributed base station architectures. It handles radio frequency (RF) amplification, modulation/demodulation, and interfaces to antennas and baseband units. Designed for outdoor deployment near antennas, it supports multiple carriers and RATs with rugged environmental specifications.

Technical Specifications

Frequency Bands	Band 3 (1800 MHz): RX 1710-1785 MHz, TX 1805-1880 MHz Band 1 (2100 MHz): RX 1920-1980 MHz, TX 2110-2170 MHz
Supported RATs / Carriers Capacity	UMTS (2100 MHz) - supports up to 8 UMTS carriers LTE-FDD - supports 3 carriers in single band or 4 carriers in dual band (1800 + 2100 MHz) LTE bandwidth options: 5, 10, 15, or 20 MHz per carrier LTE NB-IoT supported (1800 MHz band)
Receiver Sensitivities	GSM 1800: ~ -114.0 dBm UMTS 2100: ~ -125.8 dBm LTE FDD (1800/2100): ~ -106.7 dBm LTE NB-IoT (1800): ~ -127.3 dBm
Transmit / Output Power	LTE-FDD single band (4T4R): up to 4 × 80 W per LTE carrier Dual-band configurations: reduced power (e.g., 4 × 40 W) UMTS (2100): ~60 W per carrier (or 30 W in some configurations)
Power Input & Consumption	Power supply: −48 V DC (operating range −36 V to −57 V DC) Typical consumption (dual-band, 50% load): ~735 W
Physical Specifications	Dimensions: 480 mm × 356 mm × 140 mm (H × W × D) Weight: ~25 kg
Interfaces / Ports	RF ports: 4 connectors (4.3-10 type) CPRI ports: 2 ports (1.25/2.5/4.9/9.8 Gbps) RET control port (remote electrical tilt)
Environmental Specifications	Operating Temperature: −40°C to +55°C (no solar load) Protection: IP65 rated Altitude: Up to 4,000 m without derating

Additional Features

Supports simultaneous operation of multiple RATs (GSM + UMTS + LTE)
Flexible CPRI topology (star, chain, or dual-star)
Power spectral density balancing between carriers

Note: Specifications may vary depending on configuration and operating conditions.
