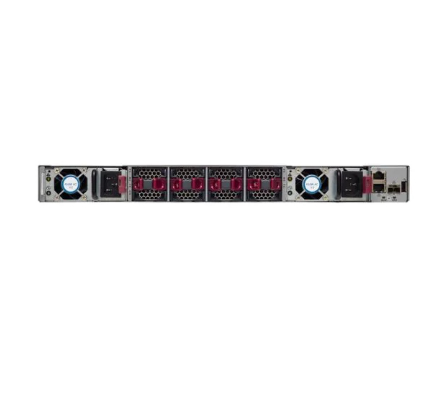

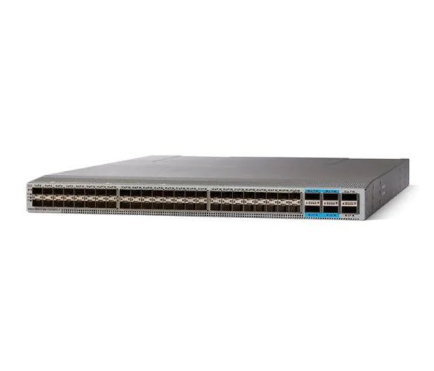

N9K-C92160YC-X Nexus 9K Fixed With 48p 10G SFP+ And 6p 40G OR 4p 100G

Part Number

N9K-C92160YC-X

Ports

48 x 10- and 25-Gbps SFP+ and 6 QSFP+ ports (4 are 100-Gbps capable)

Supported speeds

1, 10, and 25 Gbps on SFP+ ports

10, 25, 40, and 100 Gbps on QSFP+ ports

Port configuration

48 x 10/25-Gbps ports for downlinks; 4 of the 6 uplink ports are 100-Gbps capable. Ports 50 and 52 can be individually configured into 1 x 100 Gbps, 4 x 10 Gbps, 4 x 25 Gbps, 1 x 40 Gbps, or 2 x 50 Gbps

CPU

2 cores

System memory

16G

SSD drive

24G

Shared system buffer

20MB

Management ports

2 ports: 1 RJ-45 and 1SFP

USB ports

1

RS-232 serial ports

1

Power supplies (up to 2)

650W AC, 930W DC, or 1200W AC/HVDC

Physical dimensions

(H x W x D)

1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm)

Weight (without power supplies or fans)

14.12 lb (6.4 kg)
