N9K-C93180YC-EX Nexus 9K Fixed with 48p 1/10G/25G SFP and 6p 40G/100G QSFP28

Large Image : N9K-C93180YC-EX Nexus 9K Fixed with 48p 1/10G/25G SFP and 6p 40G/100G QSFP28

Product Details:

Place of Origin:	CHINA
Brand Name:	CISCO
Certification:	CE
Model Number:	N9K-C93180YC-EX

Payment & Shipping Terms:

Delivery Time:	2-3 days
Payment Terms:	T/T

Contact Now

N9K-C93180YC-EX Nexus 9K Fixed with 48p 1/10G/25G SFP and 6p 40G/100G QSFP28

Description

Model:	N9K-C9336PQ	Description:	Nexus 9K Fixed With 48p 1/10G/25G SFP And 6p 40G/100G QSFP28
Ports:	48 X 10/25-Gbps And 6 X 40/100-Gbps QSFP28 Ports	Downlink Supported Speeds:	1/10/25-Gbps Speeds
CPU:	4 Cores	Layer Type:	Layer 2 And Layer 3
Manageable:	Yes	Stackable:	Yes
Rack Unit:	/

N9K-C93180YC-EX Overview

N9K-C93180YC-EX is one of the Cisco Nexus 9300-EX switches. Cisco Nexus 9300-EX platforms are the next generation of fixed Cisco Nexus 9000 Series Switches. The new platforms support cost-effective cloud-scale deployments, an increased number of endpoints, and cloud services with wire-rate security and telemetry. The platforms are built on modern system architecture designed to provide high performance and meet the evolving needs of highly scalable data centers and growing enterprises.

Quick Spec

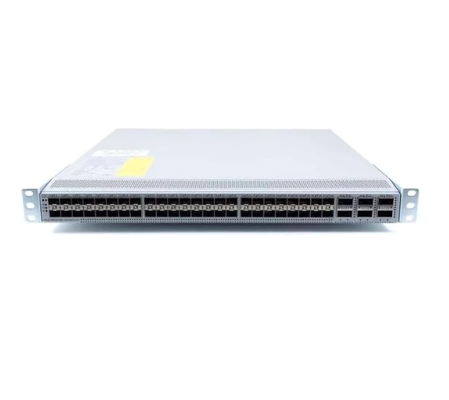

Figure 1 shows the appearance.

N9K-C93180YC-EX Nexus 9K Fixed with 48p 1/10G/25G SFP and 6p 40G/100G QSFP28 0

Table 1 shows the quick spec.

Part Number	N9K-C93180YC-EX
Ports	48 x 10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports
Downlink supported speeds	1/10/25-Gbps speeds
CPU	4 cores
System memory	24 GB
SSD drive	64 GB
System buffer	40 MB
Management ports	2 ports: 1 RJ-45 and 1 SFP
USB ports	1
RS-232 serial ports	1
Power supplies (up to 2)	650W AC, 930W DC, or 1200W HVAC/HVDC
Typical power (AC/DC)	210W
Maximum power (AC/DC)	470W
Physical dimensions (H x W x D)	1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm)
Weight (without power supplies or fans)	17.2 lb (7.8 kg)

Product Details

Figure 2 shows the front panel of N9K-C93180YC-EX.

N9K-C93180YC-EX Nexus 9K Fixed with 48p 1/10G/25G SFP and 6p 40G/100G QSFP28 1

Optional Add-ons

Model Number	Description
N9K-PUV-1200W	1200W AC Power Supply for Cisco Nexus Series
SFP-10G-SR	10GBASE-SR SFP+ Module for short-range transmission
N9K-MEM-32G	32GB Memory Upgrade Kit for Cisco Nexus 9300 Series

Note:

①	48 x 10/25-Gigabit SFP+ ports to other devices
②	6 x 40/100-Gigabit QSFP28 optical ports for uplink connections to aggregation switches

Figure 3 shows the back panel of N9K-C93180YC-EX.

N9K-C93180YC-EX Nexus 9K Fixed with 48p 1/10G/25G SFP and 6p 40G/100G QSFP28 2

Note:

①	Power Supply	⑤	Chassis LEDs (Beacon [BCN] and Status [STS])
②	4 x Fan Module	⑥	USB port used for saving or copying functions
③	Power Supply	⑦	Out-of-band management port (SFP port)
④	Out-of-band management port (RJ-45 port)	⑧	Console port (RS232 port)

N9K-C93180YC-EX Specification

Model

N9K-C93180YC-EX

Brand

Cisco

Ports

48 x 10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports

Downlink Supported Speeds

1/10/25-Gbps speeds

CPU

4 cores

System Memory

24 GB

SSD Drive

64 GB

System Buffer

40 MB

Management Ports

2 ports: 1 RJ-45 and 1 SFP

USB Ports

RS-232 Serial Ports

Power Supplies (up to 2)

650W AC, 930W DC, or 1200W HVAC/HVDC

Typical Power (AC/DC)

210W

Maximum Power (AC/DC)

470W

Input Voltage (AC)

100 to 240V

Input Voltage (HVAC)

200 to 277V

Input Voltage (DC)

–48 to –60V

Input Voltage (HVDC)

–240 to –380V

Frequency (AC)

50 to 60 Hz

Fans

Airflow

Port-side intake and exhaust

Physical Dimensions (H x W x D)

1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm)

Acoustics

48.5 dBA at 40% fan speed, 64.9 dBA at 70% fan speed, and 77.8 dBA at 100% fan speed

RoHS Compliance

Yes

MTBF

390,330 hours

Maximum Number of Longest Prefix Match (LPM) Routes

896,000

Maximum Number of IP Host Entries

896,000

Maximum Number of MAC Address Entries

256,000

Maximum Number of Multicast Routes

32,000

Number of IGMP Snooping Groups

Shipping: 8,000
Maximum: 32,000

Maximum Number of Cisco Nexus 2000 Series Fabric Extenders per Switch

Maximum Number of ACL Entries

Per slice of the forwarding engine: 4000 ingress, 2000 egress. Total (2 forwarding slices): 8000 ingress, 4000 egress

Maximum Number of VLANs

3,967

Number of VRF Instances

Shipping: 1,000
Maximum: 16,000

Maximum Number of ECMP Paths

Maximum Number of Port Channels

512

Maximum Number of Links in a Port Channel

Number of Active SPAN Sessions

Maximum Number of VLAN's in Rapid per-VLAN Spanning Tree (RPVST) Instances

3,967

Maximum Number of HSRP Groups

490

Number of NAT Entries

1,023

Maximum Number of MST Instances

Flow-table Size used for Cisco Tetration Analytics Platform

64,000

Operating Temperature

32 to 104°F (0 to 40°C)

Nonoperating (Storage) Temperature

–40 to 158°F (–40 to 70°C)

Humidity

5 to 95% (noncondensing)

Altitude

0 to 13,123 ft (0 to 4000m)

N9K-C93180YC-EX Nexus 9K Fixed with 48p 1/10G/25G SFP and 6p 40G/100G QSFP28 3
