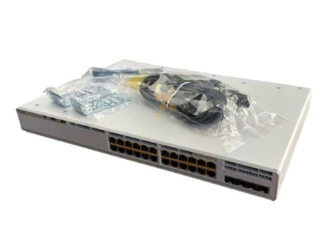

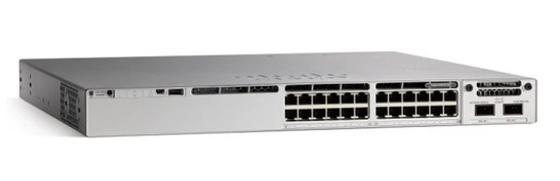

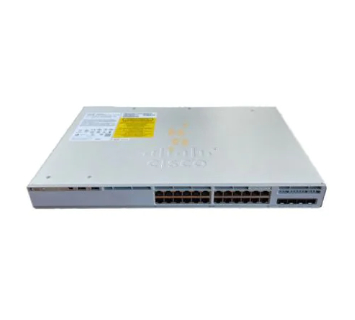

The Cisco C9200L-24P-4G-A is a robust enterprise-grade switch engineered for advanced, secure, and scalable business networking across diverse environments. Belonging to the renowned Cisco 9200 family, this model leverages a fixed configuration platform to deliver optimal network performance for mid-sized businesses.
Model: C9200L-24P-4G-A
Brand: Cisco
Series: Catalyst 9200L Series
Chassis Dimensions: Base Unit: 1.73 × 17.5 × 11.3 in (4.4 × 44.5 × 28.8 cm)
PoE Budget: 370W total PoE power, supports 802.3af/at PoE+
Switching Capacity: 96 Gbps
Forwarding Rate: 72 Mpps
Buffer Memory: 16 MB shared
MAC Address Table: 32,000 entries
VLAN Support: 4,096 active VLANs, 1,500 STP instances
MTBF: 392,210 hours (~44.8 years)
Minimum IOS-XE: 16.12.1
Layer 3 Routing: OSPF, EIGRP, BGP, IS-IS, PIM, VRF-lite
Security Features: 802.1X, MACsec, TrustSec, Flexible NetFlow, sFlow
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Humidity: 5% to 90% non-condensing
Altitude: Up to 10,000 ft (3,000 m)
Noise Level: LpA 42 dB typical, 45 dB max
Management Interfaces: 1 × RJ45 console (10/100), 1 × RJ45 management (10/100)
Supported Protocols: SNMPv3, NETCONF/YANG, RESTCONF, gRPC
Compliance: UL 60950-1, EN 62368-1, FCC Part 15 Class A, EN 55032, RoHS
