Product Details:
|
Model: | C9500-24Y4C-E | DRAM: | 16 GB |
---|---|---|---|
Input Voltage: | 90 To 264 VAC | Dimensions (H X W X D): | 1.73 X 17.5 X 18.0 In |
Power Supply Selection: | C9K-PWR-650WAC-R Or C9K-PWR-930WDC-R | Rack Units (RU): | 1 RU |
Highlight: | Cisco Catalyst 9500 switch 24-port,Cisco Ethernet switch 40/100G ports,Catalyst 9500 switch with warranty |

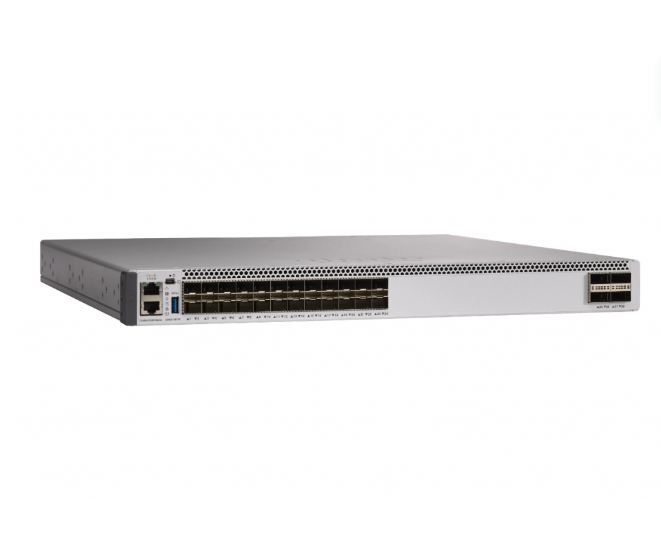

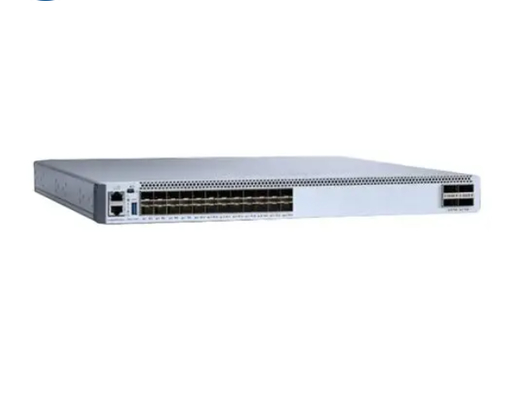

The Cisco C9500-24Y4C-E is an enterprise-class switch engineered to deliver top-tier core and aggregation layer performance for modern network infrastructures. The Cisco networking suite continues its innovation with the 9500 series, making the C9500-24Y4C-E a cornerstone for organizations seeking secure, scalable, and high-throughput switching.
Attribute | Value |
---|---|
Model | C9500-24Y4C-E |
Switching capacity | Up to 2 Tbps |
Forwarding rate | Up to 1 Bpps |
Total MAC addresses | Up to 82,000 |
IPv4 routes | Up to 212,000 indirect + direct, Up to 90,000 host/ARP |
IPv6 routes | Up to 212,000 indirect + direct, Up to 90,000 host |
QoS ACL scale | Up to 16,000 |
Security ACL scale | Up to 27,000 |
FNF entries | Up to 98,000 |
DRAM | 16 GB |
Flash | 16 GB |
VLAN IDs | 4000 |
Switched Virtual Interfaces (SVIs) | 4000 |
Jumbo frame | 9216 bytes |
Attribute | Value |
---|---|
Dimensions (H x W x D) | 1.73 x 17.5 x 18.0 in |
Rack units (RU) | 1 RU |
Input voltage | 90 to 264 VAC |
Power Supply Selection | C9K-PWR-650WAC-R or C9K-PWR-930WDC-R |
Operating temperature | 32° to 104°F (0° to 40°C) |
Storage temperature | -4° to 149°F (-20° to 65°C) |
Relative humidity | 5% to 90% operating, 5% to 95% nonoperating |
Altitude | Up to 13,000 feet at 40°C |
MTBF (hours) | 336,780 |
