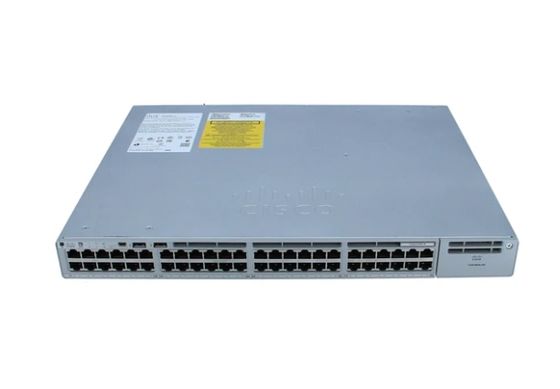

Large Image :  C9200-48T-E Catalyst 9200 48-port Data Switch Network Essentials

Product Details:
Place of Origin: China
Brand Name: Cisco
Certification: CE
Model Number: C9200-48T-E
Document: LONRISE EQUIPMENT Company ...le.pdf
Payment & Shipping Terms:
Delivery Time: 1~3 days
Payment Terms: T/T,Western Union
Contact Now

C9200-48T-E Catalyst 9200 48-port Data Switch Network Essentials

Description
Highlight:

C9200-48T-E Catalyst 48-port switch

,

Cisco Catalyst 9200 Ethernet switch

,

48-port network switch with warranty

C9200-48T-E Overview


 C9200-48T-E is the Catalyst 9200 48-port Data Switch, withNetwork Essentials software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments.

C9200-48T-E Catalyst 9200 48-port Data Switch Network Essentials 0C9200-48T-E Catalyst 9200 48-port Data Switch Network Essentials 1

C9200-48T-E Specification

Model
C9200-48T-E
Brand
Cisco
Series
Catalyst 9200 Series
Product Type
Fixed Configuration Switch
License Level
Essentials (E)
Chassis Dimensions (H×W×D, Base Unit)
1.73 × 17.5 × 13.8 in (4.4 × 44.5 × 35.0 cm)
Chassis Dimensions (With FEP/Fan)
1.73 × 17.5 × 15.4 in (4.4 × 44.5 × 39.1 cm)
Fixed Ports
48 × 10/100/1000BASE-T (RJ45)
Uplink Ports
4 × 1G SFP (included with C9200-NM-4X1G module)
Uplink Options
Optional 4 × 1G SFP or 4 × 10G SFP+ via network modules
Switching Capacity
96 Gbps
Forwarding Rate
72 Mpps
Buffer Memory
16 MB shared
MAC Address Table
32,000 entries
VLAN Support
4,096 active VLANs, 1,500 STP instances
Power Supply
125W AC (PWR-C5-125WAC or PWR-C6-125WAC)
Input Voltage
100–240V AC, 50/60Hz
MTBF
571,440 hours (~65 years)
Redundancy
Hot-swappable fan tray, optional 1+1 power supply redundancy
Licensing
Essentials (pre-installed)
Minimum IOS-XE Version
16.12.1
Layer 3 Routing
Static, RIPv1/v2, OSPF, EIGRP, limited BGP support
Security
ACLs (32,000 hardware entries), 802.1X, DHCP snooping
Operating Temperature
Standard: 32°F to 104°F (0°C to 40°C); Short-term: -5°C to 50°C (up to 96 hours/year)
Humidity
5% to 90% non-condensing
Altitude
Up to 10,000 ft (3,000 m)
Noise Level (25°C ambient)
LpA: 42 dB typical, 45 dB max; LwA: 5.3 B typical, 5.6 B max
Management Interfaces
1 × RJ45 console (10/100), 1 × RJ45 management (10/100)
Management Protocols
SNMPv1/2c/3, SSHv1/v2, NETCONF/YANG
Compliance
Safety: UL 60950-1, EN 62368-1; EMC: FCC Part 15 Class A, EN 55032; RoHS compliant
Power Consumption (No PoE, 115V AC)
Idle: 36.57 W; 50% Traffic: 45.63 W; 100% Traffic: 55.87 W
Power Consumption (No PoE, 230V AC)
Idle: 36.99 W; 50% Traffic: 45.71 W; 100% Traffic: 55.04 W
