C9200-48T-E Overview
C9200-48T-E is the Catalyst 9200 48-port Data Switch, withNetwork Essentials software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise C it is secure, always on, and IT simplified.
Quick Spec
Table 1 shows the quick spec.
| Model |
C9200-48T-E |
| Downlinks total 10/100/1000 or PoE+ copper ports |
48 ports data |
| Uplink configuration |
Modular uplink options |
| Default primary AC power supply |
PWR-C6-125WAC |
| Fans |
FRU redundant |
| Software |
Network Essentials |
| Stacking bandwidth |
160 Gbps |
| DRAM |
4 GB |
| Flash |
4 GB |
| Switching capacity |
176 Gbps |
| Forwarding rate |
261.9 Mpps |
| Chassis Dimensions |
1.73 x 17.5 x 13.8 in
4.4 x 44.5 x 35.0 cm
|
Product Details
Catalyst 9200 series provides these highlights:
- ● Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
- ● Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
- ● Flexible downlink options with data or PoE+
- ● Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
- ● UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
- ● Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
- ● Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
- ● Advanced network monitoring using Full Flexible NetFlow
- ● Cisco Software-Defined Access (SD-Access):
- ● Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
- ● Network assurance and improved resolution time through Cisco DNA Center
- ● Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
- ● Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming
- ● ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries telemetry
Supported Products
Table 2 shows the recommended supported products.
Compare to Similar Items
Table 3 shows the comparison.
| Model |
Description |
| C9200-48T-A |
Catalyst 9200 48-port Data Switch, Network Advantage |
| C9200-48T-E |
Catalyst 9200 48-port Data Switch, Network Essentials |
| C9200-48P-A |
Catalyst 9200 48-port PoE+ Switch, Network Advantage |
| C9200-48P-E |
Catalyst 9200 48-port PoE+ Switch, Network Essentials |
Get More Information
Do you have any question about the Cisco C9200-48T-E?
Contact us now via Live Chat or sales@router-switch.com.

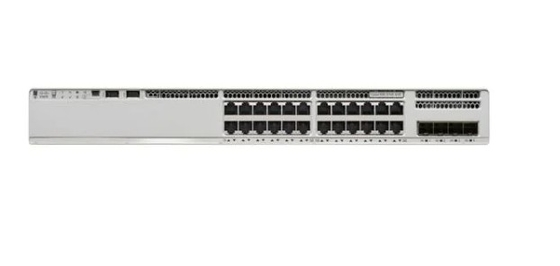

C9200-24P-A Overview
C9200-24P-A is the Catalyst 920024-port PoE+ Switch, with Network Advantage software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise C it is secure, always on, and IT simplified.
Quick Spec
Table 1 shows the quick spec.
| Model |
C9200-24P-A |
| Downlinks total 10/100/1000 or PoE+ copper ports |
24-port PoE+ |
| Uplink configuration |
Modular uplink options |
| Default primary AC power supply |
PWR-C6-600WAC |
| Fans |
FRU redundant |
| Software |
Network Advantage |
| Stacking bandwidth |
160 Gbps |
| DRAM |
4 GB |
| Flash |
4 GB |
| Switching capacity |
128 Gbps |
| Forwarding rate |
190.4 Mpps |
| Chassis Dimensions |
1.73 x 17.5 x 13.8in
4.4 x 44.5 x 35.0 cm
|
Product Details
Catalyst 9200 series provides these highlights:
- ● Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
- ● Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
- ● Flexible downlink options with data or PoE+
- ● Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
- ● UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
- ● Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
- ● Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
- ● Advanced network monitoring using Full Flexible NetFlow
- ● Cisco Software-Defined Access (SD-Access):
- ● Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
- ● Network assurance and improved resolution time through Cisco DNA Center
- ● Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
- ● Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming
- ● ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries telemetry
Supported Products
Table 2 shows the recommended supported products.
Compare to Similar Items
Table 3 shows the comparison.
| Product number |
Product description |
| C9200-24T-A |
Catalyst 9200 24-port Data Switch, Network Advantage |
| C9200-24T-E |
Catalyst 9200 24-port Data Switch, Network Essentials |
| C9200-24P-A |
Catalyst 9200 24-port PoE+ Switch, Network Advantage |
| C9200-24P-E |
Catalyst 9200 24-port PoE+ Switch. Network Essentials |
C9200-48T-E Specification
C9200-48T-E Specifications
|
| Performance specifications |
| Virtual Networks |
4 for C9200-24T, C9200-24P, C9200-48T, C9200-48P, C9200- 24PXG, C9200-48PXG, C9200-48PL
32 for C9200-24PB, C9200-48PB
|
| Stacking bandwidth |
160 Gbps |
| Total number of MAC addresses |
32,000 |
| Total number of IPv4 routes (ARP plus learned routes) |
14,000 (10,000 direct routes and 4,000 indirect routes) |
| IPv4 routing entries |
4,000 |
| IPv6 routing entries |
2,000 |
| Multicast routing scale |
1,000 |
| QoS scale entries |
1,000 |
| ACL scale entries |
1,600 |
| Packet buffer per SKU |
6 MB buffers for 24- or 48-port Gigabit Ethernet models, 12MB buffers for 24 or 48 port multigigabit models |
| Flexible NetFlow (FNF) entries |
16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM |
4 GB |
| Flash |
4 GB |
| VLAN IDs |
4096 |
| PVST Instances |
128 |
STP Virtual Ports
(Port *VLANs) for PVST |
13,000 |
STP Virtual Ports
(Port *VLANs) for MST |
13,000 |
| Total Switched Virtual Interfaces (SVIs) |
512 |
| Jumbo frames |
9198 bytes |
| Wireless bandwidth per switch |
Up to 48 Gbps on 24- port and 48-port Gigabit Ethernet model |
| IP SGT binding scale |
8K |
| Number of IPv4 bindings |
8K |
| Number of SGT/DGT policies |
2K |
| Number of SXP Sessions |
200 |
| Bandwidth specifications |
| Switching capacity |
176 Gbps |
| Switch capacity with Stacking |
336 Gbps |
| Forwarding rate |
130.95 Mpps |
| Forwarding rate with Stacking |
250 Mpps |
| Chassis Dimensions |
1.73 x 17.5 x 13.8 Inches |
| Weight |
11.02 Pounds |
| Mean time between failures (hours) |
|
