Product Details:
|
| Model: | C9200L-48PXG-2Y-E | Description: | C9200L-48PXG-2Y-E - Cisco Catalyst 9200 Series Switches |
|---|---|---|---|
| Switch Capacity: | 340 Gbps | Forwarding Capacity: | 252.97 Mpps |
| Number Of Ports: | 48 | Layer: | 2 |
| Manageable: | Yes | Stackable: | Yes |
| Rack Unit: | / |

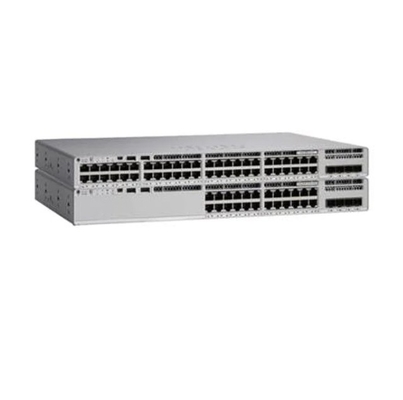

C9200L-48PXG-2Y-E is the C9200L 48-port (8xmGig, 40x1G), 2x25G PoE+, Network Essentials. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise ?C it is secure, always on, and IT simplified.
Table 1 shows the quick spec.
| Model | C9200L-48PXG-2Y-E |
| Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports full POE+ (8 mGig ports up to 10G, 40 ports up to 1G) |
| Uplink configuration | 2x 25G fixed uplinks |
| Default primary AC power supply | PWR-C5-1KWAC |
| Fans | Fixed redundant |
| Software | Network Essentials |
| Stacking bandwidth | 80 Gbps |
| DRAM | 2 GB |
| Flash | 4 GB |
| Switching capacity | 340 Gbps |
| Forwarding rate | 252.97 Mpps |
| Chassis Dimensions |
1.73 x 17.5 x 13.8 in 4.4 x 44.5 x 35.0 cm |
Catalyst 9200 series provides these highlights:
Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
Flexible downlink options with data or PoE+
Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
Advanced network monitoring using Full Flexible NetFlow
Cisco Software-Defined Access (SD-Access):
Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
Network assurance and improved resolution time through Cisco DNA Center
Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries
Table 2 shows the recommended supported products.
| StackWise-80 and StackWise-160 Kit and cables | |
| Product number | Product description |
| C9200L-STACK-KIT= | C9200L Stack Kit Spare |
| STACK-T4-50CM | 50CM Type 3 Stacking Cable |
| STACK-T4-1M | 1M Type 3 Stacking Cable |
| STACK-T4-3M | 3M Type 3 Stacking Cable |
| Power supplies | |
| Product Number | Product Description |
| PWR-C5-1KWAC/2= | 1000WAC power supply spare |
Table 3 shows the comparison.
| Model | Downlinks | Uplinks | Power Supply | Fans |
| C9200L-24PXG-4X-E | 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) | 4x 10G fixed uplinks | PWR-C5-600WAC | Fixed redundant |
| C9200L-48PXG-4X-E | 48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G) | 4x 10G fixed uplinks | PWR-C5-1KWAC | Fixed redundant |
| C9200L-24PXG-2Y-E | 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) | 2x 25G fixed uplinks | PWR-C5-600WAC | Fixed redundant |
| C9200L-48PXG-2Y-E | 48 ports full POE+ (8 mGig ports up to 10G, 40 ports up to 1G) | 2x 25G fixed uplinks | PWR-C5-1KWAC |
Fixed redundant |
