Product Details:
|
| Model: | C9200L-48PXG-4X-E | Description: | Cisco Catalyst 9200 Series Switches C9200L 48-p 12xmGig, 36x1G, 4x10G PoE+, Network Essentials |
|---|---|---|---|
| Switch Capacity: | 392 Gbps | Forwarding Capacity: | 291.66 Mpps |
| Number Of Ports: | 48 | Layer: | 2 |
| Manageable: | Yes | Stackable: | Yes |
| Rack Unit: | / |

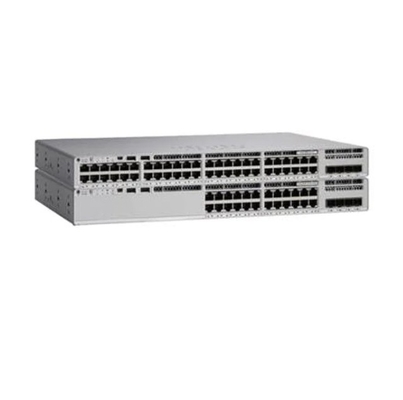

C9200L-48PXG-4X-E is the C9200L 48-p (12xmGig, 36x1G), 4x10G PoE+, Network Essentials. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise ?C it is secure, always on, and IT simplified.
Table 1 shows the quick spec.
| Model | C9200L-48PXG-4X-E |
| Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G) |
| Uplink configuration | 4x 10G fixed uplinks |
| Default primary AC power supply | PWR-C5-1KWAC |
| Fans | Fixed redundant |
| Software | Network Essentials |
| Stacking bandwidth | 80 Gbps |
| DRAM | 2 GB |
| Flash | 4 GB |
| Switching capacity | 392 Gbps |
| Forwarding rate | 291.66 Mpps |
| Chassis Dimensions |
1.73 x 17.5 x 13.8 in 4.4 x 44.5 x 35.0 cm |
Catalyst 9200 series provides these highlights:
Table 2 shows the recommended supported products.
| StackWise-80 and StackWise-160 Kit and cables | |
| Product number | Product description |
| C9200L-STACK-KIT= | C9200L Stack Kit Spare |
| STACK-T4-50CM | 50CM Type 3 Stacking Cable |
| STACK-T4-1M | 1M Type 3 Stacking Cable |
| STACK-T4-3M | 3M Type 3 Stacking Cable |
| Soft Licenses | |
| Product number | Product description |
| C9200L-DNA-P-48 | C9200L DNA Premier Term, 48-Port: Includes Term Licenses for DNA Advantage, 25 ISE Base & 25 ISE Plus Endpoints, 25 Stealthwatch Flows (including Virtual Flow Collector & Management Console). Requires separate purchase of ISE appliance/ISE VM and DNA Center appliance |
| C9200L-DNA-P-48-3Y | C9200L DNA Premier, 48-port, 3Y Term ?C DNA, 25 ISE PLS and ISE BASE, 25 SWATCH |
| C9200L-DNA-P-48 -5Y | C9200L DNA Premier, 48-port, 5Y Term ?C DNA, 25 ISE PLS and ISE BASE, 25 SWATCH |
| C9200L-DNA-P-48 -7Y | C9200L DNA Premier, 48-port, 7Y Term ?C DNA, 25 ISE PLS and ISE BASE, 25 SWATCH |
| Power supplies | |
| Product Number | Product Description |
| PWR-C5-1KWAC/2= | 1000WAC power supply spare |
Table 3 shows the comparison.
| Model | Downlinks | Uplinks | Power Supply | Fans |
| C9200L-24PXG-4X-E | 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) | 4x 10G fixed uplinks | PWR-C5-600WAC | Fixed redundant |
| C9200L-48PXG-4X-E | 48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G) | 4x 10G fixed uplinks | PWR-C5-1KWAC | Fixed redundant |
| C9200L-24PXG-2Y-E | 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) | 2x 25G fixed uplinks | PWR-C5-600WAC | Fixed redundant |
| C9200L-48PXG-2Y-E | 48 ports full POE+ (8 mGig ports up to 10G, 40 ports up to 1G) | 2x 25G fixed uplinks | PWR-C5-1KWAC |
Fixed redundant |
