Product Details:
|
Cisco Catalyst 1000 Series Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco Catalyst 1000 operates on Cisco IOS Software and supports simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
Table 1 shows the Quick Specs.

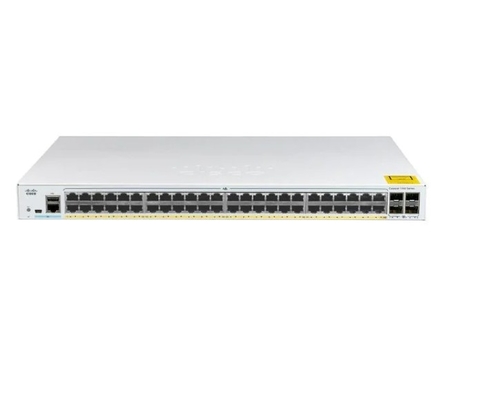

Product Code | C1000-48T-4G-L |
Description | 48x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks |
Gigabit Ethernet ports | 48 |
Uplink interfaces | 4 SFP |
PoE+power budget | |
Fanless | N |
Dimensions (WxDxH in inches) | 17.5 x 10.73 x 1.73 |
CPU | ARM v7 800 MHz |
DRAM | 512 MB |
Flash memory | 256 MB |
Forwarding bandwidth | 52 Gbps |
Switching bandwidth | 104 Gbps |
Forwarding rate(64 byte L3 packets) | 77.38Mpps |
The Cisco Catalyst 1000 Series Switches provides these features:
Table 2 shows the comparison.
Product Code | C1000-48FP-4G-L | C1000-48P-4G-L | C1000-48T-4G-L | C1000-48FP-4X-L | C1000-48P-4X-L | C1000-48T-4X-L |
Description | 48x 10/100/1000 Ethernet PoE+ ports and 740W PoE budget, 4x 1G SFP uplinks | 48x 10/100/1000 Ethernet PoE+ and 370W PoE budget ports, 4x 1G SFP uplinks | 48x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks | 48x 10/100/1000 Ethernet PoE+ ports and 740W PoE budget, 4x 10G SFP+ uplinks | 48x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 10G SFP+ uplinks | 48x 10/100/1000 Ethernet ports, 4x 10G SFP+ uplinks |
Gigabit Ethernet ports | 48 | 48 | 48 | 48 | 48 | 48 |
Uplink interfaces | 4 SFP | 4 SFP | 4 SFP | 4 SFP+ | 4 SFP+ | 4 SFP+ |
PoE+power budget | 740W | 370W | 740W | 370W | ||
Fanless | N | N | N | N | N | N |
Dimensions (WxDxH in inches) | 17.5 x 13.78 x 1.73 | 17.5 x 13.78 x 1.73 | 17.5 x 10.73 x 1.73 | 17.5 x 13.78 x 1.73 | 17.5 x 13.78 x 1.73 | 17.5 x 10.73 x 1.73 |
CPU | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz |
DRAM | 512 MB | 512 MB | 512 MB | 512 MB | 512 MB | 512 MB |
Flash memory | 256 MB | 256 MB | 256 MB | 256 MB | 256 MB | 256 MB |
Forwarding bandwidth | 52 Gbps | 52 Gbps | 52 Gbps | 88Gbps | 88Gbps | 88Gbps |
Switching bandwidth | 104 Gbps | 104 Gbps | 104 Gbps | 176 Gbps | 176 Gbps | 176 Gbps |
Forwarding rate(64 byte L3 packets) | 77.38Mpps | 77.38Mpps | 77.38Mpps | 77.38Mpps | 77.38Mpps | 77.38Mpps |
