Product Details:
|
| Product Description: | C9200L 24T 4G | Uplink Configuration: | 4x 1G Fixed Uplinks |
|---|---|---|---|
| Default Primary AC Power Supply: | PWR-C5-125WAC | Fans: | Fixed Redundant |
| Software: | Network Advantage | Stacking Bandwidth: | 80 Gbps |
| Highlight: | Catalyst 9200L Cisco Switch,24T Cisco Switch,4G Cisco Switch |
||

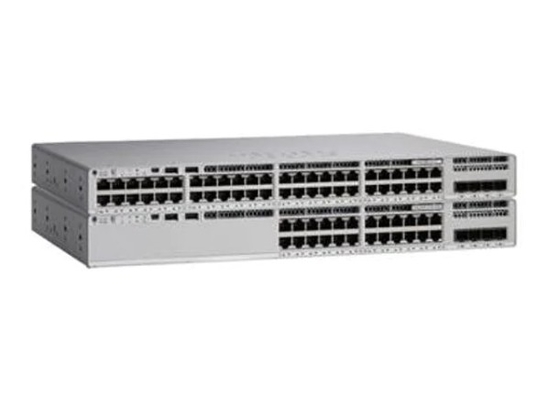

C9200L-24T-4G-A is the Catalyst 9200L 24-port Data 4x1G uplink Switch, with Network Advantage software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise C it is secure, always on, and IT simplified.
Table 1 shows the quick spec.
| Model | C9200L-24T-4G-A |
| Downlinks total 10/100/1000 or PoE+ copper ports | 24 ports data |
| Uplink configuration | 4x 1G fixed uplinks |
| Default primary AC power supply | PWR-C5-125WAC |
| Fans | Fixed redundant |
| Software | Network Advantage |
| Stacking bandwidth | 80 Gbps |
| DRAM | 2 GB |
| Flash | 4 GB |
| Switching capacity | 56 Gbps |
| Forwarding rate | 83.33 Mpps |
| Chassis Dimensions |
1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm |
| Weight | 4.35 Kg |
Catalyst 9200 series provides these highlights:
Table 2 shows the recommended supported products.
| StackWise-80 and StackWise-160 Kit and cables | |
| Product number | Product description |
| C9200-STACK-KIT= | C9200 Stack Kit Spare |
| C9200L-STACK-KIT= | C9200L Stack Kit Spare |
| STACK-T4-50CM | 50CM Type 3 Stacking Cable |
| STACK-T4-1M | 1M Type 3 Stacking Cable |
| STACK-T4-3M | 3M Type 3 Stacking Cable |
| Power supplies | |
| Product Number | Product Description |
| PWR-C5-125WAC/2= | 125WAC power supply spare |
