Product Details:
|
| Name: | AR1220E | Model: | AR1220E Huawei Next Generation AR1200 Series Router |
|---|---|---|---|
| Extended Slots: | 2 SIC Slots | Interface Number: | LAN Interfaces: GE0-GE7 |
| Warrranty: | 1 Year | Shipping: | DHL&FeDex |
| Product Type: | Router | Power Module Type: | Built-in AC Power Module |
| Weight: | 12.45 Kg | ||
| Highlight: | 8GE LAN AR1220E,2GE COMBO AR1220E,2 USB AR1220E |
||
Huawei AR1220E?router is?next-generation, enterprise-class routers based on the Huawei proprietary Versatile Routing Platform (VRP).

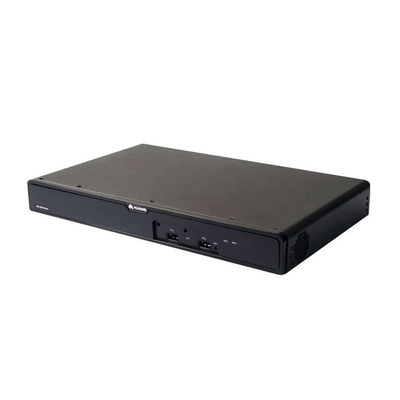

Figure 1 shows the appearance of Huawei Router - AR1220E.
Table 1 shows the Quick Specs.
| Product Code | Huawei Router - AR1220E |
| Memory | 1 GB |
| Flash | 512 MB |
| Service?interfaces (standard configuration) |
WAN interfaces: 2 GE combo interfaces LAN interfaces: 8 10/100/1000M auto-sensing Ethernet electrical interfaces |
| Extended slots | 2 SIC slots |
| Interface number | LAN interfaces: GE0-GE7 |
| Power module type | Built-in AC power module |
| Weight | 12.45 kg |
| Dimensions (W x D x H) | 390.0 mm x 232.5 mm x 44.5 mm |
Figure 2 shows the front panel of Huawei Router - AR1220E.
?
Note:
| ① | Two USB interfaces (host) |
| ② | RST button |
Figure 3?shows the back?panel of Huawei Router - AR1220E.
?
Note:
| ① | Two GE combo interfaces |
| ② | Console interface |
| ③ | Mini USB interface |
| ④ | Eight GE electrical interfaces |
| ⑤ | AC power jack |
| ⑥ | Two SIC slots |
Table 2 shows the recommended elements for the Huawei Router - AR1220E.
| Model | Description |
| FE optical transceiver | |
| SFP-FE-LX-SM1310-BIDI | eSFP,FE,BIDI Single-mode module(TX1310/RX1550,15km,LC) |
| eSFP-FE-LX-SM1310 | eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) |
| S-SFP-FE-LH40-SM1310 | eSFP,FE,Single-mode Module(1310nm,40km,LC) |
| GE optical transceiver | |
| SFP-1000BaseT | Electrical Transceiver,eSFP,GE,Electrical Interface Module(100m,RJ45) |
| eSFP-GE-SX-MM850 | Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC) |
| WAN interface card | |
| AR-1E3T3M-W | 1-Port Channelized/Unchannelized E3/T3 WAN Interface Card |
| xDSL interface card | |
| AR01SLV1XA | 1-Port VDSL2 over POTS WAN Interface Module |
Table 3?shows the comparison between AR1220E and AR0M12VWBA00.
| Model | AR1220E | AR0M12VWBA00 |
| WAN Speed with Services | 400 Mbit/s | 200 Mbit/s |
| Fixed WAN Ports | 2 x GE Combo | 2 x GE |
| Fixed LAN Ports | 8 x GE (can be configured as WAN interfaces) | 8 x FE (can be configured as WAN interfaces) |
| Slots |
SIC slots: 2 WSIC slots (default/max): 0/1 |
|
| Memory | 1 GB | 512 MB |
