Product Details:
|
| Name: | C9300X 24Y A | Model: | C9300X 24Y A |
|---|---|---|---|
| Type: | Network Switch | Uplinks: | Modular |
| Warrranty: | 1 Year | Shipping: | DHL&FeDex |
| Product Type: | Module | Software: | Network Advantage |
| Model: | Accessory | ||
| Highlight: | Modular Uplinks Catalyst 9300,24-port Catalyst 9300,25G/10G/1G Catalyst 9300 |
||

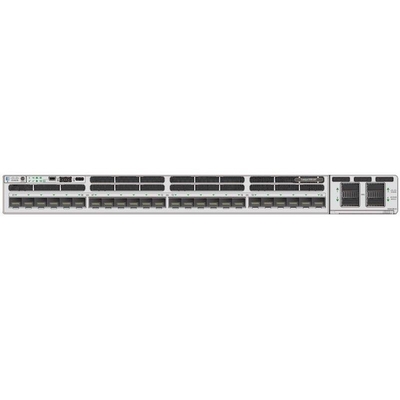

The Cisco Catalyst 9300 Series switches are Ciscos lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch. The Catalyst 9300 Series is designed for Cisco StackWise technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower, which delivers high-density Power over Ethernet Plus (PoE+), 60W Cisco Universal Power over Ethernet (Cisco UPOE) and 90W Cisco UPOE+ ports.
Table 1 shows the Quick Specs.
| Product Code | C9300X-24Y-A |
| Product Description | Catalyst 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Network Advantage |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 25 Gigabit Ethernet |
| Ports | 24 x 1/10/25 Gigabit SFP28 |
| RAM | 16 GB |
| Flash Memory | 16 GB |
| Interfaces | 24 x 1/10/25GBase-X SFP28 |
Table 2 shows the recommended hardware.
| Model | Description |
| C9300-NM-4G | 9300 Series 4x 1G Network Module |
| C9300-NM-4M | 9300 Series 4 x Multigigabit Network Module |
| C9300-NM-8X | 9300 Series 8x 10G Network Module |
| C9300-NM-2Q | 9300 Series 2x 40G Network Module |
| C9300-NM-2Y | 9300 Series 2x 25G Network Module |
| STACK-T1-50CM= | 50CM Type 3 Stacking Cable |
| STACK-T1-1M= | 1M Type 3 Stacking Cable |
| STACK-T1-3M= | 3M Type 3 Stacking Cable |
| SSD-120G | Cisco pluggable USB3.0 SSD storage |
Table 3 shows the comparison.
| Product Code | C9300X-24Y-A | C9300X-24Y-E |
| Product Description | Catalyst 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Network Advantage | Catalyst 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Network Essentials |
| Device Type | Switch - 24 ports - L3 - managed - stackable | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U | Rack-mountable 1U |
| Subtype | 25 Gigabit Ethernet | 25 Gigabit Ethernet |
| Ports | 24 x 1/10/25 Gigabit SFP28 | 24 x 1/10/25 Gigabit SFP28 |
| RAM | 16 GB | 16 GB |
| Flash Memory | 16 GB | 16 GB |
| Interfaces | 24 x 1/10/25GBase-X SFP28 | 24 x 1/10/25GBase-X SFP28 |
