Product Details:
|
| Name: | WS C3560CX 8TC S | Feature Set: | IP Base |
|---|---|---|---|
| Ports: | 8 X 10/100/1000 Gigabit Ethernet | Uplink Interfaces: | 2 X 1G Copper Plus 2 X 1G SFP |
| Warrranty: | 1 Year | Shipping: | DHL&FeDex |
| Forwarding Bandwidth: | 16 Gbps | RAM: | 512 MB |
| Payment: | TT/paypal | ||
| Highlight: | 8 Port Compact Switch,Cisco Catalyst 8 Port Compact Switch |
||
Cisco Catalyst 3560-CX series WS-3560CX-8TC-S Gigabit Ethernet managed switches is comprised with 8 x Gigabit Ethernet ports, 2 x Gigabit Ethernet RJ-45 uplinks and 2 x SFP uplinks.

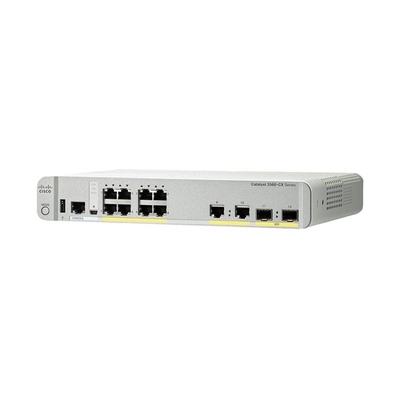

Figure 1 shows the appearance of WS-C3560CX-8TC-S.
Table 1 shows the Quick Specs.
| Product Code | WS-3560CX-8TC-S |
| Feature Set | IP Base |
| Uplink Interfaces | 2 x 1G copper plus 2 x 1G SFP |
| Ports | 8 x 10/100/1000 Gigabit Ethernet |
| Forwarding Bandwidth | 16 Gbps |
| Switching Bandwidth (full-duplex capacity) | 32 Gbps |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| Dimensions | 4.44 x 26.9 x 21.3 cm |
Figure 2 shows the front panel of WS-C3560CX-8TC-S.
Note:
| ① | Mode button | ⑤ | 8 x 10/100/1000 ports |
| ② | USB Type A port | ⑥ | 2 x 1G copper |
| ③ | RJ-45 Console Port | ⑦ | SFP module slots |
| ④ | USB mini-Type B (console) port | ⑧ | Switch LEDs |
· Switch LEDs include SYST, STAT, SPEED LEDs and Console LED.
Table 2 shows the three LEDs descriptions.
| LED | Color/Port Mode | Description |
|
SYST (System LED) |
Off | System is not powered on. |
| Green | System is operating normally. | |
| Amber | System is receiving power but is not operating properly. | |
| STAT | Port status | The port status. This is the default mode. |
| SPEED | Port speed | The port operating speed: 10, 100, or 1000 Mb/s. |
The console LEDs show which console port is in use.
If you connect a cable to a console port, the switch automatically uses that port for console communication. If you connect two console cables, the USB-mini console port has priority.
Table 3 shows the Console LED description.
| LED | Color | Description |
| RJ-45 console port | Green |
RJ-45 console port is active. USB-mini console port LED is not active. |
| Off |
Port is not active. USB-mini console port is active. |
|
| USB-mini console port | Green |
USB-mini console port is active. RJ-45 console port LED is not active. |
| Off |
Port is not active. RJ-45 console port is active. |
Table 4 shows some recommended cables.
| Models | Descriptions |
| CAB-CONSOLE-USB | Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B |
| CAB-CONSOLE-RJ45 | Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F |
| Models | WS-3560CX-8TC-S | WS-3560CX-8PC-S |
| Uplinks | 2 x 1G copper plus 2 x 1G SFP | 2 x 1G copper plus 2 x 1G SFP |
| Ports | 8 x 10/100/1000 Gigabit Ethernet | 8 x 10/100/1000 Gigabit Ethernet |
| Feature set | IP Base | IP Base |
|
PoE Output Ports |
N/A | 8 PoE+ |
| Available POE Power | N/A | 240W |
